Description
Product type |

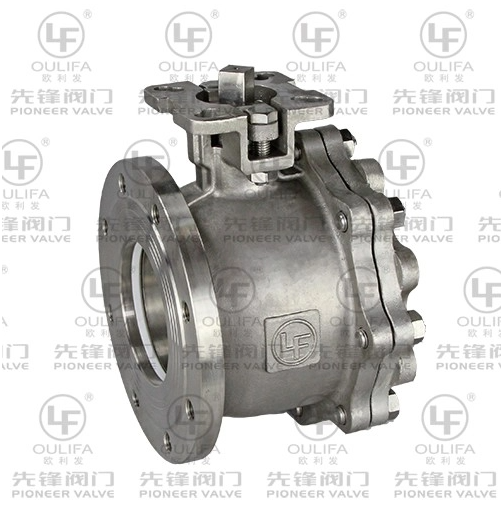

Wafer Type flanged Ball Valve With ISO Pad |
|---|---|
Model |
PSQ72F/ PSQ672F/ PSQ972F |
Nominal diameter |
NPS 1/2”~NPS 6” (DN15~DN150) |
Operating pressure |
PN16, 150Lb |
Body Material |
WCB, CF8, CF8M, CF3M etc |
Trim material |
304, 316, 316L |
Seat seal material |
PTFE, PPL, RTFE, PEEK or metal hard seal etc. |
Connecting end |
Flange |
Design standard |
GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face |
Pioneer’s Standard |
End Connection |
GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test |
GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device |
Handle, worm gear, signal, pneumatic, electric actuator |
Design Feature |
1) ISO 5211 Direct Mounting Platform 2) Investment Casting Body 3) Blowout Proof Stem 4) Optional Anti-static Device 5) Optional Locking Device Handle 6) Optional O-port, V-port, Curved Port, Rectangular port |
Our wafer type flanged ball valve with ISO pad is a precision-engineered, one-piece fluid control solution built for space-constrained industrial systems that demand reliable on/off and flow regulation performance. Manufactured via investment casting for consistent structural integrity, this valve uses a rotating ball with a precision-machined orifice to control fluid flow, with an ultra-compact wafer design that fits seamlessly between standard pipeline flanges. The integrated ISO 5211 direct mounting pad eliminates the need for custom brackets or adapters when installing pneumatic or electric actuators, simplifying automation integration and reducing installation time and cost. Customizable orifice profiles (O-port, V-port, curved port, rectangular port) allow the valve to be tailored to precise flow control requirements for diverse process applications.
The integrated, industry-standard ISO 5211 mounting pad ensures universal compatibility with mainstream pneumatic and electric actuators, enabling plug-and-play automation integration without costly custom fabrication, reducing project lead times and installation complexity.
The investment-cast one-piece body delivers an ultra-short, lightweight footprint, ideal for pipelines with limited installation space. The short distance between the valve seat and end flanges minimizes dead space and media retention, reducing the risk of contamination and buildup, especially for fibrous or particle-laden fluids.
The valve features a blowout-proof stem for maximum operational safety, with optional anti-static devices and locking handle mechanisms for secure, compliant operation in regulated environments. Customizable orifice profiles enable precise flow tuning, while a range of seat seal options (including metal hard seals) deliver reliable performance in harsh, corrosive, or high-temperature applications.
Our wafer thin ball valve is a versatile solution for a wide range of industrial sectors, including:
Chemical processing and pharmaceutical manufacturing
Food & beverage production and biotechnology facilities
Pulp & paper, metallurgy, and shipbuilding operations
Liquid detergent, cosmetic, and grease manufacturing
Vacuum systems and fluid automation processes handling soft particles or fibrous liquids
For process engineering teams, fluid system integrators, and industrial facility operators, Pioneer Valve delivers high-performance, cost-effective fluid control solutions built to global quality standards. Our ISO 5211 mounting pad ball valves are precision-manufactured with strict quality control at every production stage, with full customization options to match your unique pipeline specifications, media compatibility, and automation needs. We provide dedicated technical support, flexible order terms, and reliable global delivery, ensuring your project runs on schedule and your systems deliver consistent, long-term performance.
The integrated ISO 5211 pad enables direct, tool-free mounting of standard pneumatic and electric actuators, eliminating the need for custom brackets, reducing installation costs, and simplifying automation upgrades.
We offer fully customizable orifice profiles, including O-port, V-port, curved port, and rectangular port designs, to match your precise on/off or flow regulation requirements.
Yes, our wafer type flanged ball valve is engineered for reliable performance in vacuum systems, alongside standard positive pressure process pipelines.
We offer a range of seat seal materials, including PTFE, PPL, RTFE, PEEK, and metal hard seals, to accommodate corrosive, high-temperature, and abrasive process media.
