Description
Product type | Direct Mounting Jacket Ball Valve |
|---|---|
Model | PBQ73F-16P |
Nominal diameter | DN15~DN150 |
Operating pressure | PN16, 150Lb, JIS10K |
Body Material | WCB, CF8, CF8M, CF3M, A105, F304, F316, F316L etc |
Trim material | 304, 316, 316L |
Seat seal material | PTFE, PPL, RTFE, PEEK etc. |
Connecting end | Flange |
Design standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face | Pioneer’s design or your requirement |
End Connection | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device | Handle, worm gear, pneumatic, electric actuator |
Design Feature | 1) Flange Hole Can Be Thread Drilling or Through-hole 2) Steam Connection Optional threaded or flange 3) Optional Anti-static Device 4) Optional V-Port Control 5) Design as customer’s requirement |

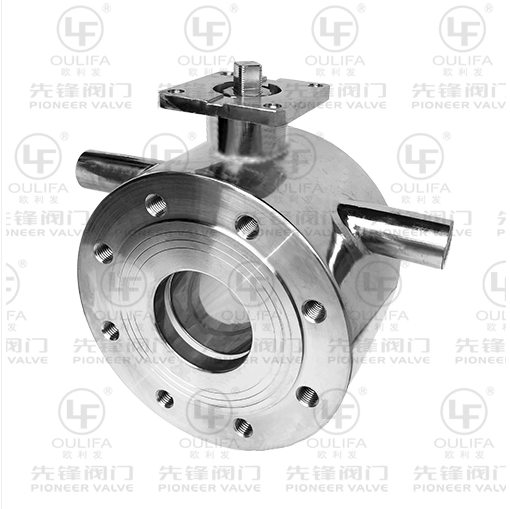

Our Direct Mounting Jacket Ball Valve is purpose-built for industrial processes that require consistent heating or cooling of media to prevent solidification, crystallization, or viscosity changes. This insulation jacket ball valve features a full-enclosure jacket structure that circulates steam, hot water, or cooling media around the valve body, maintaining a stable temperature for the process medium to ensure unobstructed flow. The valve uses a precision-machined rotating spherical core to deliver reliable on-off and flow control, while the integrated ISO mounting pad enables direct, hassle-free installation of pneumatic or electric actuators for automated process control. Unlike standard ball valves, this model eliminates cold spots and medium retention, making it ideal for handling high-viscosity or easily solidified media.
The valve’s optimized jacket design delivers uniform, full-coverage heating or cooling, with a large-volume insulation cavity to maintain consistent media temperature. This structure prevents solidification of sensitive media in normal atmospheric conditions, reducing downtime and maintenance costs for industrial operations.
This jacket ball valve for pneumatic actuator features a standard ISO direct mounting pad, eliminating the need for custom brackets or modification when installing pneumatic or electric actuators. This design streamlines installation, reduces assembly time, and delivers a compact footprint for automated process systems.
The valve’s compact wafer-type structure minimizes the distance between the valve seat and end flanges, reducing medium retention and eliminating dead zones in the flow path. This design delivers superior sealing performance, extended service life, and easier cleaning for processes that require strict hygiene standards. Additional customizable features include threaded or through-hole flange ports, threaded or flange steam connections, anti-static devices, and V-port control trim.
This high temperature jacket ball valve is engineered for industrial processes handling easily solidified or high-viscosity media, with common applications including food and confectionery manufacturing (chocolate, edible grease), petrochemical processing (benzene, molten sulfur), road and construction engineering (asphalt, bitumen), polymer and chemical production (wax, polyurethane, resin, fatty alcohol), and cosmetic manufacturing.
We are a trusted fluid control solution provider for industrial operators worldwide, with fully customizable direct mounting jacket ball valve configurations to meet your unique process requirements. Every valve is manufactured in strict compliance with global design and testing standards, with in-house quality inspections aligned with GB/T 26480, API 598, and other industry specifications. Our dedicated engineering team provides end-to-end support, from custom design to after-sales service, to ensure optimal performance for your specific application. For inquiries, contact our team at +86 (577) 86838999 or email pioneertrade@163.com.
It is specifically engineered for media that easily solidifies or fails to flow at normal atmospheric temperature, including chocolate, grease, benzene, molten sulfur, asphalt, wax, polyurethane, resin, and fatty alcohol.
The integrated ISO direct mounting pad supports seamless installation of manual handles, worm gears, pneumatic actuators, and electric actuators, making it suitable for both manual operation and fully automated industrial process systems.
Our jacket ball valve is designed and manufactured in strict accordance with GB/T 12237, ASME B16.34, JIS B2071, and DIN 3357 standards, with end connections and pressure testing compliant with leading global industry specifications.
