Description

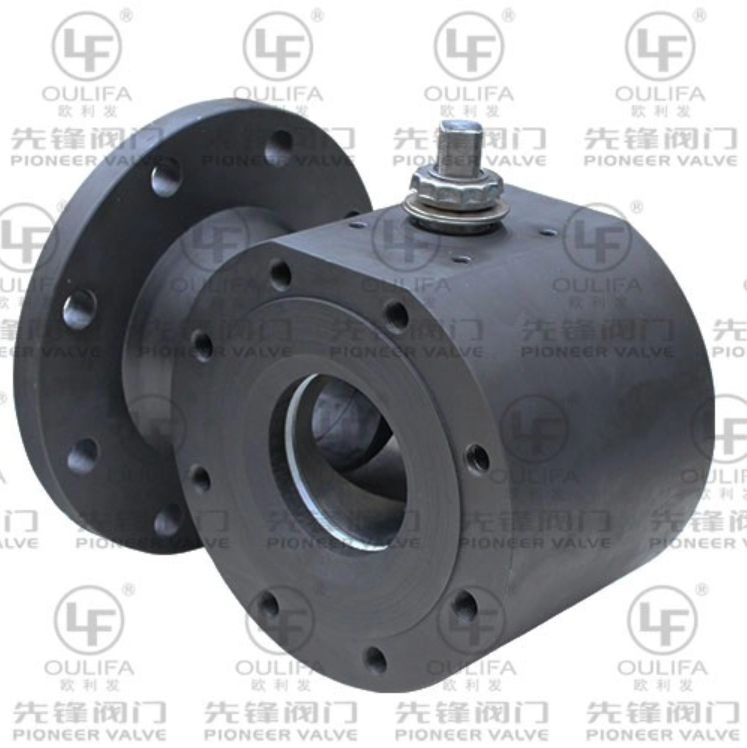

Our L-Port 3-Way Ball Valve is a compact, high-efficiency flow control solution engineered for precise media diversion, switching, and merging in complex industrial piping systems. As a premium wafer-type ball valve variant, it features an ultra-slim framework, minimal flange-to-seat distance, and optimized flow path to reduce channel retention, enhance sealing reliability, and extend service life. It is the go-to flow control component for industrial business clients seeking flexible, durable, and low-maintenance valve solutions for diverse process applications.
Product type | L-Port 3-Way Ball Valve |
|---|---|
Model | SQ74F/ SQ75F/ SQ15F |
Nominal diameter | NPS 1”~NPS 8” (DN25~DN150) |
Operating pressure | PN16~PN160, 150Lb~600Lb |
Body Material | A105, F304, F316, F316L etc |
Trim material | 304, 316, 316L |
Seat seal material | PTFE, PPL, RTFE, PEEK etc. |
Connecting end | Flange/ Thread |
Design standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face | Pioneer’s Design Standard |
End Connection | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device | Handle, worm gear, signal, pneumatic, electric actuator |
Design Feature | 1) Optional Anti-static Device 2) Design as customer’s requirement |
The industrial L-Port 3-Way Ball Valve is designed to manage media flow across multiple pipelines, with a core working principle centered on a 90-degree rotating ball with an L-shaped flow bore. As the ball rotates, it redirects media between two or three ports, enabling seamless line switching, flow diversion, or media merging. Its wafer-type ultra-compact design minimizes the distance between the valve seat and flange end, creating a smooth, low-resistance flow path that reduces media buildup. The full-bore design accommodates even media with solid particles and fibrous materials without clogging, and it is fully compatible with automated flow control systems and vacuum applications.
The space-saving slim design reduces installation footprint, making it ideal for piping systems with tight spatial constraints. Its lightweight structure simplifies installation and maintenance, cutting labor costs and system downtime.
The optimized flow path eliminates dead zones and minimizes channel retention, preventing blockages from solid particles or fibrous media. The precision-machined ball and seat deliver zero-leak sealing even in harsh operating conditions, extending the valve’s service life and reducing maintenance needs.
The L-port flow path can be easily configured for duplex 3-way operation, adapting to diverse flow control needs including diversion, switching, and merging. This versatility eliminates the need for multiple single-way valves, simplifying system design and reducing overall project costs.
Optional anti-static devices are available to mitigate explosion risks in hazardous environments, while fully customizable design options allow the valve to be tailored to your exact media, pressure, and temperature requirements.
This 3-way flow diversion ball valve is widely deployed in chemical processing, pharmaceutical manufacturing, food & beverage production, lube oil processing, biotechnology, detergent manufacturing, metallurgy, paper making, shipbuilding, and vacuum system applications. It excels in processes requiring automated flow regulation, media line switching, and handling of particle-laden or fibrous liquids.
Pioneer Valve is a trusted provider of industrial flow control solutions for process facility operators worldwide. Every L-Port 3-Way Ball Valve is manufactured to strict international standards, with full pre-delivery testing to ensure reliable performance in the field. We offer full custom engineering support, from material selection to design modifications, to match your unique application needs. Our responsive sales and technical team provides fast inquiry responses, transparent project timelines, and dedicated after-sales support, ensuring a seamless partnership from design to delivery.
The L-shaped bore design enables precise redirection of media between multiple pipelines, making it ideal for flow switching, diversion, and merging in complex industrial fluid systems, replacing multiple 2-way valves to simplify system design.
Yes, its streamlined, low-retention flow path minimizes clogging risks, making it highly suitable for handling media with smooth solid fragments and fibrous liquids, while maintaining consistent sealing performance.
Our L-Port 3-Way Ball Valve offers a wide operating pressure range from PN16 to PN160, and 150Lb to 600Lb, supporting low, medium, and high-pressure industrial applications.
