Description
Engineered for industrial process engineers, procurement specialists, and system integrators, our Stainless Steel Jacketed Wafer Ball Valve (also referenced as ultra-short insulated ball valve) is a precision-built flow control solution designed to meet the strictest global industry standards. Tailored for industrial processes requiring precise temperature regulation and minimal heat loss, this valve solves common pain points including medium crystallization, solidification, and line blockages, while cutting energy consumption and boosting overall system thermal efficiency for long-term operational cost savings.
Product type | Jacketed Wafer Ball Valve |
|---|---|
Model | BQ73F-150Lb |
Nominal diameter | NPS 1/2”~NPS8” (DN15~DN150) |
Operating pressure | PN16, 150Lb, JIS10K |
Body Material | WCB, CF8, CF8M, CF3M, A105, F304, F316, F316L etc |
Trim material | 304, 316, 316L |
Seat seal material | PTFE, PPL, RTFE, PEEK etc. |
Connecting end | Flange |
Design standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face | Pioneer’s design or your requirement |
End Connection | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device | Handle, worm gear, pneumatic, electric actuator |
Design Feature | 1) Flange Hole Can Be Thread Drilling or Through-hole 2) Steam Connection Optional threaded or flange 3) Optional Anti-static Device 4) Design as customer’s requirement |

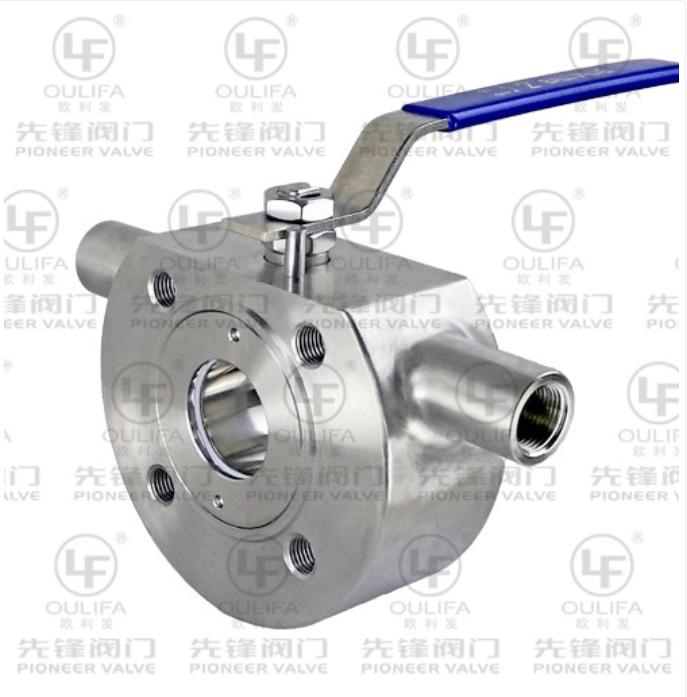

This jacketed wafer ball valve features an integrated ultra-short wafer-style structure, centered around a fully enclosed thermal jacket design. During operation, heat transfer media (steam, thermal oil, hot water) circulate continuously through the jacket cavity surrounding the valve body, delivering uniform, consistent heating to the valve cavity, ball, seat, and all wetted components. This maintains the process medium at a stable, preset temperature, eliminating crystallization, solidification, and viscosity spikes caused by temperature drops. The valve’s floating ball core completes full open/close cycles via 90-degree rotation, with a smooth, low-resistance flow path, while the wafer mounting design minimizes installation footprint, making it ideal for compact pipeline layouts.
The proprietary ultra-short insulated ball valve structure minimizes the valve body’s external contact area, cutting heat loss to the lowest possible level. This drastically improves system thermal efficiency, reduces long-term energy consumption, and delivers measurable cost savings for continuous industrial operations.
An optimized internal flow path design drastically reduces medium holdup within the valve body, eliminating waste of high-value process media, preventing scale buildup and blockages, ensuring smooth long-term operation, and boosting overall production efficiency.
Crafted from top-tier industrial materials, this valve withstands high pressure and extreme temperature fluctuations, delivering reliable on-off control for corrosive chemical media, high-viscosity fluids, and easily solidifiable materials, with a service life well above industry averages.
We offer full dimensional and functional customization, including threaded or through-hole flange holes, threaded or flanged steam connection ports, optional anti-static devices, and custom face-to-face dimensions to perfectly match your unique pipeline requirements.
This Stainless Steel Jacketed Wafer Ball Valve is widely deployed in industrial sectors with strict temperature control requirements, including petrochemical, fine chemical, food and beverage processing, pharmaceutical and biotech, asphalt production and transportation, grease processing, HVAC heating systems, and resin and plastics manufacturing. It is the critical control component for pipelines carrying easily solidifiable, high-viscosity, and heat-sensitive media.
Pioneer Valve is a professional industrial valve manufacturer with decades of expertise delivering high-performance valve solutions to industrial clients worldwide. Every jacketed wafer ball valve we produce undergoes strict quality inspection and performance testing prior to delivery, ensuring full compliance with international standards. We provide end-to-end technical support, from initial parameter selection to after-sales service, and full customization to match your unique working conditions, including pressure, temperature, medium, and connection requirements. With a complete in-house production system and expert R&D team, we deliver reliable, efficient, and cost-effective valve solutions for your critical industrial operations.
Yes. Beyond our standard design, we support fully customized face-to-face dimensions to align with your pipeline layout and installation requirements.
We offer four flexible actuation options: manual handle, worm gear, pneumatic actuator, and electric actuator, to meet both manual and automated control needs.
This valve is ideal for high-viscosity, easily crystallizable, heat-sensitive media including asphalt, paraffin, resin, grease, and various corrosive chemical media, when paired with compatible body and seal materials.
