Description
For industrial procurement professionals, engineering design teams, and fluid system operators, our split body wafer type ball valve (Model: SQ72F-600Lb) delivers reliable, compact, and customizable fluid control solutions for diverse industrial piping systems. Engineered with a super-short body design and industry-leading sealing performance, this valve is the ideal choice for modern industrial fluid automation.
Product type | Split Body Wafer Type Ball Valve |
|---|---|
Model | SQ72F-600Lb |
Nominal diameter | NPS 3/8”~NPS 6” (DN10~DN150) |
Operating pressure | PN16~PN160, 150Lb~600Lb |
Body Material | A105, F304, F316, F316L etc |
Trim material | 304, 316, 316L |
Seat seal material | PTFE, PPL, RTFE, PEEK etc. |
Connecting end | Flange |
Design standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face | Pioneer’s Design Standard |
End Connection | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device | Handle, worm gear, signal, pneumatic, electric actuator |
Design Feature | 1) Optional one piece Monoblock or two piece Split Body 2) Flange Hole Can Be Thread Drilling or Through-hole 3) Optional O-port, V-port, Curved Port, Rectangular port 4) Optional Anti-static Device 5) Design as customer’s requirement |

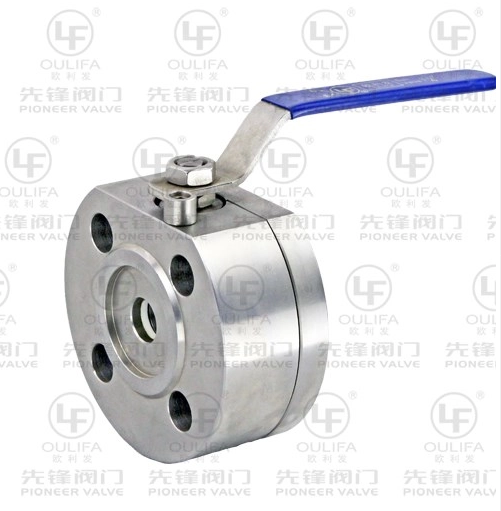

Our flanged compact wafer ball valve is a space-saving, high-efficiency fluid control device with a split body design, featuring an ultra-short face-to-face dimension that minimizes installation footprint. The valve operates via a 90-degree rotational motion of the ball core: rotating the ball aligns the orifice with the pipeline for full flow, or rotates it to block the pipeline for tight shut-off. The ball orifice can be customized to O-port, V-port, curved port, or rectangular port structures, enabling both on-off control and precise flow regulation for automated fluid systems. The short distance between the valve seat and end flange reduces medium retention, eliminating dead zones and reducing the risk of cross-contamination in sensitive applications.
Flexible Body Configuration: Optional one-piece monoblock or two-piece split body design to match different maintenance and installation requirements
Customizable Flow Control: Tailorable ball orifice designs to meet precise flow regulation needs for diverse media and operating conditions
Superior Sealing & Long Service Life: High-performance seat seal materials ensure zero leakage, with a robust structure that extends service life even in harsh working environments
Versatile Installation Compatibility: Flange holes can be configured as thread drilling or through-hole, with optional anti-static devices for safety compliance
Full Customization Support: Fully customizable design to meet unique project specifications and operating parameters
Our split body wafer type ball valve is widely used across demanding industrial sectors, including chemical processing, pharmaceuticals, food and beverage, grease manufacturing, biotechnology, liquid detergent production, metallurgy, paper making, and shipbuilding. It is also suitable for vacuum field applications, and can handle media containing soft particles and fibrous liquids, making it a versatile solution for nearly all industrial fluid control needs.
With decades of expertise in industrial valve manufacturing, Pioneer Valve delivers rigorously tested, standards-compliant fluid control products for global clients. We offer end-to-end customization support, from material selection to actuation configuration, with a professional engineering team ready to assist with project-specific requirements. Our valves are manufactured in strict accordance with international standards, with full inspection and testing documentation provided for every order. We also offer fast response to inquiries, flexible delivery terms, and dedicated after-sales support to ensure seamless operation of your fluid systems.
Yes, we offer fully customizable ball orifice designs including O-port, V-port, curved port, and rectangular port structures to meet precise flow regulation needs, along with tailored flange hole configurations, material options, and actuation solutions.
Our split body wafer ball valve supports operating pressures ranging from PN16 to PN160, and 150Lb to 600Lb, covering most low, medium, and high-pressure industrial fluid system applications.
Yes, our compact flanged wafer ball valve is designed, manufactured, and tested in strict accordance with GB, ASME, JIS, and DIN international standards, ensuring full compatibility with global industrial piping systems.
