Description
Developed for vacuum system engineers, semiconductor manufacturing specialists, and precision process procurement teams, our Electromagnetic Right Angle Vacuum Valve (also known as electromagnetic high vacuum angle valve) is an advanced flow control solution engineered for exceptional performance in high and ultra-high vacuum environments. Built to meet the strictest cleanliness and reliability standards for critical industrial processes, this valve delivers fast, precise on-off control of vacuum airflow, with integrated vacuum disinfection capabilities to support sterile, contamination-free operations.
Scope Of Application |
105~6.7×10-7Pa |
|---|---|
Valve Leakage Rate |
≤1.3×10-7Pa.L/S |
Medium Temperature |
-30~+150ºC |
Coil Temperature Rise |
≤50ºC |
Opening And Closing Time |
≤1s |
Power Supply |
Generally：AC220V, AC110V, Optional: DC24V, DC12V |
Installation Status |
Any |
Working Frequency |
≤6 times/min |
Power Consume |
Start An Instant ≤ 2000w, Maintain ≤ 10w. |
Pressure Difference At Opening |
DN16~40:≤0.11MPa |
Body、Disc |
Stainless Steel |
Seal |
Bellows |

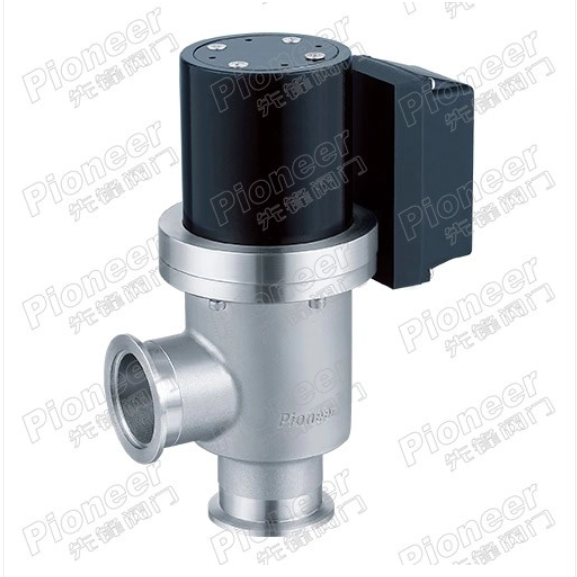

This electromagnetic right angle vacuum valve is a GDC-J series solenoid-actuated control device, purpose-built to connect or cut off vacuum airflow in vacuum pipelines with unmatched precision. The valve adopts a right-angle flow path design, with an electromagnetic actuation system as its core driving component. When energized, the solenoid coil generates electromagnetic force to lift the valve disc, opening the flow path for unobstructed airflow within the vacuum system; when de-energized, the valve disc resets rapidly via spring force, tightly closing the flow path to isolate the vacuum section. The integrated bellows seal structure fully isolates the internal vacuum cavity from the external actuator, eliminating internal leakage and ensuring long-term stable vacuum degree maintenance. The valve’s built-in vacuum disinfection function effectively eliminates contaminants in the vacuum chamber, maintaining a sterile, high-cleanliness environment for mission-critical processes.
Engineered for high and ultra-high vacuum environments, the valve delivers industry-leading low leakage rates, with a bellows seal structure that eliminates internal and external leakage risks, ensuring stable vacuum degree control even during long-term continuous operation.
With a full open/close cycle of ≤1 second, the valve provides immediate response to vacuum system control signals, enabling accurate pressure regulation and preventing damage to sensitive components within the vacuum system.
An optimized control circuit limits coil temperature rise to ≤50℃ during continuous operation, with ultra-low holding power consumption (≤10W), reducing energy costs and extending the service life of the solenoid coil.
Full stainless steel wetted parts and built-in vacuum disinfection technology effectively sterilize the vacuum chamber and eliminate contaminants, making it ideal for high-cleanliness and sterile processes in semiconductor and biopharmaceutical industries.
Supports a wide range of power supply options, compatible with 50Hz/60Hz power sources, and can be installed in any orientation without performance impact, enabling seamless integration into existing vacuum systems.
This Electromagnetic Right Angle Vacuum Valve is widely deployed in industrial sectors with strict vacuum and cleanliness requirements, including semiconductor manufacturing, biopharmaceutical and biotechnology, vacuum coating equipment, scientific research laboratories, vacuum heat treatment, electronic component production, solar panel manufacturing, and industrial vacuum packaging. It is the core control component for all types of high-vacuum pipeline systems.
Pioneer Valve is a trusted industrial valve supplier specializing in high-precision vacuum valves for critical industrial processes. Every electromagnetic high vacuum angle valve we produce undergoes rigorous vacuum performance testing and leakage inspection prior to delivery, ensuring full compliance with global industry standards. Our in-house R&D team can fully customize valve parameters to match your unique vacuum system requirements, from power supply specifications to size and material options. We provide full-cycle technical support, from pre-sales selection to after-sales maintenance, delivering reliable, long-lasting vacuum control solutions for your high-precision industrial operations.
Yes. The valve is engineered to support installation in any direction, with no impact on its performance or sealing capability, making it easy to adapt to complex vacuum system layouts.
Yes. In addition to standard AC220V and AC110V power supplies, we offer optional DC24V and DC12V configurations to meet the needs of low-voltage control systems.
The maximum recommended working frequency is ≤6 times per minute, which fully meets the control needs of most industrial vacuum systems.
