Ball Valves
Ball valves are a type of quarter - turn valves that manage the flow of various fluids or gases by means of a rotating ball featuring a bore. They are extensively utilized in numerous fields, attributed to their remarkable durability, excellent sealing performance and user - friendly operation mode.
What is a ball valve?
Types of Ball Valves
Wafer Type Ball Valve
Easy to install between two pipe flanges. Compact design saves space. Allows for quick opening and closing of fluid flow.
Heating Jacket Ball Valve
Features a heating jacket around the valve body. Maintains fluid temperature in cold environments. Ensures smooth flow of viscous or crystalline-prone media.
Tank Bottom Ball Valve
Specifically designed for tank bottom. connections Facilitates efficient draining and filling operations. Ensures tight sealing to prevent leaks.
3-Way Ball Valve
Has three ports for fluid inlet and outlet. Enables flow diversion and mixing. Allows precise control of fluid direction in complex piping systems.
Flanged Ball Valve
Equipped with flanges for easy installation and maintenance. Provides strong and reliable connection. Suitable for high-pressure and high-temperature applications.
1PC-2PC-3PC Ball Valve
1PC is one-piece design for small bore applications. 2PC is two-piece design for general use. 3PC is three-piece design for easy maintenance and repair in various piping systems.
V-port Ball Valve
Features a V-shaped port for precise flow control. Allows for adjustable flow rates. Suitable for applications requiring throttling and regulation.
Sanitary Ball Valve
Designed for sanitary applications in food, beverage and pharmaceutical industries. Smooth inner surface prevents product contamination. Easy to clean and sterilize.
High Pressure Ball Valve
Built to withstand high pressure conditions. Ensures reliable performance in high-pressure systems. Maintains sealing integrity under extreme pressure differentials.
Key Features of Ball Valve
Here are the key features of PIONEER VALVE's ball valves. They are easy to operate and offer reliable shut-off. They are durable and versatile for various applications.
Quick and Easy Operation
Simple design with handle or lever. Spherical ball with hole enables rapid shut-off or control.
Reliable Shut-Off
Spherical ball aligns with flow path when closed. Minimizes leakage chances.
Minimal Pressure Drop
Low pressure drop when fully open. Ensures smooth fluid or gas flow in high-flow applications.
Bi - Directional Flow
Designed for both forward and reverse flow applications.
Precision Control
Some use V-port or characterized ball for accurate flow rate control.
Reduced Friction
Low friction compared to other valves. Can reduce wear and energy consumption.
Durability
Made from materials like stainless steel, brass or PVC. Resists corrosion and wear.
Versatility
Suitable for water, oil, gas, steam and corrosive chemicals. Used in petrochemical, water treatment and other industries.
Low Maintenance
Simple structure requires minimal maintenance. Long service life with proper installation and operation.
Ball Valve Working Principles
Below is a concise list of the basic working principles of Pioneer Valve's ball valve:
> Rotary Control: Rotate the ball 90 degrees around its axis to control fluid flow. When the ball's hole aligns with the fluid channel, the valve opens; when perpendicular, it closes.
> Component Collaboration: The valve stem connects the actuator and the ball. The O - ring on the valve seat helps prevent leakage. The valve body supports and protects internal parts.
> 2 - way Function: The most common type. The handle parallel to the pipeline means the valve is open; perpendicular means it's closed. Fluid flows straight from input to output.
> 3 - way Function: The ball's hole is L - shaped or T - shaped. L - shaped allows fluid to flow from one input port to one output port while blocking another. T - shaped permits fluid to flow from one input port to two output ports or vice versa.
> 90 - degree Ball Valve: The two ports are at a 90 - degree angle, suitable for specific piping layouts and fluid control requirements.
> One - piece Valve Body: The valve body parts are connected by pressing or welding and cannot be disassembled for cleaning or maintenance. Suitable for low - demand applications.
> Two - piece Valve Body: Can be disassembled for cleaning, maintenance and inspection, usually connected by threads. But it needs to be completely removed from the pipeline to separate.
> Three - piece Valve Body: More expensive and connected by bolts. It can be maintained without removing the entire valve from the pipeline, suitable for high - demand applications requiring frequent maintenance.
Ball Valve Components: A Detailed Breakdown
Valve Body
> The main structural part of the ball valve, used to connect to the pipeline and withstand system pressure.
> Common materials: carbon steel, stainless steel, brass, plastic, etc.
> Types: one - piece, two - piece, and three - piece structures, which affect ease of maintenance and sealing performance.
Ball
> The core component that controls the flow of fluids.
> The surface is typically precision - machined and chrome - plated to improve smoothness and corrosion resistance.
> Can be divided into floating ball and trunnion (fixed ball) structures, designed to suit different pressure ratings and operating conditions.
Seat
> The annular component that forms the seal by contacting the ball.
> Common materials: PTFE (Polytetrafluoroethylene), RPTFE (Reinforced PTFE), metal (used for high - temperature or abrasive media).
> Plays a crucial role in sealing performance, and its quality directly affects the valve’s service life.
Stem
> The shaft that connects the actuator or handle to the ball, controlling the rotation of the ball.
> Must have good tensile strength and corrosion resistance.
> High - end ball valves are equipped with an anti - blowout design to ensure safety during operation.
Packing & Gasket
> Includes packing seals (such as V - type PTFE packing) and gaskets that connect the valve body, preventing external leakage.
> For applications with frequent operation or high - temperature conditions, the seal material must be carefully selected to ensure compatibility.
Operating Device (Handle / Actuator)
> Manual ball valves are equipped with a handle, allowing a 90° rotation to open or close the valve.
> Automatic control systems are fitted with electric or pneumatic actuators to enable remote or smart control.
Explore Ball Valve Solutions
Applications of Ball Valve
PIONEER VALVE Ball Valves are versatile components with diverse applications across multiple industries. Here's an overview of their key use cases:

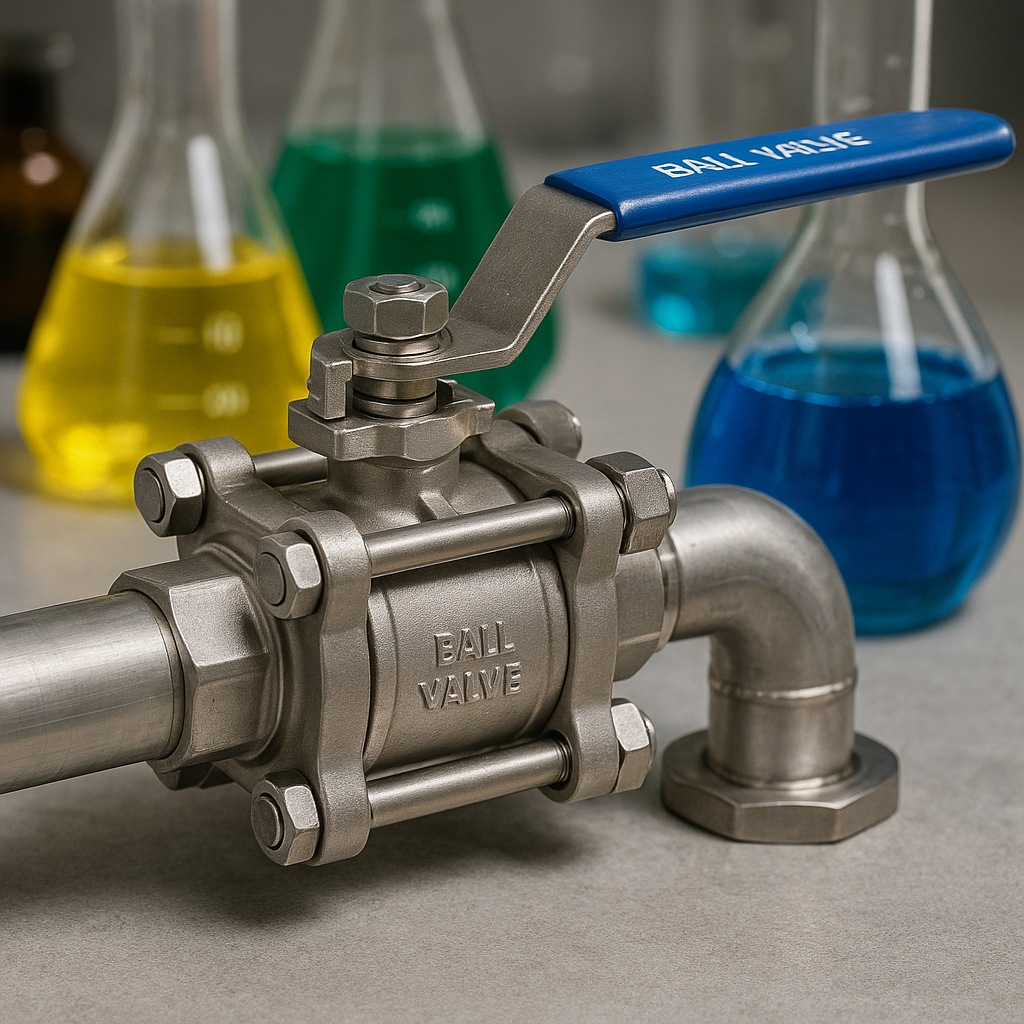

Chemical industry
Used for controlling fluid flow in pipelines transporting chemicals. Ensures safe and efficient handling of various chemical substances during production processes.
Pharmaceutical sector
Facilitates the transfer of liquid and gaseous media in pharmaceutical manufacturing. Maintains strict hygiene standards and precise flow control for quality product production.

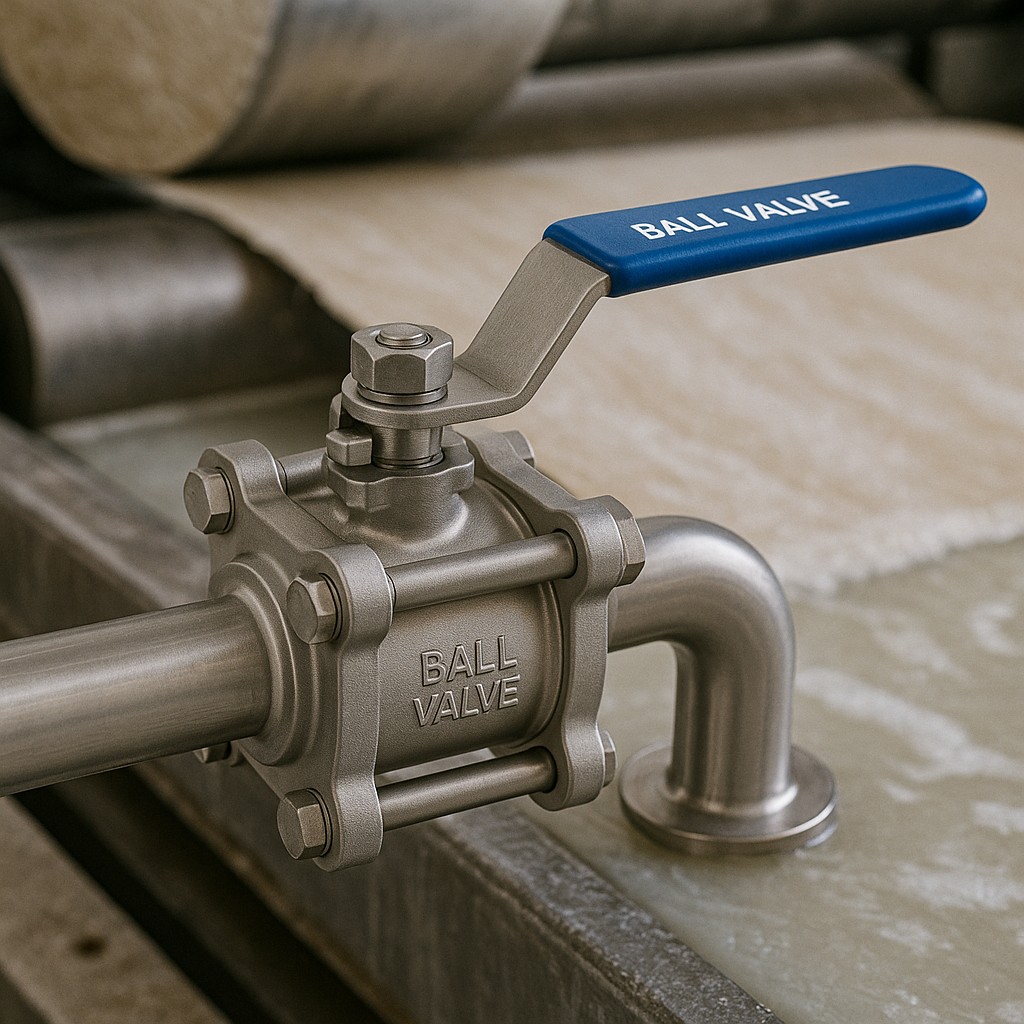

Paper making
Manages the flow of pulp and water mixtures. Operates reliably in the harsh environment of paper production lines to ensure smooth operation.

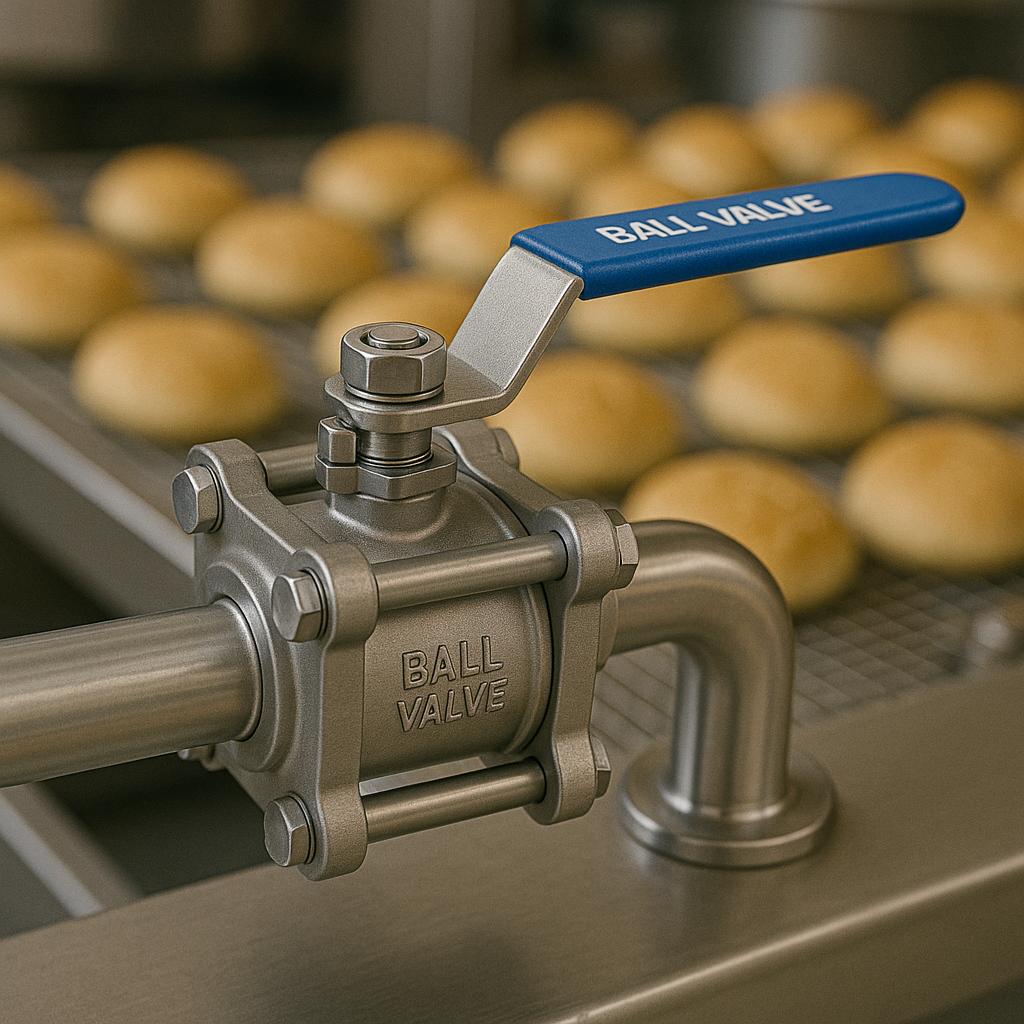

Food and beverage
Regulates the flow of ingredients and products in processing lines. Guarantees food safety and meets industry-specific requirements for clean and sanitary operations.

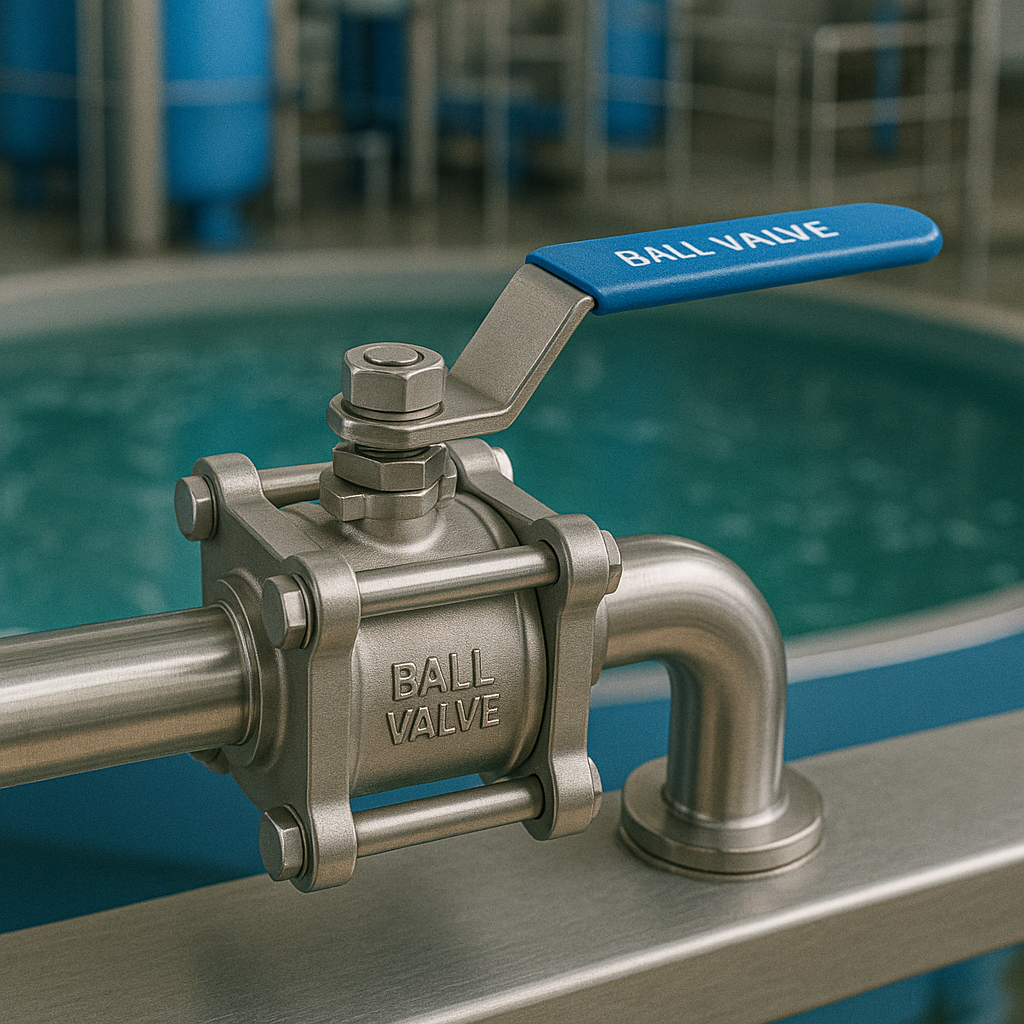

Water treatment
Controls water flow in filtration, purification, and distribution systems. Contributes to the efficient treatment and supply of clean water to communities.

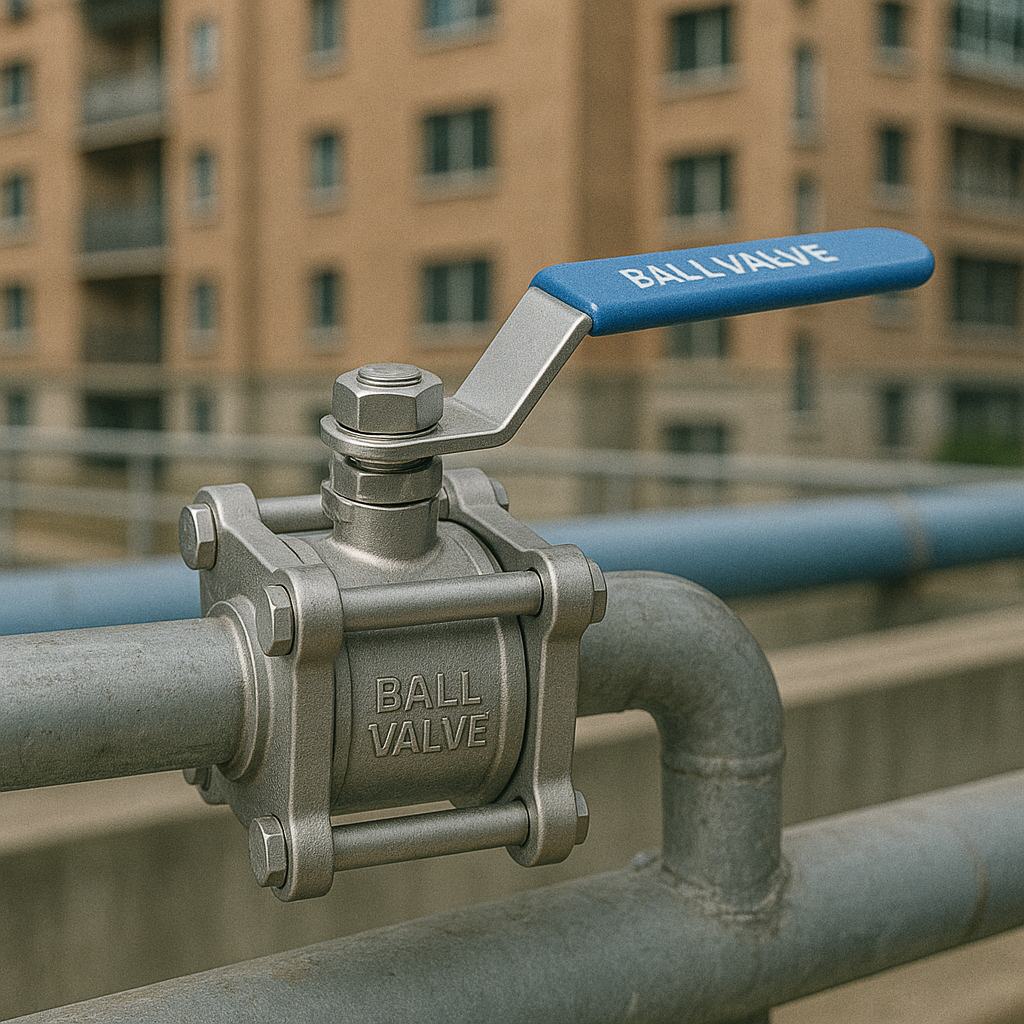

Urban construction
Applied in water supply and drainage systems of buildings. Enables reliable management of water and wastewater flows for urban infrastructure.
Considerations when choosing a Ball Valve
When selecting a ball valve for your specific needs, several key factors must be considered. Here's a comprehensive list of considerations to help you make an informed choice:
Ball Valve Knowledge Center: Quick Answers to Common Questions
When is a ball valve open?
ball valve is open when the handle aligns with the pipe and closed when perpendicular. It requires a 90-degree rotation to switch between positions.
What is a ball valve?
How to install a ball valve?
Can ball valves fail?
What can a ball valve be used for?
