Description
Our Wafer Type Compact Ball Valve is a high-performance flanged compact flow control device with an ultra-short body design, engineered for modern industrial pipeline systems. Built to meet stringent global manufacturing standards, this valve minimizes medium retention, delivers superior sealing performance, and offers extended service life, making it an ideal flow control solution for diverse industrial process applications.
Product type | Wafer Type Compact Ball Valve |
|---|---|
Model | SQ71PPL/ SQ72PPL |
Nominal diameter | NPS 3/8”~NPS 6” (DN10~DN150) |
Operating pressure | PN16~PN160, 150Lb~600Lb |
Body Material | A105, F304, F316, F316L etc |
Trim material | 304, 316, 316L |
Seat seal material | PTFE, PPL, RTFE, PEEK etc. |
Connecting end | Flange |
Design standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to face | Pioneer’s Design Standard |
End Connection | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation device | Handle, worm gear, signal, pneumatic, electric actuator |
Design Feature | 1) Optional one piece Monoblock or two piece Split Body 2) Flange Hole Can Be Thread Drilling or Through-hole 3) Optional O-port, V-port, Curved Port, Rectangular port 4) Optional Anti-static Device 5) Design as customer’s requirement |
The Wafer Type Compact Ball Valve operates via a 90-degree rotation of a precision-machined ball core, driven by manual or automated actuators to achieve on-off control, throttling, and automatic fluid regulation. Its ultra-short body design reduces the distance between the valve seat and end flange, drastically cutting medium retention and lowering the risk of media contamination in sensitive processes. The ball orifice can be customized to O-port, V-port, curved port, or rectangular port structures, allowing precise flow control tailored to specific process requirements. Its wafer-style compact footprint also makes it perfect for pipelines with limited installation space.
This valve offers optional one-piece Monoblock or two-piece split body structures, with flange holes available in thread drilling or through-hole formats to match diverse installation needs. Full customizability ensures the valve aligns perfectly with your unique working parameters.
An optional anti-static device eliminates static accumulation risks, making the valve suitable for flammable and explosive media applications. High-performance seat seal materials deliver superior leak-tight performance, reducing downtime and maintenance costs.
Constructed from high-grade industrial materials, the valve is compatible with a wide range of corrosive and non-corrosive media, including those with soft particles and fibrous liquids. Its robust build ensures extended service life even in continuous operation.
Our stainless steel wafer ball valve is widely adopted across critical industrial sectors, including chemical processing, pharmaceutical manufacturing, food and beverage production, grease processing, biotechnology, liquid detergent production, metallurgy, paper making, and shipbuilding. It also delivers exceptional performance in vacuum field applications.
Pioneer Valve is a trusted manufacturer of high-performance industrial flow control solutions, with our one-piece compact ball valve engineered to meet strict international quality standards. We offer full customization to match your specific working pressure, temperature, media, and connection requirements, with flexible actuator configurations for manual and automated systems. Every valve undergoes rigorous inspection and testing compliant with API 598, GB/T 26480, and other global standards, ensuring consistent reliability. Our dedicated technical and marketing teams provide end-to-end support for your custom project needs.
Our flanged wafer ball valve is available in nominal diameters from NPS 3/8” to NPS 6” (DN10 to DN150), covering most common industrial pipeline specifications.
Yes, we offer full customization of the ball orifice structure, body materials, flange hole types, and optional anti-static devices to match your unique process requirements.
We support a full range of actuation solutions, including manual handle, worm gear, signal feedback, pneumatic, and electric actuators, to fit all industrial control system needs.
Product Description

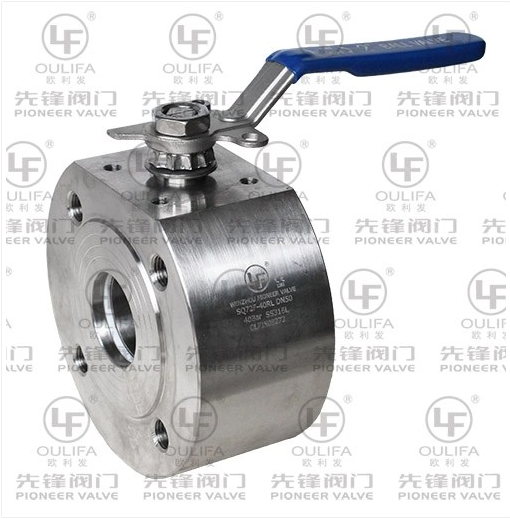

Wafer type compact ball valve is a flanged compact ball valve with super-short body design, have short distance between the valve seat and the end flange, less medium retention, superior sealing performance and long service life etc. Ball orifice can make as customer’s requirement to be O-port, V-port, curved port and rectangular port structure thus control the flow operation.
Wafer type ball valve widely used in chemicals, pharmaceuticals, food and beverage, grease, biotechnology, liquid detergent, metallurgy, paper making, shipbuilding etc, can transport the medium like soft particles and Fibrous liquid then automatically adjust the fluid operating and also used in vacuum field. Wafer type ball valve is an ideal valve for modern industry.
