Description

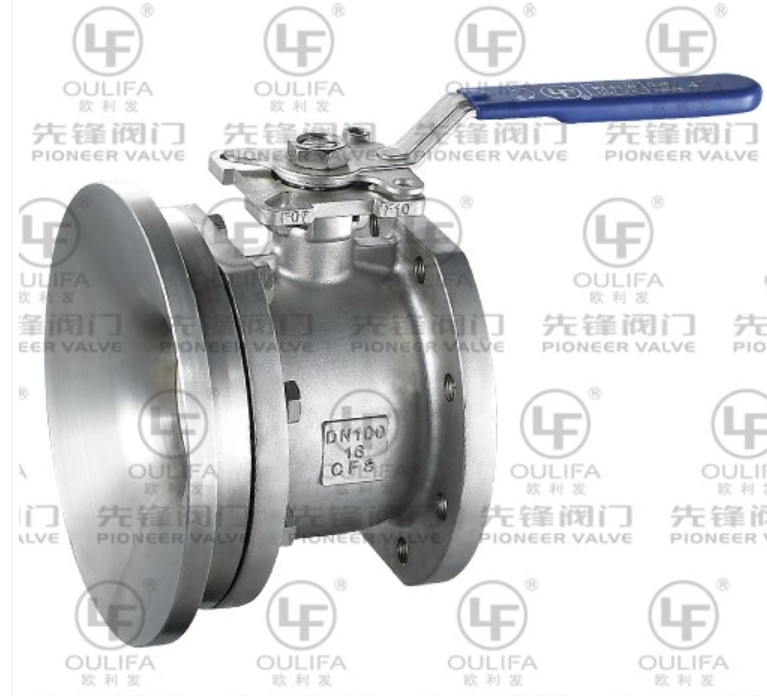

Tank mounted flush bottom ball valves are specialized industrial valves designed for efficient and complete discharge of media from reactors, tanks, vessels and containers. These valves feature a unique surface-engineered inlet flange that allows direct welding and flush mounting at the lowest point of process equipment. The smooth tapered bore and ultra-short distance between the valve ball and tank bottom eliminate media accumulation at the entrance, ensuring smooth and complete discharge of even viscous or solid-laden fluids.
Our flush bottom ball valves are engineered with an ISO 5211 direct mounting platform, enabling straightforward actuator installation without the need for additional mounting brackets. This design reduces installation time and minimizes potential leak points. Manufactured to the highest international standards, these valves deliver reliable performance in demanding industrial environments where product purity and process efficiency are critical.
Parameter | Details |
|---|---|
Product Type | Flush Bottom Ball Valve |
Model | PGQ41F/11F/6c1F/81F/8k1F |
Nominal Diameter | NPS 1/2" × NPS 8" (DN15-DN200) |
Operating Pressure | PN16, 150Lb, JIS10K |
Body Material | CF8, CF8M, CF3M, F304, F316, F316L etc. |
Trim Material | 304, 316, 316L |
Seat Seal Material | PTFE, PPL, RTFE, PEEK etc. |
Connecting End | Flange, Thread, Welding, Tri-Clamp, Quick Coupling etc. |
Design Standard | GB/T 12237, ASME B16.34, JIS B2071, DIN 3357 |
Face to Face | Pioneer's design or customer's requirement |
End Connection Standard | GB/T 9113, ASME B16.5, JIS B2212, DIN 2542 |
Inspection and Test | GB/T 26480, API 598, JIS B2003, DIN 3230 |
Operation Device | Handle, pneumatic, electric actuator |
The flush bottom ball valve operates on the quarter-turn principle, where a hollow ball with a through bore rotates 90 degrees to control fluid flow. When the valve is open, the bore aligns perfectly with the tank outlet, creating an unobstructed flow path. When closed, the ball rotates to block the flow completely.
The unique flush-mounted design positions the valve body directly at the tank bottom, eliminating any dead space where media could accumulate. The smooth tapered inlet ensures that even viscous materials, slurries or products with solid particles flow freely without getting trapped. This design prevents cross-contamination between batches and simplifies cleaning procedures, making these valves ideal for hygienic applications.
The most significant advantage of our flush bottom ball valves is their zero dead space configuration. The valve ball sits extremely close to the tank bottom, and the smooth tapered bore ensures complete drainage of process media. This eliminates product waste, reduces cleaning time, and prevents bacterial growth in hygienic applications.
All our flush bottom ball valves come standard with an ISO 5211 direct mounting platform. This allows for quick and easy installation of pneumatic or electric actuators without the need for custom brackets or adapters. The direct mount design also ensures precise alignment between the actuator and valve stem, improving reliability and reducing maintenance requirements.
We offer a wide range of optional features to meet specific application requirements:
Anti-static device for flammable media applications
Purge ports for cleaning and sterilization
Heating jackets for viscous media that require temperature control
Body cavity fillers to prevent media entrapment
Inclined stem design for improved accessibility in tight spaces
Our tank mounted flush bottom ball valves are widely used across various industrial sectors where efficient and complete fluid discharge is essential. Typical applications include:
Pharmaceutical reactors and processing equipment
Food and beverage processing tanks
Cosmetics and personal care product vessels
Chemical mixing plants and storage tanks
Bioreactors and fermentation systems
Industrial containers and process vessels
These valves are particularly well-suited for applications requiring frequent batch changes, strict hygiene standards, or handling of viscous, abrasive or solid-laden media.
When you choose our tank mounted flush bottom ball valves, you benefit from over a decade of experience manufacturing high-quality industrial valves for industrial facilities worldwide. All our valves are manufactured in our state-of-the-art facility using premium materials and advanced production techniques.
We adhere strictly to international design and testing standards, ensuring that every valve meets or exceeds industry performance requirements. Our comprehensive quality control process includes pressure testing, leak testing and dimensional inspection for every product before shipment.
We also offer extensive customization options to meet your specific application needs, including custom materials, special end connections and tailored design features. Our dedicated technical support team is available to assist with valve selection, installation and maintenance, ensuring optimal performance throughout the valve's service life.
A flush bottom ball valve is specifically designed for mounting at the bottom of tanks, reactors and vessels to provide complete and efficient discharge of process media. Unlike standard valves, they eliminate dead space where media can accumulate, making them ideal for applications requiring complete drainage and easy cleaning.
Our flush bottom ball valves are available in a range of high-quality materials including CF8 (304 stainless steel), CF8M (316 stainless steel), CF3M (316L stainless steel), F304, F316 and F316L. We also offer various seat seal materials including PTFE, PPL, RTFE and PEEK to suit different media and temperature requirements.
Yes, all our flush bottom ball valves are designed with an ISO 5211 direct mounting platform, making them compatible with a wide range of pneumatic and electric actuators. This allows for easy automation to suit your process control requirements. We can also supply valves pre-assembled with actuators for plug-and-play installation.
