Description

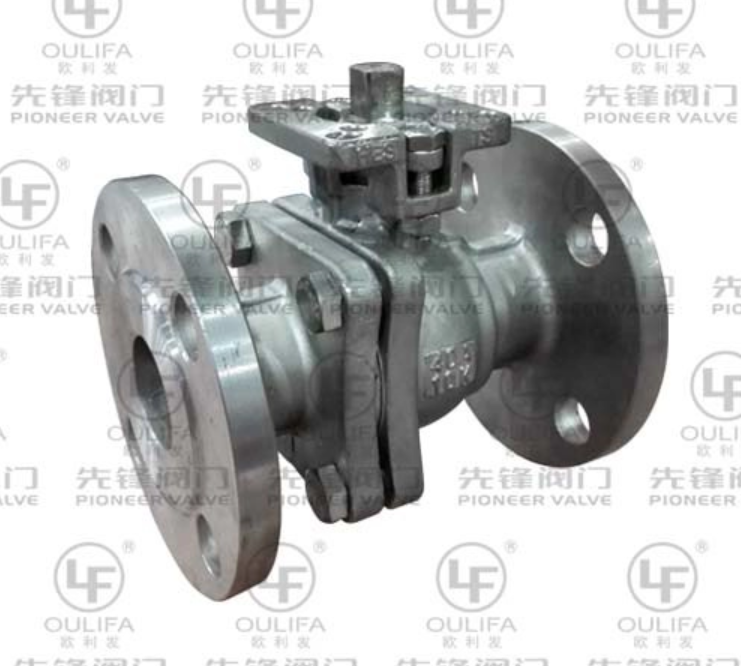

The JIS 10K flanged ball valve is a high-performance fluid control device designed specifically for industrial pipeline systems. Manufactured in strict accordance with Japanese Industrial Standards, this valve provides reliable shut-off and directional control of various media in demanding operating conditions. Its robust construction and user-friendly design make it suitable for both horizontal and vertical pipeline installations, and it can be easily equipped with pneumatic or electric actuators for automated operation.
Available in sizes from DN15 to DN200 (NPS 1/2" to NPS 8") and pressure ratings up to JIS 20K, our Q41F-10K model offers exceptional versatility for a wide range of industrial applications. The valve features a floating ball design that ensures tight sealing even at low pressures, and it is available with multiple body and seat materials to handle corrosive, abrasive, and high-temperature media.
Parameter | Details |
|---|---|
Product Type | JIS Flange End Ball Valve |
Model | Q41F-10K |
Nominal Diameter | NPS 1/2" × NPS 8" (DN15 × DN200) |
Operating Pressure | JIS 10K - 20K |
Body Material | WCB, CF8, CF8M, CF3M |
Trim Material | 304, 316, 316L |
Seat Seal Material | PTFE, PPL, RTFE, PEEK |
Connection End | Flange |
Design Standard | JIS B2071 |
Face to Face Dimension | JIS B2002 |
End Connection Standard | JIS B2212, JIS B2214 |
Inspection and Test Standard | JIS B2003 |
Operation Device | Handle, worm gear, signal, pneumatic, electric actuator |
The JIS 10K flanged ball valve operates on a simple yet effective quarter-turn mechanism. The valve consists of a spherical ball with a central bore that rotates 90 degrees around its axis to control the flow of media through the pipeline.
When the valve is in the open position, the bore of the ball aligns perfectly with the pipeline, allowing unobstructed flow of the medium with minimal pressure drop. When the handle or actuator is turned 90 degrees, the ball rotates so that its solid side faces the pipeline, completely blocking the flow and creating a tight seal.
The floating ball design allows the ball to move slightly downstream under pressure, pressing against the downstream seat and enhancing the sealing performance. This self-sealing feature ensures reliable operation even in high-pressure applications.
Floating ball design provides bi-directional sealing
Multiple seat material options for different media and temperatures
Low operating torque ensures smooth operation even after long periods of inactivity
Precision-machined body and components for long service life
Corrosion-resistant materials available for harsh environments
Reinforced flange connections prevent leakage under high pressure
Optional direct mounting platform for easy actuator installation
Optional anti-static device prevents electrostatic discharge
Optional V-port ball for precise flow regulation
Custom designs available to meet specific customer requirements
Compact design saves space in pipeline systems
Can be installed in both horizontal and vertical orientations
Simple disassembly for inspection and maintenance
Interchangeable parts reduce maintenance costs
Our JIS 10K flanged ball valves are widely used in various industrial sectors where reliable fluid control is essential. Typical applications include:
Chemical Processing: Handling acids, bases, solvents, and other corrosive chemicals
Petrochemical Industry: Controlling the flow of oil, gas, and petroleum products
Water Treatment: Municipal water supply, wastewater treatment, and desalination plants
Food and Beverage: Processing lines for beverages, dairy products, and food ingredients
Pharmaceutical Manufacturing: Clean and sterile fluid control systems
Shipbuilding and Marine: Ballast systems, fuel lines, and cooling water systems
Pulp and Paper: Chemical processing and wastewater treatment in paper mills
Environmental Protection: Air pollution control systems and waste management facilities
Refrigeration and HVAC: Refrigerant lines and heating/cooling systems
As a leading manufacturer of industrial valves, we are committed to providing high-quality products and exceptional service to our industrial customers worldwide.
Strict Quality Control: All our valves undergo rigorous testing in accordance with JIS B2003 standards to ensure reliable performance
Extensive Product Range: We offer a complete line of ball valves in various sizes, pressure ratings, and materials
Customization Capabilities: Our engineering team can design and manufacture valves to meet your specific requirements
Fast Delivery: We maintain a large inventory of standard products to ensure prompt delivery
Technical Support: Our experienced engineers provide comprehensive technical assistance and after-sales service
Competitive Pricing: We offer high-quality valves at competitive prices without compromising on performance
The maximum operating temperature depends on the seat material. PTFE seats are suitable for temperatures up to 150°C, PPL seats up to 200°C, and PEEK seats up to 260°C. For higher temperature applications, please contact our technical team for recommendations.
Yes, our JIS 10K flanged ball valves are suitable for controlling the flow of both liquid and gas media, including water, solvents, acids, natural gas, oxygen, and hydrogen peroxide.
JIS 10K and ANSI 150Lb are both pressure rating standards, but they are not directly interchangeable. JIS 10K corresponds to approximately 1.0 MPa (145 psi), while ANSI 150Lb corresponds to approximately 2.0 MPa (290 psi). The flange dimensions and bolt patterns also differ between the two standards.
Yes, we offer both pneumatic and electric actuated versions of our JIS 10K flanged ball valves. The valves can be supplied with a direct mounting platform for easy actuator installation, and we can provide complete valve-actuator assemblies ready for installation.
Standard valves are usually in stock and can be shipped within 3-5 working days. Custom orders typically take 2-4 weeks depending on the complexity of the requirements. Please contact our sales team for specific lead time information.
