High Platform Flanged Ball Valve Chemical Plants

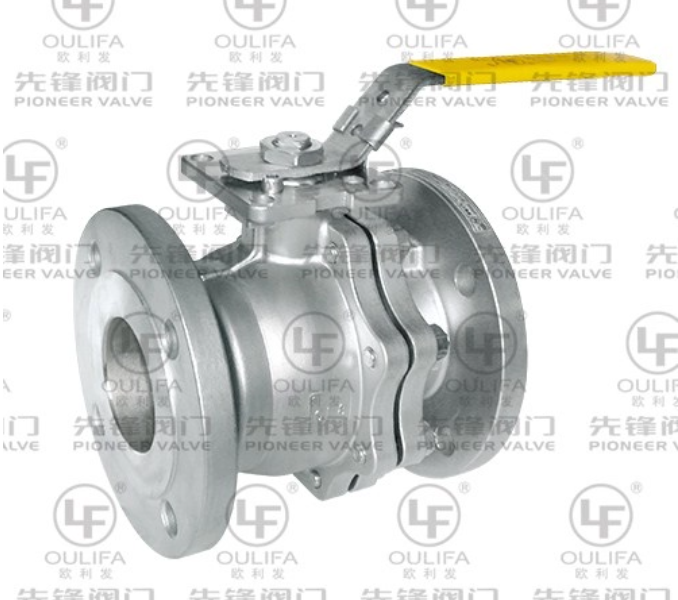

The high platform flanged ball valve (model PQ41F) is a premium industrial valve engineered with an ISO 5211 direct mounting pad for seamless actuator integration. This flanged ball valve with direct mounting pad is designed to cut off or regulate medium flow in pipelines, offering reliable performance in both horizontal and vertical installations. Its robust construction and versatile design make it an ideal choice for demanding industrial environments where precision and durability are critical.

Key Specifications

Product Overview & Working Principle

The PQ41F ball valve features a quarter-turn design where a hollow ball rotates 90 degrees around the stem axis to open, close or throttle the flow. When the ball's bore aligns with the pipeline, the valve is fully open, providing unobstructed flow. When rotated 90 degrees, the solid side of the ball blocks the flow completely, creating a tight seal.

The integrated ISO 5211 platform eliminates the need for additional brackets and couplings, simplifying actuator installation and reducing maintenance costs. This chemical plant ball valve is precision manufactured using investment casting techniques, ensuring a smooth internal surface that minimizes flow resistance and prevents media buildup.

Core Advantages & Design Features

ISO 5211 Direct Mounting Pad: Enables quick and easy installation of pneumatic and electric actuators, reducing assembly time and improving system reliability.

Investment Casting Body: Provides superior dimensional accuracy and structural integrity, eliminating casting defects and ensuring long-term performance.

Blowout Proof Stem: Features a special design that prevents the stem from being ejected under high pressure, enhancing operational safety.

Optional Anti-static Device: Dissipates static electricity generated during operation, making the valve suitable for flammable and explosive media.

Optional V-port Adjusting: Allows precise flow regulation, making the valve suitable for both on-off and throttling applications.

Optional Locking Device Handle: Prevents unauthorized operation, ensuring process safety in industrial facilities.

Typical Application Industries

The industrial flanged ball valve is widely used in industries that handle corrosive, abrasive and high-pressure media, including:

Daily chemical and fine chemical processing

Biochemical and biotechnology

Pharmaceutical manufacturing

Shipbuilding and marine engineering

Papermaking, printing and dyeing

Coating and paint production

Environmental protection and water treatment

Food and beverage processing

Urban construction and infrastructure

Why Choose Pioneer Valve?

Pioneer Valve is a leading manufacturer of high-quality industrial valves with decades of experience serving industrial clients worldwide. Our high platform flanged ball valves are manufactured in strict accordance with international standards, ensuring consistent performance and reliability. We offer comprehensive customization options to meet specific project requirements, including special materials, pressure ratings and connection types. Our dedicated technical support team provides expert assistance from product selection to after-sales service, ensuring your operations run smoothly.

FAQs

Can this valve be used for both on-off and throttling applications?

Yes, the standard PQ41F valve is suitable for on-off service. For precise throttling applications, we recommend the optional V-port ball design.

What is the maximum operating temperature for this valve?

The maximum operating temperature depends on the seat seal material. PTFE seats are suitable for temperatures up to 150°C, while PEEK seats can handle temperatures up to 260°C.

Can the valve be installed in any orientation?

Yes, the high platform flanged ball valve can be installed in both horizontal and vertical pipelines without affecting performance.
