Industrial piping systems rely entirely on precise fluid management. A single failure in isolation can trigger catastrophic system shutdowns or environmental hazards. Improper valve specification leads directly to fugitive emissions, unacceptable pressure drops, and accelerated system wear. Operators often overlook internal valve geometry during the design phase. They default to standard configurations without analyzing the specific media characteristics.
This oversight severely compromises long-term operational reliability. Structural geometry, port configurations, and seating materials dictate how fluid behaves inside the pipe. You must evaluate these factors rigorously to ensure system integrity. Mismatched components cause rapid erosion, dangerous cavitation, and eventual seal failure. We need a better approach to component selection.
This article provides a practical framework for evaluating structural designs. We will explore port configurations and seating materials in detail. You will learn how to specify the correct internal geometry for critical flow control applications. Applying these principles ensures safer, more resilient pipeline operations.
Bore geometry directly dictates the flow coefficient Cv and potential pressure drop across the piping system.
Mounting design (floating vs. trunnion) determines sealing reliability across varying pressure differentials.
Seat material selection requires balancing absolute shut-off requirements with media abrasiveness and temperature extremes.
Partnering with an experienced OEM ball valve manufacturer ensures customized dimensional tolerances and certified pressure-testing compliance.

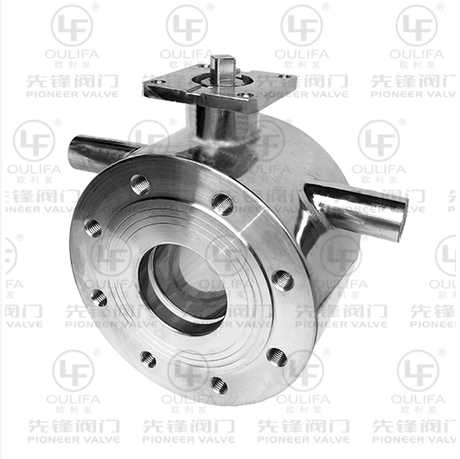

Engineers must match port sizes to specific system velocity requirements. Evaluation focuses entirely on acceptable friction loss and flow volume. A standard Ball Valve comes in various internal bore geometries. Each geometry profoundly influences the flow coefficient Cv. The Cv value represents the volume of water passing through the valve per minute at a one-psi pressure drop. Selecting the wrong bore restricts media passage and strains pumping equipment.

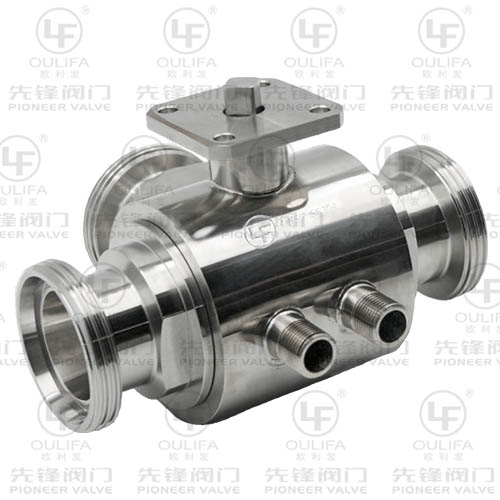

Full port designs feature an internal bore diameter matching the connected pipe perfectly. This creates an unrestricted flow path. Fluid moves through the pipeline without encountering physical bottlenecks. This configuration virtually eliminates internal turbulence. It minimizes pressure drop across the entire system. Operators heavily favor full port models for systems requiring routine cleaning.
Many pipelines utilize mechanical devices called "pigs" to scrape internal walls. A full bore design allows these pigs to pass through the valve body smoothly. Additionally, highly viscous fluids demand full port configurations. Thick liquids lose momentum quickly when forced through narrow openings. Maintaining a consistent internal diameter prevents hazardous material buildup.
Reduced port designs introduce an intentional restriction inside the pipeline. The internal bore is typically one pipe size smaller than the connecting flanges. This reduction creates a localized bottleneck. Reduced ports offer a practical alternative when achieving absolute maximum flow is not strictly critical. They utilize less material during manufacturing. This makes them lighter and physically smaller.
However, you must consider the serious implementation risks. The physical restriction forces fluid to accelerate as it passes through the narrower bore. This sudden acceleration drops localized fluid pressure. If the pressure falls below the fluid's vapor pressure, vapor bubbles form rapidly. When fluid enters the wider downstream pipe, pressure recovers. These bubbles collapse violently. This phenomenon is known as cavitation. Cavitation causes severe structural damage to the valve body and internal piping.
Best Practice: Always calculate the precise Cv requirement before specifying a reduced port model.
Common Mistake: Installing reduced port valves in high-velocity liquid lines without conducting a cavitation risk analysis.
System pressure ratings and physical diameter constraints heavily dictate the mechanical sealing method. You must evaluate how the internal sphere interacts with the sealing rings under dynamic pressure. Two primary mechanical structures dominate the industry: floating and trunnion-mounted designs.
A floating configuration suspends the internal sphere between two polymer seats. It does not anchor the sphere to the bottom of the housing. When closed, upstream line pressure physically pushes the sphere downstream. This lateral movement forces the sphere tightly against the downstream seat. The resulting compression creates a secure mechanical seal.
This mechanism proves highly effective for low-to-medium pressure applications. We frequently use it in smaller diameter pipelines. The simplicity of the floating design makes it highly reliable under standard conditions. However, a critical limitation exists. At extreme high pressures, the lateral force pushing the sphere becomes immense. The sphere presses into the downstream seat aggressively. This excessive friction increases the torque required to rotate the stem. Operators struggle to open or close the line. The extreme friction also accelerates polymer seat wear.
Trunnion-mounted designs solve the high-pressure friction problem fundamentally. Engineers anchor the internal sphere at both the top and bottom using structural pins (trunnions). The sphere rotates strictly on its vertical axis. It cannot move laterally downstream. Instead, internal springs and line pressure push the floating seats inward against the fixed sphere.

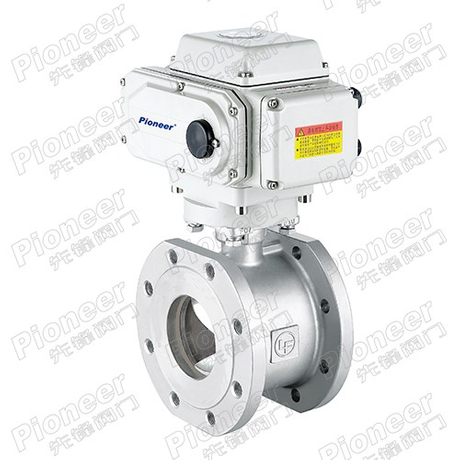

This structural precision ensures stable sealing at extreme high pressures. It performs flawlessly in large-diameter pipelines. Because the sphere does not wedge itself into the downstream seat, operating torque remains low. Lower torque requirements enable operators to install smaller pneumatic or electric actuators. It simplifies automation significantly.
Feature |
Floating Design |
Trunnion-Mounted Design |
|---|---|---|
Anchor Points |
Top stem only |
Top stem and bottom trunnion |
Sealing Action |
Pressure pushes ball into seat |
Pressure pushes seats into ball |
Optimal Pressure |
Low to Medium |
High to Extreme High |
Actuation Torque |
High at elevated pressures |
Consistently lower |
Analyzing media compatibility remains the most critical step in component selection. You must evaluate temperature limits, fluid abrasiveness, and required leakage classes. Industry standards, such as FCI 70-2, categorize allowable leakage rates. Selecting the wrong material guarantees rapid failure. We generally categorize seating options into soft polymers and hardened metals.
Soft polymer seats dominate standard industrial applications. Manufacturers commonly use materials like PTFE (Teflon), PEEK, and Devlon. These thermoplastics deform slightly against the metal sphere. This minor deformation fills microscopic surface imperfections. It delivers reliable, bubble-tight shutoff capabilities. We classify this zero-leakage performance as FCI 70-2 Class VI.
Soft seats remain ideal for clean fluids operating within standard temperature ranges. They handle water, benign gases, and refined petrochemicals beautifully. However, significant operational risks exist. Soft polymers are highly susceptible to extrusion under extreme pressure. The material can deform permanently or squeeze out of its retaining groove. Furthermore, abrasive particulates easily scratch polymer surfaces. Once deeply scratched, a soft seat permanently loses its Class VI sealing capability.
Engineers specify metal-to-metal seating strictly for severe service environments. These applications involve extreme cryogenic temperatures or intense industrial heat. Metal seats also handle highly abrasive media, such as mining slurries or catalyst fines. The seats and the sphere use identical metallic alloys to maintain uniform thermal expansion.
Manufacturers often apply specialized hard-facing coatings to these surfaces. Tungsten Carbide and Chromium Carbide overlays provide exceptional scratch resistance. These coatings easily crush entrained particulates without damaging the sealing surface. The primary trade-off involves shut-off efficiency. Metal seats rarely achieve Class VI bubble-tight status. They generally provide Class IV or Class V shut-off. They allow microscopic amounts of leakage but survive where polymers would instantly vaporize or shatter.
Material Type |
Temperature Limit |
Abrasion Resistance |
FCI 70-2 Shut-off Class |
|---|---|---|---|
Virgin PTFE |
Up to ~400°F |
Poor |
Class VI |
PEEK |
Up to ~500°F |
Moderate |
Class VI |
Tungsten Carbide Coating |
Above 1000°F |
Excellent |
Class IV / V |
Understanding internal flow characteristics during the opening and closing phases is vital. Many operators mistakenly assume all valves can regulate flow volume. This assumption destroys internal components rapidly. You must evaluate the dynamic fluid mechanics occurring precisely when the sphere rotates.
Standard configurations feature a purely spherical internal bore. Manufacturers design these specific units exclusively for absolute isolation. They operate strictly in the fully open or fully closed positions. They are not engineered for precise flow adjustment or continuous throttling.
When you partially open a standard model, you create a narrow, crescent-shaped gap. System pressure forces fluid through this tiny opening at extremely high velocities. This high-velocity jet strikes the downstream polymer seat directly. The kinetic energy erodes the soft material rapidly. It washes away the polymer in a highly uneven pattern. Within weeks, the eroded seat cannot maintain a seal when fully closed. This practice guarantees catastrophic sealing failure.
Engineers utilize specialized V-Port designs when combined isolation and throttling are strictly required. Instead of a standard circular hole, the internal sphere features a precisely machined V-shaped notch. Manufacturers typically offer these notches in 15°, 30°, 60°, or 90° angles.
The V-shaped contour dramatically alters the internal flow characteristic curve. As the sphere rotates, the V-notch exposes the opening gradually. It allows for highly controlled, linear, or equal-percentage flow control. The sharp edges of the V-notch also shear through fibrous materials or suspended solids. This prevents clogs while maintaining exact velocity control. You get the robust sealing power of a traditional design combined with the precision of a control unit.
Procurement must shift its focus from basic technical specifications to comprehensive supplier validation. Sourcing critical components requires mitigating engineering and operational risks. Working directly with a dedicated OEM Ball Valve provider guarantees stricter quality controls. You gain direct access to manufacturing data and custom engineering capabilities.
The precise machining of the spherical element directly limits micro-leaks. The sphere must exhibit perfect roundness. Even microscopic deviations allow high-pressure gas to escape. Elite manufacturers utilize multi-axis CNC machines to achieve exacting geometric tolerances. They polish the spheres to mirror finishes. This reduces operating torque and extends the lifespan of the polymer seating rings.
You must mandate transparent testing protocols before accepting any shipment. Validating mechanical integrity prevents disastrous field failures. A reputable partner welcomes third-party audits and provides comprehensive documentation.
Factory Acceptance Testing (FAT): Ensure the manufacturer conducts rigorous hydro-testing on every unit before shipment.
API 598 and API 6D Compliance: Verify the products meet standard American Petroleum Institute testing criteria for shell strength and seat leakage.
Material Traceability: Demand EN 10204 3.1 certificates. These documents prove the exact chemical composition of the raw steel used in the foundry.
Industrial facilities frequently face spatial constraints when upgrading legacy systems. Older pipelines utilize non-standard face-to-face dimensions. Replacing these components often requires expensive pipe cutting and re-welding. A capable partner provides massive value through customization. They can modify face-to-face dimensions to fit existing pipe gaps perfectly. They engineer custom actuation mounting pads to accommodate legacy pneumatic drives. They develop proprietary seat configurations designed specifically for your unique chemical media. This engineering flexibility simplifies installation and reduces system downtime dramatically.
Selecting the optimal isolation component requires a deep understanding of internal fluid mechanics. Bore size dictates your system's pressure drop and overall flow efficiency. The mounting style, whether floating or trunnion, ensures mechanical reliability against severe pressure differentials. Finally, seat material choice determines whether the unit survives abrasive media and extreme temperatures.
You must base every specification on data-driven system requirements. Never rely on default sourcing habits or identical past purchases without verifying current fluid conditions. Evaluate pressure limits, temperature spikes, and media composition rigorously.
Consult with your internal engineering team immediately to review your active system parameters. Document your exact flow velocity requirements and potential cavitation risks. Reach out to an experienced manufacturing partner to request a specialized quote or a custom technical drawing for your next pipeline upgrade.
A: Cost, weight, and spatial constraints heavily influence this decision. Full port designs require larger housings and more raw material. If a piping system can tolerate a minor pressure drop safely, a reduced port valve offers significant savings in both weight and footprint without compromising overall system integrity.
A: Most standard floating configurations are strictly bi-directional. They seal effectively regardless of fluid flow direction. However, certain trunnion-mounted designs or models equipped with specific pressure-relief mechanisms are uni-directional. You must install these specific units according to the designated flow arrow stamped on the body.
A: No. Using standard configurations for continuous throttling causes rapid seat erosion. High-velocity media aggressively bypasses the partially open internal sphere. This kinetic energy washes away the soft polymer seats unevenly, leading directly to catastrophic sealing failure when closed.
A: Cryogenic or extreme low temperatures cause standard soft seats to shrink rapidly and harden. This thermal contraction creates gaps, leading to dangerous leakage. Low-temperature applications mandate specialized components like internal lip seals, extended bonnets to protect packing, and specific polymer blends like PCTFE.
