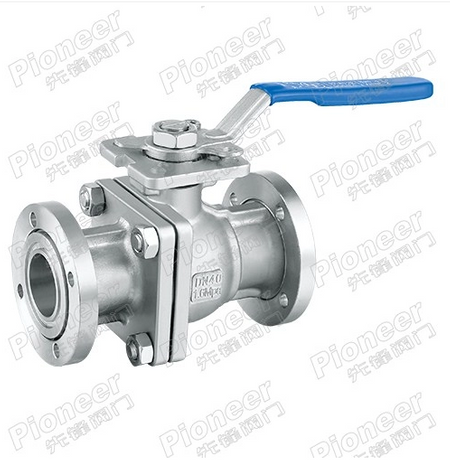

Standard valves handle basic on and off tasks reliably. They often struggle during precise flow modulation. Traditional globe valves provide excellent control accuracy for demanding systems. However, they suffer from significant pressure drops, bulkiness, and rapid wire-draw erosion. You need a better solution for process optimization. A V-port ball valve bridges this complex engineering gap. It integrates a contoured V-notch directly into the internal ball or seat. This geometry delivers linear or equal-percentage flow characteristics. It also maintains the low-friction, high-flow benefits of a rotary quarter-turn design. We wrote this guide specifically for process engineers, plant managers, and procurement teams. You will discover if a premium V-port configuration fits your exact throttling and automation requirements. We will explore core performance benefits, mechanical durability, and critical sizing realities to help you optimize fluid control architecture.
High Turndown Ratio: Delivers up to a 100:1 turndown ratio for exact flow modulation across a 0° to 90° rotation.
Superior Flow Capacity (Cv): Features a pressure recovery coefficient exceeding 80%, providing significantly higher flow capacity than similarly sized globe valves.
Self-Cleaning Shearing Action: The sharp-edged V-notch creates a wedge-shaped shearing effect, cleanly cutting through slurries, fibers, and suspended solids without clogging.
Bubble-Tight Shutoff: Eliminates the need for secondary block valves in the pipeline, streamlining system architecture.
Traditional linear globe valves utilize a vertical stem mechanism. They force fluid through a tortuous, S-shaped internal path. This sharp diversion creates severe turbulence inside the pipe. It often leads to dangerous cavitation and massive pressure drops. Internal trim components face constant, aggressive fluid bombardment. This constant friction causes "wire draw" erosion across the seating surfaces. Engineers constantly battle these destructive physical forces. Replacing eroded internal trims requires frequent system downtime. Maintenance teams spend countless hours rebuilding these complex linear assemblies. You need equipment capable of surviving these harsh internal dynamics.
The V-port design solves this restriction problem beautifully. It allows incoming fluid to pass straight through the body. It essentially acts like a standard ball valve when fully open. Fluid experiences almost zero physical diversion. This straight orientation reduces internal turbulence significantly. It promotes smooth, highly efficient laminar flow. Your pumping stations work less hard to move liquids. Minimized pressure drops translate directly into massive operational energy savings. The pressure recovery coefficient routinely exceeds 80%. This metric far outpaces traditional linear alternatives.
Higher flow coefficients (Cv) give you distinct structural advantages. You can often specify a smaller V-port valve for the exact same job. A bulky 6-inch globe valve might be perfectly replaced by a 4-inch V-port model. This smaller overall footprint saves critical facility space. It demands far less heavy structural pipe support. Pipe racks stay lighter and installation becomes significantly easier. Plant upgrades proceed much faster when you handle lighter equipment.
Comparison Chart: Linear Globe vs. V-Port Design
Engineering Parameter | Traditional Globe Valve | V-Port Quarter-Turn Valve |
|---|---|---|
Internal Flow Path | Tortuous (S-shaped diversion) | Straight-through (Minimal diversion) |
Pressure Drop | High (Significant energy loss) | Low (Promotes laminar flow) |
Flow Capacity (Cv) | Moderate | Exceptionally High |
Cavitation Risk | High susceptibility | Significantly reduced |
Installation Footprint | Bulky, heavy structural demands | Compact, lightweight design |
Specific V-notch geometries define how these rotary valves perform. Manufacturers typically cut the notch at 15°, 30°, 45°, 60°, or 90° angles. These precise angles allow highly incremental port opening. A tiny rotational adjustment yields a predictable, proportional change in flow rate. This creates an ideal equal-percentage flow characteristic. You gain extremely precise control during the initial opening stages. The 15° and 30° options provide incredible micro-flow resolution. The 60° and 90° options balance accurate modulation against higher overall system capacity. Engineers can match the exact notch angle to the unique fluid dynamic requirements.
Flow Characteristic Chart (Typical 60° V-Notch)
Valve Rotation (Degrees) | Opening Percentage | Estimated Flow Capacity (%) |
|---|---|---|
0° | 0% (Fully Closed) | 0% |
20° | 22% | ~5% |
45° | 50% | ~25% |
70° | 78% | ~60% |
90° | 100% (Fully Open) | 100% |
Absolute fluid containment matters just as much as fluid control. These rotary units utilize the proven floating ball principle. Upstream line pressure physically pushes the sphere downstream. It forces the metal sphere tightly against the downstream polymer seat. This mechanical action creates a leak-proof, bubble-tight seal. It works exceptionally well in complex bi-directional applications. Challenging volatile gas systems rely heavily on this secure sealing. It completely removes the necessity for secondary isolation block valves. Your piping architecture becomes simpler, lighter, and far more reliable.
Turndown ratio mathematically measures the span of controllable flow. Standard linear control valves often max out around 30:1 or 50:1. V-port designs push this engineering limit to an impressive 100:1. You can control a tiny chemical trickle or a massive deluge. You do this using one single, highly responsive valve. This extreme flexibility proves invaluable for sensitive chemical dosing. Complex HVAC modulating systems also depend heavily on this expansive range. You manage micro-flow adjustments and full-bore emergency dumping simultaneously.
Severe service conditions destroy ordinary industrial valves quickly. The contoured V-notch features a specialized, sharply machined edge. This aggressive edge interacts directly against the seat during closure. It acts exactly like a heavy-duty precision cutting tool. It cleanly severs thick paper pulp and solid wastewater debris. Highly viscous slurries cannot jam the internal mechanism mid-stroke. The wedge-shaped shearing effect guarantees a smooth, decisive close every time. You avoid dangerous mid-position clogging entirely. This self-cleaning action keeps critical continuous processes running without unexpected manual intervention.
Standard spherical designs rub continuously against the entire circular seat. Segmented V-port variations remove the unnecessary rear parts of the sphere. They operate essentially as a dynamic half-ball structure. This drastically reduces the total mechanical contact area between components. Less physical contact means much lower rotational friction. It dramatically reduces the starting torque required from the pneumatic actuator. Lower friction also extends the overall seat lifespan significantly. The valve modulates faster and survives significantly longer in abrasive environments.
Modern industrial environments demand absolute operational integrity. Volatile petrochemical applications require strict, verifiable compliance measures. High-quality variants integrate several vital engineering safety features to protect personnel.
Anti-blowout stems: These internal designs prevent stem ejection during unexpected, extreme pressure spikes.
Live-loaded packing systems: Belleville washers maintain continuous sealing force across extreme daily temperature fluctuations.
API 607 fire-safe certifications: Graphite secondary seals ensure the valve holds line pressure during a severe plant fire.
These specialized integrations keep your facility personnel safe. They prevent catastrophic environmental leaks and ensure continuous regulatory compliance.
Improper fluid dynamic sizing causes the vast majority of V-port failures. You cannot simply match the nominal pipe size and hope for success. Oversizing the unit leads to extremely poor control resolution. The oversized valve will only operate in the first 10-20% of its rotation. It hunts constantly, vibrating aggressively, and wears out the actuator linkage. Undersizing causes the exact opposite engineering nightmare. Fluid velocity spikes drastically through the restricted port. This excessive velocity triggers severe internal cavitation and premature seat destruction. You must rely on accurate flow coefficient calculations.
Standard soft seats offer excellent bubble-tight sealing but possess strict limits. PTFE or Teflon seals generally max out around 180°C (356°F). Higher process temperatures melt, extrude, or permanently deform these soft polymers. If your refining process runs hotter, you must adapt your specification. Engineers must specify metal-seated variants for applications reaching up to 343°C (650°F). For extreme thermal conditions nearing 500°C (932°F), specialized ceramic-core internals become absolutely mandatory. Ceramic components provide incredible heat resistance and excellent self-lubricating properties.
These V-notched designs excel in roughly 90% of industrial control scenarios. They offer robust continuous performance and excellent flow value. However, we must remain entirely transparent about their absolute mechanical limits. Ultra-critical, micro-precision loop control demands absolute linear perfection. Extremely high-pressure drop scenarios create violent internal sheer forces. In these rare 10% edge cases, you may still need highly specialized, multi-stage globe valves. Recognize your exact physical process constraints before committing to a specific architecture.
Moving from technical evaluation to actual procurement requires careful vendor selection. Partnering with a proven, dedicated OEM ball valve manufacturer matters greatly. Off-the-shelf standard angles rarely fit every complex fluid process perfectly. The right manufacturing partner provides highly customized V-notch geometries. They tailor these specific angles precisely to your proprietary flow calculations. They match the exotic metal alloys directly to your exact corrosive profiles. Smart customization prevents painful, complicated pipe retrofitting later.
Vendor evaluation must include extremely strict physical quality checks. Look for specific, verifiable manufacturing capabilities before signing any supply contract.
Fully welded body availability: Essential for handling high-stress, direct-burial underground pipeline applications.
Verifiable flow coefficient testing: Physical laboratory testing proves the completed valve meets the stated Cv ratings.
Robust actuator-matching software: Advanced software ensures the selected motor perfectly handles the dynamic torque curve.
These demanding quality assurance steps protect your heavy infrastructure investments. They guarantee the hardware performs exactly as modeled in your fluid simulation software.
A V-port unit is not merely a slightly modified standard valve. It represents a distinct, highly advanced class of control equipment. It brilliantly merges the high-flow efficiency of rotary quarter-turn mechanics. It simultaneously delivers the extremely precise modulation capabilities traditionally reserved for linear valves. You get the best of both engineering worlds without the usual frustrating compromises. The self-cleaning shearing action easily conquers aggressive slurries and suspended solids.
We encourage process engineers and procurement buyers to take immediate action today. Gather your specific dynamic process parameters immediately. You need your exact flow rate, specific gravity, and inlet/outlet pressures. Run these numbers through professional valve sizing software. Consult directly with your selected OEM partner. Confirm your optimal internal geometry and specify the exact seat materials required for your unique operation.
A: A standard version features a simple round hole designed for fast, unrestricted on/off operations. It cannot modulate flow accurately. A V-port version incorporates a specially contoured V-shaped notch into the ball or seat. This unique geometry allows for progressive, linear, or equal-percentage throttling. Small mechanical turns yield precise, highly predictable flow changes.
A: Yes, they excel in these harsh environments. The contoured notch creates a sharp-edged orifice during rotation. This sharp edge generates a powerful wedge-shaped shearing action against the seat. It acts like a blade, cleanly cutting through suspended solids, fibers, and slurries. This prevents mid-stroke jamming, making it ideal for wastewater applications.
A: The specific notch angle dictates the exact flow characteristic. Smaller angles like 15° or 30° restrict fluid heavily initially. They provide extremely fine control for ultra-low flow rates. A 60° or 90° angle opens wider faster. This larger internal geometry offers an optimal balance between precise modulation and higher overall flow capacity.
A: No, they do not require specialized proprietary actuators. Their rotary quarter-turn design and reduced-friction seating generate significantly lower operating torque than traditional linear globe valves. Because of this distinct mechanical efficiency, they can often be paired with smaller, standard pneumatic or electric actuators. They integrate seamlessly into existing plant infrastructure.
