Engineers often face a frustrating balancing act in process design. They need precise flow modulation for critical systems. They also require zero-leakage, bubble-tight shutoff to maintain safety. Achieving both usually inflates project budgets significantly. Enter the V-port ball valve. This dynamic device bridges the gap perfectly. It serves as a highly capable hybrid. It sits comfortably between standard on/off valves and expensive globe control valves. You get reliable flow restriction without sacrificing tight sealing capabilities.
However, deploying them successfully takes careful planning. Specifying one requires a rigorous understanding of its inherent flow characteristics. You must also evaluate cavitation risks and media compatibility thoroughly. In this comprehensive guide, we explore the core purpose of these versatile valves. You will learn exactly how they work and when to choose them. We will also uncover common implementation blind spots. Understanding these factors ensures you select the optimal valve for your precise process conditions.
Primary Function: V-port ball valves deliver equal percentage flow control and bubble-tight shutoff in a single, compact unit, eliminating the need for inline secondary block valves.
Cost & Space Efficiency: They typically offer a higher flow coefficient (Cv) and cost 35% to 50% less than equivalent globe control valves.
Specialized Media Handling: The V-notch creates a mechanical shearing force against the seat, making it highly effective for fibrous, high-viscosity, or slurry-heavy media (e.g., pulp, wastewater).
Known Limitations: They are susceptible to accelerated wear under high-frequency cycling and present higher cavitation risks at steep pressure drops compared to linear-motion valves.
Process facilities demand predictable flow curves. When a control system sends a signal to increase flow by 10%, it expects a corresponding 10% change in actual volume. Standard valves fail at this task. As a standard spherical port opens, it exposes a massive flow area immediately. This causes an abrupt, unpredictable surge of fluid.
The V-port design solves this surging problem brilliantly. It utilizes a 90-degree rotary motion combined with a V-shaped notch cut directly into the ball or the seat. As the valve begins to open, only the narrowest tip of the "V" exposes fluid. This provides highly sensitive, micro-flow control at low capacities. As rotation continues, the wider section of the notch exposes exponentially more area. This geometry creates an "equal percentage" flow characteristic. It allows process engineers to maintain stable control loops without volatile pressure spikes.
Manufacturers do not use a one-size-fits-all approach. You can specify different notch angles based on your precise engineering requirements. Each angle serves a distinct operational purpose:
15° and 30° V-ports: These narrow angles are designed for fine, tapered micro-control. You should use them at extremely low flow rates where dosing accuracy is paramount.
45° and 60° V-ports: These offer the standard, everyday balance. They provide excellent throttling precision while maintaining a respectable overall flow capacity.
90° V-ports: This wide angle maximizes the flow coefficient (Cv). It is ideal for high-volume applications requiring basic, large-scale flow modulation rather than micro-dosing.

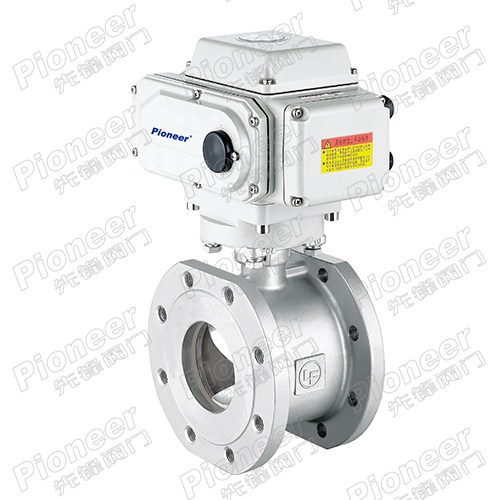

The mechanical valve body is only half of the solution. To fulfill its purpose, you cannot pair this unit with a simple on/off pneumatic actuator. It requires dynamic intelligence. You must pair it with positioning actuators. Most engineers specify electro-pneumatic positioners or 4-20mA electric actuators. These devices read continuous input signals from your distributed control system (DCS). They then adjust the rotary angle precisely to match the exact setpoint required.
Why do so many modern process plants transition away from massive, traditional control valves? The answer lies in pure mechanical efficiency. V-port designs punch well above their weight class regarding flow capacity and physical footprint.
The flow coefficient (Cv) measures how efficiently fluid passes through a restriction. Linear-motion globe valves force fluid through tortuous, S-shaped pathways. This internal friction reduces the overall Cv significantly. Conversely, a rotary V-notch provides a nearly straight-through flow path when fully open.
This straight path reduces internal turbulence. It allows engineers to specify smaller, lighter valves without sacrificing fluid volume. For example, you might replace an 8-inch globe valve with a 6-inch V-notch alternative. This saves critical space on crowded equipment skids. It also reduces the structural stress on your piping infrastructure.
Many traditional control valves leak inherently. Engineers often accept this as a necessary evil. Standard linear valves generally cap out at ANSI Class IV or VI shutoff ratings. They require a secondary inline block valve to ensure total isolation.
You can eliminate this redundancy by utilizing the floating ball principle. Upstream line pressure physically pushes the ball downstream into the soft seat. This pressure-assisted sealing mechanism creates a strict, bubble-tight shutoff. You gain proportional control and absolute zero-leakage isolation in one compact assembly. This dual capability simplifies piping layouts and reduces hardware costs dramatically.
Clean water is easy to control. Industrial realities are rarely clean. Industries dealing with solid particulates, agricultural syrups, and paper pulp face constant jamming issues. If you use a standard ball valve for slurry, solids will get trapped between the spherical edge and the seat. The valve seizes, and your process stops.
The V-notch creates a highly effective mechanical shearing force. As the valve closes, the sharp V-profile acts like a pair of scissors against the static valve seat. It cleanly shears off suspended fibers, solid particulates, and high-viscosity sludge. This self-cleaning action is an absolute necessity in wastewater treatment, pulp bleaching, and mining applications where standard valves fail daily.
Choosing the right control mechanism is a critical procurement decision. You must weigh upfront costs against long-term operational capabilities. While V-ports offer immense value, they are not universal replacements for every globe valve.
Budget constraints drive many engineering decisions. On average, V-notch rotary valves are highly cost-effective. They generally cost 35% to 50% less than a globe control valve of the exact same line size. Because they often possess a higher Cv, you can sometimes drop down a pipe size, generating even deeper capital savings.
Control rangeability defines how well a valve modulates flow from its minimum to maximum positions. V-ports offer impressive rangeability, often reaching ratios of 100:1 or even 200:1. They handle broad flow spectrums effortlessly.
However, globe valves remain the objective industry standard for extreme, ultra-fine micro-precision. If your chemical process requires dosing drops of fluid with near-perfect linear accuracy, a globe valve provides better mathematical predictability.
How often will the valve adjust its position? This question dictates the lifespan of your internal seals.
Globe Valve Advantage: The plug lifts directly off the seat. They rarely touch during the actual throttling phase. This non-contact control makes them ideal for continuous, high-frequency adjustments (modulating every few seconds).
V-Port Reality: The ball remains in constant friction with the soft seat during rotation. Under highly repetitive cycle loops, this constant rubbing accelerates seal degradation.
To simplify procurement, follow this actionable shortlisting logic:
"Choose the V-port for footprint reduction, tight budgets, bubble-tight shutoff, and handling slurries. Choose the Globe valve for extreme high-temperature environments (>350°F), high-frequency continuous cycling, or multi-port 3-way mixing operations."
Quick Reference: Capability Comparison Chart
Evaluation Criteria | V-Port Rotary Design | Linear Globe Design |
|---|---|---|
Flow Path & Cv | Straight-through; Exceptionally High Cv | Tortuous path; Lower Cv |
Shutoff Class | Zero-Leakage / Bubble-Tight | Usually ANSI Class IV to VI |
Particulate Handling | Excellent (Shearing action prevents clogs) | Poor (Prone to trapping solids under plug) |
High-Frequency Cycling | Moderate (Constant seat friction causes wear) | Excellent (Non-contact throttling) |
Average Procurement Cost | Low to Moderate (35%-50% cheaper) | High |
Experience teaches us that no engineering solution is flawless. If you specify these units blindly, you invite severe operational risks. You must evaluate the specific fluid dynamics of your pipeline to prevent catastrophic failures.
The laws of physics present the biggest threat to any control valve. As fluid approaches the restricted V-notch, it accelerates. The narrowest point of this fluid jet is called the vena contracta. Here, fluid velocity spikes drastically, and static pressure plummets.
If the pressure at the vena contracta drops below the fluid's vapor pressure, liquid flashes into vapor bubbles. As the fluid passes the restriction and pipeline pressure recovers, these bubbles violently implode. This phenomenon is called cavitation. The implosions act like tiny jackhammers, blasting away metal from the valve body and downstream piping. Because rotary valves have high recovery rates, they present higher cavitation risks at steep pressure drops compared to linear-motion valves. You must calculate pressure drops carefully before installation.
Selecting a narrow notch angle seems ideal for fine control. However, there is a hidden penalty. At narrow angles like 15°, the physical material of the ball blocks the pipe heavily. This flow restriction can exceed 70% even when the valve is fully open.
If you do not account for this, you will starve your downstream process of necessary fluid volume. To utilize a 15° notch effectively, you frequently have to resize your upstream pipeline to prevent severe flow bottlenecking.
Clean fluids are gentle. Abrasive slurries moving at high velocities are destructive. When high-velocity media forces its way through the narrow V-notch, it creates an intense scouring effect. Standard PTFE or metal seats erode quickly under this abrasive barrage.
To mitigate this blind spot, you must specify advanced materials. For highly abrasive environments, specify structural ceramics, solid cast stainless steel, or stellite-coated surfaces. These hardened materials resist scouring, extending the life of your internal components.
Procuring the right hardware goes beyond looking at a catalog. It involves aligning material science with your operational parameters. It also requires partnering with manufacturers capable of delivering highly customized solutions.
Temperature dictates your sealing materials completely. Standard soft seats, usually made from reinforced PTFE or RTFE, handle temperatures ranging from -46°C up to +200°C reliably. They provide excellent bubble-tight sealing for standard industrial processes.
However, many continuous processes involve superheated steam or thermal oils. Soft seats melt instantly under these conditions. For temperatures exceeding 200°C, you must evaluate specialized upgrades. Advanced graphite composites, PEEK, or solid metal-to-metal seating can withstand extreme environments, sometimes pushing temperature thresholds up to +500°C.
Standard catalogs rarely solve proprietary engineering challenges. If you design specialized machinery, chemical injection skids, or proprietary water treatment systems, standard off-the-shelf valves might not fit your specific flow curves.
This is where specialized manufacturing partnerships become invaluable. Finding a reliable OEM ball valve partner allows you to customize the equipment deeply. A strong OEM partner will machine custom notch geometries (like a 22.5° or 75° angle) to match your exact mathematical flow requirements. They will also guarantee actuator mounting compliance, ensuring the valve bodies feature standard ISO 5211 mounting pads for seamless automation integration.
Eventually, every valve requires maintenance. The physical structure of the valve body dictates how difficult that maintenance will be.
Single-piece and two-piece bodies are generally cheaper upfront. However, repairing them requires engineers to unbolt the entire unit from the pipeline, disrupting adjacent piping. Conversely, three-piece bodies offer massive maintenance advantages. The center section containing the ball and seats swings out freely. Mechanics leave the end caps securely bolted to the pipes. This "drop-in" repairability saves countless hours during scheduled plant outages. It allows quick seat replacements and gets your process running again rapidly.
The purpose of a V-port rotary valve is remarkably clear. It exists to economically unify strict, zero-leakage shutoff standards with dynamic, equal percentage flow regulation. It achieves this in a highly compact footprint. By utilizing the shearing effect of the V-notch, it handles fibrous media and slurries that routinely destroy traditional linear valves.
While they offer immense advantages in space and budget, they demand careful implementation. High-frequency friction and steep pressure drops can lead to rapid wear or severe cavitation. Before finalizing your procurement, take deliberate action. Map your exact pipeline pressure drops, calculate your anticipated cycle frequencies, and identify your exact media types. Compare these data points against the valve's documented cavitation limits. Taking these analytical steps ensures your process remains efficient, safe, and highly precise.
A: Yes. Utilizing floating ball mechanics and soft elastomeric seats, it achieves true bubble-tight, positive shutoff. The upstream line pressure forces the ball tightly against the downstream seat, creating a reliable seal that exceeds standard control valve leakage classes.
A: You will experience highly non-linear, unpredictable flow curves. As standard valves open slightly, they release massive fluid volumes instantly. This causes severe system instability, rapid seat wear from localized high velocities, and a significantly higher risk of damaging water hammer.
A: Generally, yes. The V-notch is oriented to face the upstream flow. This specific orientation utilizes the incoming pressure for proper sealing mechanics and accurate flow geometry. However, certain specialized bidirectional OEM configurations do exist for unique applications.
A: Yes, they handle steam effectively, provided you upgrade the internal materials. Standard soft seats will fail. You must replace them with metal-to-metal seating, high-temperature PEEK, or advanced graphite composites capable of withstanding temperatures up to 343°C (650°F) or higher.
