Tank Bottom Ball Valve for Complete and Efficient Vessel Discharge
Improve media discharge from reactors, tanks, vessels and process containers with a tank bottom ball valve engineered around the outlet of your equipment.
PIONEER flush bottom ball valves combine a close-mounted inlet, smooth flow path and flexible connection options to help reduce material accumulation at the tank outlet. Manual, pneumatic and electric operation can be selected according to your process and automation requirements.
Flush Bottom Ball Valves Built Around Your Process
A conventional pipeline valve may leave additional space between the tank outlet and the valve closure. In batch processing, this space can allow process media to remain near the outlet after discharge.
A PIONEER tank mounted flush bottom ball valve is designed for installation at the lowest discharge point of a reactor, tank or vessel. Its specially designed inlet flange can be welded or mounted close to the equipment bottom, while the smooth tapered passage supports direct and unobstructed discharge.
This configuration is particularly valuable when the process involves viscous media, suspended particles, frequent batch changes or a requirement to reduce material retention around the outlet.
Why Use a Tank Bottom Ball Valve?
Reduced Media Accumulation
The short distance between the valve ball and the tank bottom helps reduce the space in which process media can collect. A smooth tapered inlet supports more efficient movement from the vessel into the downstream line.
Efficient Bottom Discharge
When the valve is open, the ball bore aligns with the discharge path to create a direct flow passage. This supports the emptying of reactors, storage tanks and process vessels through their lowest outlet.
Accessible Inclined-Stem Design
An inclined stem places the operating mechanism away from the immediate bottom of the tank. This can make manual operation, actuator installation and maintenance access more practical where space around the vessel outlet is limited.
Direct Actuator Mounting

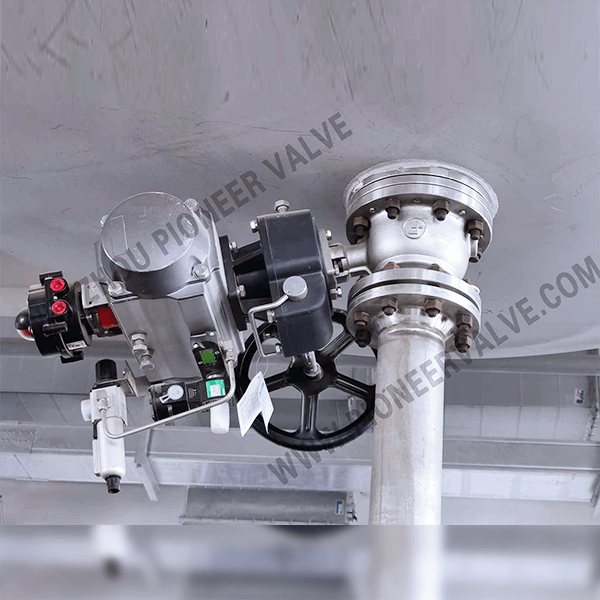

Selected configurations use an ISO 5211 direct mounting platform. Pneumatic or electric actuators can be installed without a complex external bracket arrangement, supporting accurate alignment and simplified automation.
Flexible Connection Options
Available product configurations include flange, thread, welding, tri-clamp and quick-coupling connections. The valve-to-tank and valve-to-pipeline interfaces can be selected around the equipment design and project standard.
Options for Challenging Media
Depending on the process, the valve can be configured with cavity fillers, purge ports, heating jackets, extended stems or alternative seat materials. Final selection should be based on the medium, temperature, pressure and cleaning requirements.
Product Center
Available Tank Bottom Valve Configurations
Inclined-Stem Tank Bottom Ball Valve
Designed to improve access to the operating stem and actuator when the available space directly beneath the tank is restricted.
Pneumatic Tank Bottom Ball Valve
Suitable for automated discharge sequences, remote operation and integration into process control systems.
Stem-Extension Bottom Discharge Valve
Extends the operating position away from the vessel outlet and can support installations where equipment geometry limits access.
Welded Flush Bottom Ball Valve
Provides a direct welded connection at the tank or reactor outlet for a compact, close-mounted arrangement.
Tri-Clamp and Quick-Coupling Valve
Supports applications where a removable connection is preferred for installation, inspection or process equipment servicing.
Cavity-Filler or Jacketed Configuration
Optional cavity-filler structures help reduce internal media retention, while heating-jacket options can support media that requires temperature maintenance.
Applications for Tank Bottom Ball Valves
Chemical and Fine Chemical Processing

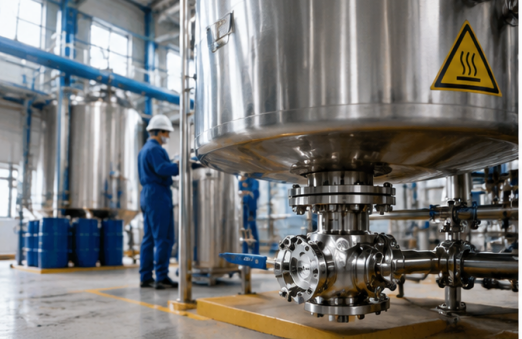

Tank bottom ball valves can be installed on reactors, mixing tanks and chemical process vessels to support controlled bottom discharge. Flush-mounted, cavity-filler or jacketed configurations can be evaluated for viscous media, particle-containing materials and temperature-sensitive processes.
Pharmaceutical and Biotechnology Processing

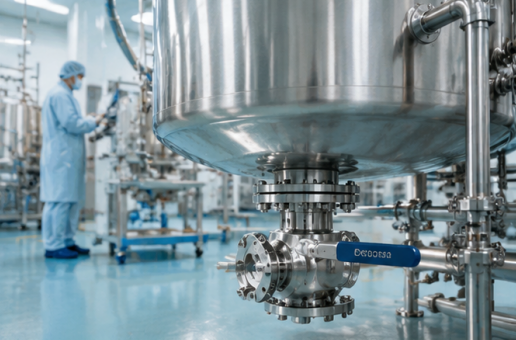

For pharmaceutical, biochemical and biotechnology equipment, the valve provides a short and direct discharge path from processing or fermentation vessels. The appropriate body material, seat material and connection type can be selected according to the medium and cleaning requirements.
Food, Beverage and Fermentation Equipment

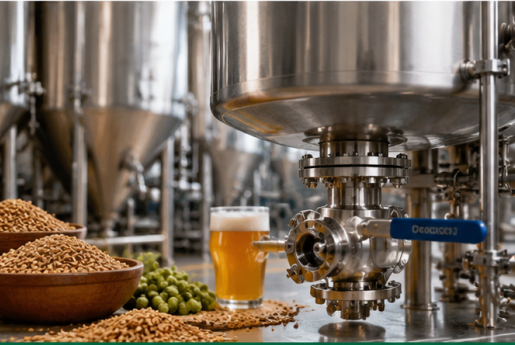

Tank bottom ball valves are suitable for food processing vessels, beverage equipment, brewing systems and fermentation tanks. Their close-mounted design helps reduce media retention around the tank outlet and supports efficient product transfer between production stages.
Daily Chemical and Personal Care Production

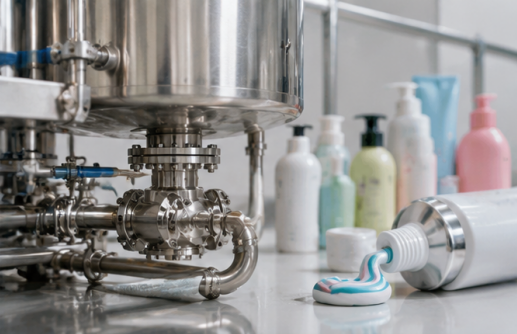

The valves can be used on toothpaste equipment, liquid washing equipment and other daily chemical mixing vessels. Different outlet connections, stem arrangements and actuator options allow the valve to be adapted to the equipment layout and discharge process.
Why Work with PIONEER?
Established Valve Manufacturing Experience
PIONEER has manufactured industrial valves since 1993 and has developed specialized products including wafer ball valves, jacketed ball valves, tank bottom ball valves and vacuum valves.
Controlled OEM Process
Requirements communication, drawing approval, sample production, mass production, final inspection and shipping are managed as defined project stages.
Broad Manufacturing Capability
Precision casting, CNC machining, three-dimensional design and engineering analysis support both standard products and complex valve body structures.
Project-Based Customization
Materials, dimensions, flange standards, connection methods, stem arrangements and actuator configurations can be adapted to customer requirements.
Specialized Tank Bottom Valve Development
The company’s product history includes the development of inclined tank bottom ball valves and later inclined hard-sealed jacketed tank bottom valve configurations.
Overseas B2B Support
Technical communication, bilingual testing documents, private labeling and export-oriented packaging can be arranged for distributors, equipment manufacturers and industrial end users.
OEM Project Workflow
Requirements Review
Provide the operating pressure, operating temperature, process medium, connection type and applicable project standard. Special dimensional or automation requirements should also be included.
Drawing Confirmation
The technical team prepares or verifies the valve drawing and confirms the connection dimensions, materials, sealing arrangement and operating device before production.
Sample and Testing
Where required, a sample or small production batch can be manufactured for dimensional, pressure, leakage and material verification.
Batch Production and Delivery
After approval, production proceeds under the confirmed drawing and specification, with final inspection and export packaging arranged before shipment.
