Managing complex fluid routing presents a strict engineering challenge. You must divert, mix, or bypass fluids efficiently while maintaining absolute hygiene. Facility managers face a constant tension. They want to minimize the piping footprint and reduce capital expenditure on multiple valves. At the same time, they must maintain strict sanitary standards. Dead legs and cross-contamination ruin product batches and cause severe compliance failures. The 3 way sanitary ball valve offers a specific architectural solution to these routing problems. This guide evaluates its mechanical configurations and flow paths. We will explore hygienic compliance factors, material selection, and actuation requirements. We will also analyze the mechanical trade-offs compared to alternative flow control setups, giving you the technical data needed to specify the right component for your processing skid.

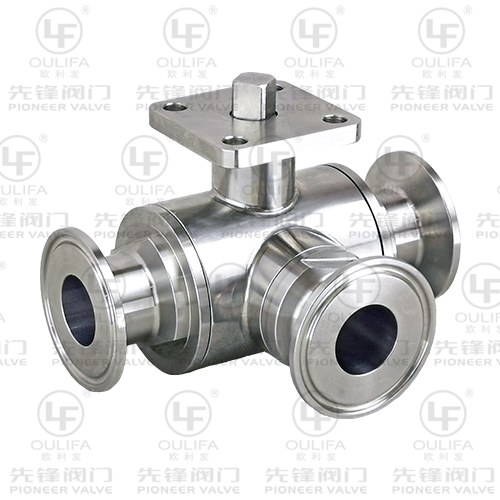

A 3-way sanitary ball valve consolidates flow control, effectively replacing two standard 2-way valves to reduce piping footprint, overall system volume, and complexity.
Selection hinges on the internal flow path: L-Port configurations are strictly for diverting flow, while T-Port configurations allow for mixing, bypassing, straight-through flow, and specific shut-off capabilities.
True sanitary performance requires specific design features, primarily fully encapsulated (cavity-filled) PTFE seats and high-polish stainless steel, to ensure Clean-In-Place (CIP) compatibility.
While they save space, 3-way valves introduce specific maintenance considerations and pressure drop calculations that must be validated against system requirements.
A multi-port rotary valve controls fluid direction through a machined sphere. The actuator turns a central stem. This stem rotates the internal ball to align specific channels with the piping ports. The switching action remains lightweight and highly responsive. This compact volume drastically outperforms traditional manifold assemblies. You eliminate bulky piping junctions. You streamline the entire fluid delivery system.
Industrial valves differ entirely from hygienic models. Standard industrial valves contain internal voids. Fluid enters the space between the ball and the outer body. It stagnates there. Bacteria multiply rapidly in these dead zones. Hygienic versions eliminate these voids completely. They utilize fully encapsulated cavity fillers. These molded inserts hug the ball tightly. They prevent any product from escaping the main flow path. When you run a cleaning cycle, the chemicals wash the entire wetted surface without leaving hidden pockets of contamination.
Hygienic models also require specific surface finishes. Manufacturers polish the internal wetted parts to a precise Roughness Average (Ra). This smooth surface prevents microbial adhesion. They also feature tri-clamp connections instead of threaded ends. Threads trap debris and make proper sanitation impossible.
Engineers deploy these components across multiple sterile industries. Biopharmaceutical plants use them to route purified water and WFI (Water for Injection). Dairy facilities divert raw milk into pasteurization loops. Breweries manage yeast slurries and wort transfer. You will frequently find a food processing sanitary ball valve managing viscous ingredients like syrups, oils, or liquid chocolate. These applications demand absolute cleanliness and reliable flow diversion under varying pressures.
The L-port configuration features a 90-degree internal channel. Imagine an elbow joint machined directly into the center sphere. This design serves a singular primary purpose. It directs flow from one common inlet to one of two separate outlets. You can also reverse the flow. You can route two separate inlets into one common outlet.
This provides a simple switching mechanism. You might need to switch flow between two different storage tanks. You can route a finished product to a packaging line. A moment later, you can divert a cleaning solution to a wastewater line. The L-port handles these binary choices perfectly. The operator simply turns the handle 90 degrees to change the routing path.
The L-port carries specific limitations. It cannot allow flow through all three ports simultaneously. The 90-degree channel only connects two ports at any given time. Certain configurations allow for complete flow shut-off. If you turn the ball 45 degrees, the solid wall blocks all ports. Other setups provide continuous diversion without a shut-off position. You must specify your exact operational requirement before ordering.
The T-port configuration features a T-shaped internal channel. This geometry offers immense flexibility. It intersects all three connection points simultaneously. You can mix fluids from two separate inlets into one common outlet. You can split one incoming stream into two diverging outlets. You can allow straight-through flow while blocking the third perpendicular port.
Application scenarios expand significantly with a T-port. You can blend two liquid ingredients precisely in a food processing line. You can create an efficient bypass loop around a sensitive pump. You can route fluid through a filtration skid or bypass it entirely during maintenance. The T-port adapts to complex routing demands that an L-port simply cannot handle.
This versatility introduces actuation complexity. You must sequence the actuator perfectly. Transitioning between positions requires precise timing. You must ensure the correct ports open and close at the exact right millisecond. Poor sequencing causes unwanted fluid mixing. It can also cause temporary pressure spikes if the flow path gets blocked during rotation.
Feature | L-Port Configuration | T-Port Configuration |
|---|---|---|
Internal Channel Shape | 90-degree angle (Elbow) | T-shaped intersection |
Primary Function | Diverting flow between two paths | Mixing, splitting, or bypassing flow |
Simultaneous 3-Way Flow | Impossible | Possible |
Actuation Complexity | Low (Simple 90-degree turn) | High (Requires precise sequencing) |
Typical Application | Switching storage tanks, CIP routing | Ingredient blending, pump bypass loops |
Space constraints dictate many engineering decisions. Plant floors rarely offer excess room. Traditional routing requires multiple 2-way valves. You must connect them using T-fittings and extra pipe lengths. This consumes valuable horizontal and vertical space. A single multi-port valve reduces the physical footprint drastically. It shrinks the overall system volume. You eliminate redundant connections. You simplify the entire piping schematic.
This consolidation directly reduces dead legs. A dead leg is a stagnant branch in a piping system. Fluid stops moving in these areas. Bacteria colonize stagnant fluid rapidly. Complex piping tees inherently create dead legs. A properly integrated multi-port valve minimizes these stagnant zones. The fluid remains in constant motion through the active ports. Regulatory bodies look closely at dead leg measurements during facility audits. Minimizing them keeps your plant compliant.
Sterile processing demands rigorous cleaning protocols. Clean-In-Place (CIP) and Steam-In-Place (SIP) compatibility remain mandatory. You must specify cavity-filled seats. Manufacturers typically mold these from virgin PTFE. These inserts fill the void between the ball and the body. They prevent product entrapment. Without them, sugars or proteins rot inside the valve body. Cavity fillers ensure compliance with strict FDA and 3-A sanitary standards.
Surface finish dictates hygienic performance. A stainless steel sanitary ball valve requires a highly polished interior. Engineers measure this in Roughness Average (Ra). Standard hygienic valves feature a 15 to 20 Ra micro-inch finish. Electropolishing can improve this further. A smooth surface denies bacteria any microscopic crevices to anchor themselves. It also allows CIP fluids to sweep the metal clean efficiently.
Modern facilities rely heavily on automated batch processing. Manual handles fail in high-speed environments. You need pneumatic or electric actuation. Actuators allow for remote operation from a central control room. They handle frequent cycling effortlessly. They prove essential for installations in inaccessible facility areas. You can mount valves high in the ceiling or deep inside a processing skid.
You must evaluate torque requirements carefully. Multi-port valves require higher breakaway torque than standard models. The cavity-filled seats create more friction against the rotating sphere. The actuator must overcome this initial resistance. You must size the pneumatic or electric actuator properly. An undersized actuator will stall. It will leave the valve partially open. This ruins flow routing and compromises system pressure.
Follow these steps when sizing an actuator for a multi-port valve:
Determine the maximum line pressure of your fluid system.
Consult the manufacturer's torque chart for the specific valve size and seat material.
Identify the minimum available air supply pressure in your facility (for pneumatic actuators).
Apply a 30% safety factor to the published breakaway torque to account for sticky fluids or seat swelling.
Select an actuator model that exceeds this calculated safety torque at your minimum air pressure.
A sanitary tri clamp 3 way ball valve dominates hygienic industries. Tri-clamp ends offer massive operational benefits. They allow for rapid disassembly. Maintenance teams can break down a line in minutes. They facilitate easy internal inspection. They support manual Clean-Out-of-Place (COP) routines perfectly. You simply loosen the clamp, remove the gasket, and pull the valve.
Engineers contrast tri-clamps with orbital weld ends. Weld ends provide permanent connections. They suit high-purity lines where disassembly never occurs. Welds eliminate the need for elastomeric gaskets. However, you must strictly avoid threaded connections in any sanitary system. Threads create deep, microscopic grooves. Product gets trapped in the thread pitch. CIP systems cannot flush threads clean. They present a massive contamination risk.
Maintenance accessibility drives valve selection. You should specify a 3-piece body design. A 3-piece structure features two end caps and a central body section. Four bolts hold the assembly together. This design offers a massive structural benefit.
It allows the center section to swing out. You isolate the fluid line. You remove the top bolts. You loosen the bottom bolts. The entire central body swings clear of the piping. You can perform easy disassembly. You can execute routine seat and seal replacements on a workbench. You reassemble the unit without ever disturbing the surrounding welded or clamped piping. This minimizes downtime significantly.
Metallurgy determines chemical resistance. You must choose between 304 and 316L stainless steel. 304 works for basic water routing or mild environments. 316L provides superior corrosion resistance. It contains molybdenum. This addition protects the metal against harsh CIP chemicals. Caustics and acidic washdowns cause pitting in lesser alloys. 316L survives these aggressive cleaning regimens.
Elastomer selection requires equal attention. You must evaluate seat materials based on temperature. PTFE handles high heat and resists almost all chemicals. TFM offers lower porosity and better deformation resistance. You must also select the right O-rings. EPDM handles steam and water perfectly. FKM (Viton) resists oils and fats. Silicone offers high purity but lower mechanical strength. Match the elastomer to your specific fluid chemistry.
Elastomer Material | Temperature Range | Best Applications | Limitations |
|---|---|---|---|
PTFE (Teflon) | -20°F to 400°F | Universal chemical resistance, high heat | Rigid, requires higher actuation torque |
EPDM | -30°F to 300°F | Steam, hot water, dilute acids | Poor resistance to oils and fats |
FKM (Viton) | -10°F to 400°F | Oils, fats, aggressive chemicals | Not suitable for continuous steam |
Silicone | -60°F to 400°F | High purity pharmaceuticals, extreme cold | Low mechanical tear strength |
Off-the-shelf components sometimes fail complex process engineering demands. Standard geometries might not fit your specific skid layout. You might need to work directly with a sanitary ball valve manufacturer. They provide tailored engineering support. They alter standard designs to meet unique operational challenges.
You might require a custom 3 way sanitary ball valve for temperature control. Jacketed valves feature an outer shell. You pump hot water or steam through this jacket. It keeps the internal product at a precise temperature. This proves critical for chocolate or wax processing. The product solidifies if it cools. Manufacturers can also machine specific porting angles. They can integrate limit switches directly into the stem for automated feedback loops.
Evaluating flow control architecture requires analyzing initial capital costs. A single multi-port valve demands a higher upfront purchase price than a single standard valve. However, you must compare it against the complete alternative assembly. Two standard valves require a T-fitting. They require three additional clamps and gaskets. They demand more installation labor. The single multi-port unit often reduces the total initial installation expenditure.
Maintenance complexity presents a notable trade-off. A sanitary 3 way ball valve reduces the total number of components in your facility. However, rebuilding one proves inherently more complex. You must align three separate ports perfectly. You must seat the cavity fillers with exact precision. Servicing a standard 2-way valve requires less technical finesse. The 3-piece swing-out design mitigates this difficulty, but the internal geometry remains intricate.
Flow restriction requires careful calculation. Fluid navigating a multi-port valve faces a tortuous path. It must make a sharp 90-degree turn or split into two streams. This creates turbulence. It lowers the Cv value (flow coefficient). It generates a higher pressure drop across the component. Full-port straight-through 2-way valves offer minimal resistance. You must evaluate your pump capacity. Ensure your system can handle the increased pressure drop of a multi-port routing setup.
Cross-contamination during switching poses a severe risk. A T-port valve transitions between positions dynamically. During this rotation, momentary mixing can occur. All three ports might connect for a fraction of a second. You must mitigate this through proper actuator speed control. You must program system timing flawlessly. If absolute separation remains mandatory, you might need to abandon the ball valve entirely. You would specify double-seat mix-proof valves instead.
Incomplete cleaning leads directly to CIP failure. Fluid traps behind the ball if you mistakenly specify non-cavity-filled valves. Bacteria thrive in these hidden voids. You mitigate this through strict specification. Demand fully encapsulated PTFE seats. Furthermore, you must implement half-open cycling during the CIP regimen. The actuator must turn the ball 45 degrees while the cleaning solution flows. This flushes the internal body cavity and sanitizes all hidden surfaces.
Water hammer destroys piping infrastructure. Rapid flow diversion causes massive pressure spikes. The kinetic energy of moving fluid slams into a suddenly closed port. Pipes shake violently. Hangers break. Gaskets blow out. You mitigate water hammer by utilizing slow-closing actuators. You can install speed control mufflers on pneumatic airlines. You should also utilize variable speed drives on your pumps to ramp down flow before switching.
Perform these routine checks to prevent unexpected failures:
Inspect the stem packing for minor leaks during high-pressure transfers.
Verify the actuator alignment to ensure the ball rotates fully into the open or closed position.
Check the tri-clamp gaskets for signs of extrusion or chemical degradation.
Monitor the air supply lines to pneumatic actuators for moisture buildup.
A multi-port rotary valve serves as the optimal choice for complex fluid routing. It excels when you must achieve footprint reduction, remote automation, and flow diversion simultaneously. It maintains strict hygienic conditions through cavity-filled seats and high-polish finishes. It replaces bulky manifold assemblies and streamlines your entire process skid.
Buyers should follow a sequential shortlisting logic. First, define your exact flow path. Choose an L-port for simple diversion or a T-port for mixing. Determine your shut-off needs. Second, confirm the hygienic standard. Mandate cavity-filled seats and 316L stainless steel. Third, select your connection type. Tri-clamps offer the best maintenance accessibility. Specify a 3-piece body style for swing-out servicing. Finally, size the actuator correctly based on the higher torque requirements.
Take these actionable next steps to finalize your specification:
Consult with process engineers to calculate exact Cv requirements and pressure drops for your specific fluid viscosity.
Request 3D CAD models from the manufacturer to validate the piping layout and ensure adequate clearance for actuator removal.
Verify material test reports (MTRs) with suppliers to guarantee the 316L alloy composition meets your facility standards.
Program your automation system to include half-open cycling during all CIP routines to guarantee complete sanitation.
A: "3-way" refers to the number of flow ports. It routes fluid in multiple directions. "3-piece" describes the physical body construction. It features two end caps and a center body. This allows the center to swing out. You can perform maintenance without cutting pipes.
A: No. Ball valves function best for on/off or diverting applications. Throttling exposes the PTFE seats to high-velocity fluid. This causes uneven wear and damages the seal. Damaged seats create crevices for bacteria, ruining hygienic compliance.
A: You must use cavity-filled seats. These eliminate dead spaces around the ball. During the CIP cycle, you must actuate the valve. Cycling it half-open flushes cleaning solution across all internal surfaces. This guarantees complete sanitation.
A: You cannot easily tell from the outside body. You must look at the actuator stem or handle. Manufacturers stamp or engrave a "T" or "L" on the stem top. The handle orientation also indicates the flow path direction.
A: Yes. The fluid must navigate a 90-degree turn or split path. This creates more turbulence than a straight 2-way valve. You must calculate the Cv value carefully. Ensure your pumps can handle the increased resistance.
A: Threads create microscopic crevices. Product gets trapped inside these grooves. CIP systems cannot clean threaded areas effectively. This leads to rapid bacterial growth and cross-contamination. Always use tri-clamp or orbital weld connections instead.
