Fluid routing in food, beverage, and pharmaceutical processing carries massive operational stakes. A single point of contamination or a minor flow failure can trigger complete batch loss, facility downtime, and severe regulatory penalties. Process engineers face a constant challenge: directing, mixing, or diverting fluids through complex piping networks without introducing dead legs, pressure drops, or bacterial harborage points. System designs must also account for limited spatial footprints on processing skids. Standard industrial valves fail these rigorous demands because their internal geometries trap product and resist thorough cleaning.

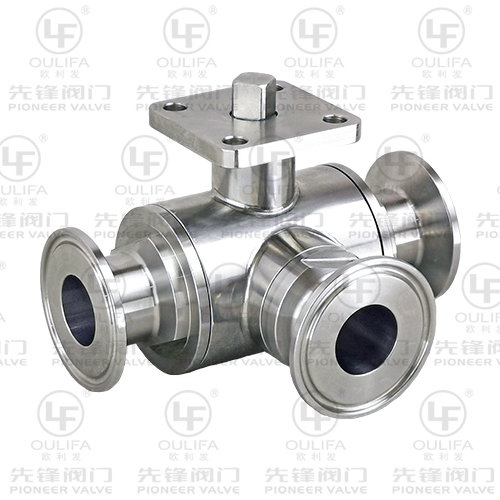

The sanitary 3 way ball valve provides the definitive technical solution for these high-stakes environments. Selecting the correct valve requires rigorous evaluation of material grades, surface finishes, mechanical strength, and port configurations. Proper specification ensures regulatory compliance, effective Clean-in-Place (CIP) operations, and long-term system reliability.
Material and Finish Dictate Compliance: True sanitary performance relies on 316/316L stainless steel and internal surface finishes polished to <0.6 Ra to prevent microbial growth.
Structural Simplicity Ensures Reliability: A compact volume combined with a quarter-turn quick switch mechanism guarantees perfect shutoff and zero leakage, even after years of disuse.
Port Configuration Determines Functionality: System designers must accurately specify between L-port (diverting) and T-port (mixing/routing) designs based on precise fluid dynamics requirements.
Sealing Technology is Critical: Utilizing cavity-filled, food-grade PTFE seals eliminates dead spaces where product can accumulate, a non-negotiable feature for Clean-in-Place (CIP) systems.
Supplier Traceability Mitigates Risk: Partnering with a vetted sanitary ball valve supplier ensures material test reports (MTRs) and regulatory compliance (FDA, 3-A) are guaranteed.
Valves operating in sanitary environments must meet a strict intolerance for cross-contamination. Processing facilities handle sensitive media ranging from dairy products to active pharmaceutical ingredients. Any residual product left behind after a production run becomes a breeding ground for bacteria. Flow control components must also demonstrate exceptional mechanical strength. They endure constant pressure fluctuations, thermal shocks during sterilization, and exposure to aggressive cleaning chemicals.
Contamination prevention relies heavily on CIP and Sterilize-in-Place (SIP) compatibility. Standard industrial valves contain internal voids and sharp corners. These areas create dead legs where fluid velocity drops to zero. In sanitary piping design, a dead leg must not exceed a Length-to-Diameter (L/D) ratio of 2:1. When dead legs exceed this ratio, cleaning agents cannot penetrate the space effectively. Sanitary environments require specialized internal geometries characterized by smooth transitions and cavity-free designs. A proper hygienic valve ensures cleaning solutions wash over every internal surface at the required velocity to strip away proteins, fats, and mineral deposits.
Fluid resistance directly impacts pump efficiency and product integrity. A high-quality hygienic 3 way ball valve minimizes pressure drops across the piping network. The internal bore aligns precisely with the connected tubing. This transition maintains exceptionally small fluid resistance. Efficient flow dynamics reduce the workload on sanitary pumps and prevent shear damage to sensitive fluids. When pumping shear-sensitive media like yogurt, mayonnaise, or live cell cultures, any sudden change in flow direction or pressure can degrade the product structure. The smooth, unobstructed bore of a properly specified ball valve mitigates this risk entirely.
Process engineers must evaluate several baseline criteria when designing these systems. You have to account for the specific gravity of the fluid, the maximum line pressure during a blockage, and the peak temperatures reached during SIP cycles. If a valve cannot handle a 135°C steam cycle without its seals deforming, it fails the baseline criteria for hygienic flow control.
Material integrity forms the foundation of any sanitary component. Industry standards mandate 316 or 316L stainless steel for all wetted parts, entirely phasing out 304 stainless steel in product contact areas. The "L" denotes low carbon content, which prevents carbide precipitation during welding. More importantly, 316/316L contains 2% to 3% molybdenum. This element drastically improves corrosion resistance against the harsh caustics and acids used in daily CIP regimens. It prevents chloride-induced pitting and crevice corrosion, ensuring long-term structural durability even when exposed to aggressive sodium hypochlorite sanitizers.
Surface finish standards dictate cleanability. Engineers measure surface roughness using the Roughness Average (Ra) metric. All internal wetted surfaces must achieve a polish of <0.6 Ra (micrometers) or better. Microscopic peaks and valleys on the metal surface provide anchor points for biofilm adhesion. Mechanical polishing followed by electropolishing flattens these microscopic irregularities. Electropolishing removes the outer skin of the metal, leaving a chromium-rich, passive layer. A mirror-like internal finish allows fluids to glide through the valve and ensures cleaning chemicals can easily sweep away contaminants.
Mechanical reliability hinges on the quarter-turn quick switch mechanism. The simple structure of a ball valve guarantees perfect shutoff and reliable sealing. Operators or actuators only need to rotate the stem 90 degrees to change flow states. This minimal movement reduces wear on the internal components. The design maintains strict performance tolerances, preventing internal bypass or external leakage even after years of disuse or infrequent operation. Unlike globe or gate valves, which require multiple turns and expose threaded stems to the environment, the ball valve keeps its critical moving parts protected.
Dense processing skids demand components with a compact footprint. The small volume of the valve body saves space in complex manifolds. Despite the compact exterior, manufacturers offer scalable caliber options. Facilities can specify large diameter bores to accommodate high-volume flow rates without sacrificing the space-saving benefits of the overall design. This becomes especially important in modular skid construction where every square inch of frame space is accounted for.
Sealing mechanisms differentiate standard valves from true sanitary components. Food Grade PTFE (Polytetrafluoroethylene) serves as the standard seat material due to its chemical inertness and high-temperature tolerance. However, standard seats leave a void between the outside of the ball and the inside of the valve body. Cavity-filled seats solve this problem. The PTFE material extends to fill the entire body cavity. Cavity fillers block fluid from entering the space around the ball, eliminating the primary risk of product entrapment and bacterial growth. When processing sticky or crystallizing media, cavity fillers are an absolute requirement.
Modern processing facilities require actuation readiness. High-quality valves feature an integrated ISO 5211 mounting pad cast directly into the valve body. This structural requirement allows maintenance teams to transition easily from manual lever operation to pneumatic or electric actuation. As a facility scales its automation capabilities, the existing valves remain in place. You only need to remove the manual handle and bolt on a pneumatic actuator and control top. Direct-mount designs eliminate the need for custom brackets, reducing play in the stem and ensuring precise alignment.
The internal geometry of the ball dictates the flow path. System designers must select the correct bore shape to control fluid direction accurately. The hole machined through the center of the ball comes in two primary configurations, each serving distinct operational requirements on the plant floor.
L-Port configurations handle flow diversion. The internal bore forms a 90-degree "L" shape. This design connects the center common port to either the left or right side port. Rotating the handle 90 degrees switches the flow from one destination to another. Processors use L-port valves to divert product from a main line into a holding tank, switch flow between two different filtration housings, or shut off flow entirely by turning the blind side of the ball toward the fluid source. For example, in a brewery, an L-port valve might direct wort to fermenter A, and upon a quarter turn, redirect the remaining batch to fermenter B.
T-Port configurations manage mixing and routing. The internal bore forms a "T" shape, allowing fluid to flow straight through the valve while simultaneously branching off at a 90-degree angle. A T-port 3 way sanitary ball valve can connect all three ports simultaneously. It can also connect any two ports depending on the handle position. Facilities use T-port valves to mix two fluid streams into a single line, split one main stream into two separate processing lines, or bypass a specific piece of equipment during maintenance. In a beverage plant, a T-port valve might blend concentrated syrup from one port with purified water from another, sending the mixed product out the third port.
Feature | L-Port Configuration | T-Port Configuration |
|---|---|---|
Bore Shape | 90-degree angle (L-shape) | Straight through with a 90-degree branch (T-shape) |
Primary Function | Flow diversion and selection | Mixing, splitting, and straight-through routing |
Port Connectivity | Connects center port to one side port at a time | Can connect all three ports or any two ports |
Common Use Case | Switching flow between two storage tanks | Blending two ingredients into a single process line |
Shutoff Capability | Can easily shut off all flow | Requires specific handle positioning to shut off flow |
Connection methodologies directly impact installation speed, maintenance access, and system hygiene. Threaded connections trap bacteria in the thread grooves and are strictly prohibited in product contact zones. Flanged connections require multiple bolts and tools for removal, making them cumbersome for frequent inspections. The sanitary industry relies almost exclusively on ferrule-style connections to maintain sterile boundaries.
Tri-clamp connections dominate sanitary industries due to their optimal balance of mechanical strength and accessibility. The design utilizes two flanged ferrules, a specialized elastomeric gasket, and a hinged clamp. This configuration creates a smooth, crevice-free transition between the piping and the valve body. When properly aligned, the gasket fills the gap between the ferrules perfectly, leaving no intrusion into the flow path and no recess where fluid can stagnate.
Installation speed improves dramatically with a sanitary tri clamp 3 way ball valve. Maintenance personnel can assemble or disassemble the connection rapidly without specialized tools. This accessibility facilitates routine manual inspection and Clean-Out-of-Place (COP) procedures. When operators need to swab a line for ATP testing or replace a worn seal, the tri-clamp mechanism allows them to remove the valve from the line in seconds.
Proper installation requires specific steps to ensure a hygienic seal:
Inspect the ferrule faces on both the valve and the piping for scratches or dents.
Select the correct gasket material (EPDM, FKM, or PTFE) based on the line temperature and chemical exposure.
Seat the gasket onto the piping ferrule, ensuring the alignment ring sits flush.
Align the valve body ferrule against the gasket, holding it perfectly straight to prevent pinching.
Apply the hinged clamp over both ferrules and hand-tighten the wing nut.
Verify visual alignment before applying final torque to prevent gasket extrusion into the flow path.
Leak prevention relies on the mechanical reliability of the clamp mechanism paired with the correct gasket material. High-demand processing lines operate under significant pressure and temperature thresholds. Properly torqued clamps compress the gasket perfectly flush with the internal bore. This precise compression prevents fluid from weeping out of the connection and stops external contaminants from breaching the sterile process environment.
Even the highest quality valves require structured maintenance to perform reliably over years of service. Preventive maintenance schedules depend heavily on the actuation frequency, the abrasiveness of the media, and the harshness of the CIP chemicals. Facilities should establish a baseline inspection routine for all flow control components.
Seal degradation represents the most common failure point in any valve. PTFE seats offer excellent chemical resistance, but they can experience cold flow or deformation under extreme pressure and temperature cycling. Operators should monitor the valve for signs of internal bypass. If an L-port valve is set to divert flow to the left, but fluid weeps out of the right port, the internal seats have lost their sealing integrity. This requires an immediate rebuild.
Rebuilding a sanitary ball valve involves removing it from the line via the tri-clamp connections, unbolting the body sections, and replacing all PTFE seats, cavity fillers, and stem O-rings. Always use an OEM-supplied rebuild kit to ensure the tolerances match the original factory specifications. After reassembly, actuate the valve manually several times to seat the new seals before returning it to service.
Stem leaks indicate a failure of the stem packing or O-rings. This usually occurs when the valve is subjected to pressure spikes beyond its rated capacity. Tightening the packing nut can temporarily stop a minor stem leak, but it increases the operating torque required to turn the valve. If a pneumatic actuator struggles to turn the valve after tightening the packing, the seals must be replaced entirely.
Procurement decisions require a careful evaluation of operational trade-offs. Selecting flow control components based solely on initial availability or lower-grade materials often leads to severe mechanical failures and product contamination down the line.
Contrast the performance of a premium, fully certified food grade sanitary ball valve against cheaper alternatives. Low-quality valves frequently suffer from poor machining tolerances. This leads to galling, where the stainless steel moving parts fuse together under friction. They require frequent seal replacements and often fail to maintain a tight shutoff after periods of disuse. A single batch contamination incident caused by a degraded, non-compliant seal will cause massive operational disruptions.
Engineers must also evaluate standard versus cavity-filled designs. A standard sanitary valve remains acceptable for utility lines, purified water routing, or low-viscosity fluids that flush easily. However, a fully cavity-filled valve becomes mandatory when processing sticky syrups, dairy products, or active pharmaceutical ingredients. Cavity fillers prevent crystallization and spoilage inside the valve body, ensuring the component does not become a liability during production runs. Choosing a standard seat for a high-viscosity application guarantees product buildup and eventual bacterial failure.
Sourcing hygienic components introduces specific supply chain and verification risks. Counterfeit materials and poor machining tolerances can compromise an entire processing skid. Facilities must implement strict vetting procedures when selecting manufacturing partners.
Certifications and material traceability serve as the primary defense against implementation risks. Always request Material Test Reports (MTRs) from your sanitary ball valve supplier. An MTR (specifically EN 10204 3.1) traces the exact chemical composition of the steel back to the original heat batch at the foundry. You must verify that the carbon content is below 0.03% and the molybdenum content meets the 2-3% threshold for 316L. Verify compliance with FDA regulations for all elastomer seals (CFR Title 21, Part 177.2600) and ensure the valve design meets 3-A Sanitary Standards or equivalent ISO certifications.
Off-the-shelf components sometimes fall short of complex system requirements. Working with a capable manufacturer provides significant advantages. An OEM sanitary ball valve partner can engineer custom porting configurations or scale the caliber to non-standard diameters. They can provide specific automation packages tailored to your facility's control network, including explosion-proof limit switches or modulating positioners. For applications involving highly viscous fluids like chocolate or heavy resins, an OEM can design custom jacketed valves. These jacketed designs allow hot water or steam to circulate around the valve body, maintaining precise temperature control and preventing product solidification inside the bore.
The structural simplicity, quick switch operation, and reliable sealing of a sanitary 3-way ball valve make it an indispensable component in modern processing facilities. These valves deliver flawless performance provided their material grades, surface finishes, and sealing mechanisms align strictly with hygienic standards.
To ensure successful implementation, follow these next steps:
Audit your current flow control systems to identify dead legs, pressure bottlenecks, or valves with standard seats handling viscous media.
Determine the exact flow path requirements for your upcoming upgrades, selecting between L-port and T-port configurations based on routing needs.
Mandate 316L stainless steel, cavity-filled PTFE seals, and tri-clamp connections in your engineering specifications.
Consult with process engineers to map out exact pressure and temperature requirements for your specific media and CIP cycles.
Contact a qualified supplier to request technical specification sheets, MTR documentation, and 3D CAD models for integration into your piping designs.
A: The difference lies in the internal bore shape. An L-port valve has a 90-degree bore used primarily for diverting flow from one line to another or shutting off flow entirely. A T-port valve has a straight-through bore with a 90-degree branch, allowing it to mix two fluid streams, split one stream into two, or route flow straight through while bypassing the third port.
A: Cavity-filled seats feature PTFE material that expands to fill the void between the ball and the internal valve body. This prevents product entrapment in dead spaces. Eliminating these cavities stops bacterial growth, prevents cross-contamination between batches, and ensures cleaning chemicals can effectively sanitize the entire valve interior without leaving residue.
A: Ra stands for Roughness Average, measured in micrometers. A finish of <0.6 Ra indicates an exceptionally smooth, electropolished surface. This microscopic smoothness prevents proteins, minerals, and bacteria from adhering to the metal. It ensures fluids flow with minimal resistance and allows CIP processes to strip away contaminants completely.
A: Yes, provided it is equipped with the correct seals. High-quality sanitary valves utilize food-grade PTFE or specialized high-temperature elastomers. These materials withstand the extreme thermal shocks associated with hot caustic washes and steam sterilization (SIP) without degrading, melting, or losing their sealing integrity under pressure.
A: A ball valve relies on a quarter-turn mechanism with very few moving parts. Rotating the stem 90 degrees fully opens or closes the flow path. This minimal mechanical action reduces wear and tear on the seals and stem packing, ensuring perfect shutoff and zero leakage even if the valve remains unactuated for long periods.
A: You must request an EN 10204 3.1 Material Test Report (MTR) prior to purchase. This document verifies the exact chemical composition of the stainless steel, proving it meets 316L standards. Additionally, verify that the supplier holds relevant industry certifications, such as 3-A Sanitary Standards compliance and FDA approval for all polymer seals.
A: Sourcing from an OEM allows for extensive customization. You can request custom face-to-face dimensions to fit existing piping, specialized mounting pads for unique actuators, or large caliber bore sizes. OEMs can also manufacture jacketed designs for temperature-sensitive media or source specific alloy materials for highly corrosive applications.
