Valves play a crucial role in controlling the flow of liquids and gases in industrial systems. Among the many types of valves available, Ball Valves and Butterfly Valves are two of the most widely used. These two valves are distinct in their design, function, and applications, but both offer significant advantages depending on the specific requirements of a system. In this article, we will compare Ball Valves and Butterfly Valves, analyzing their key features, advantages, and differences to help you make an informed choice for your next project.

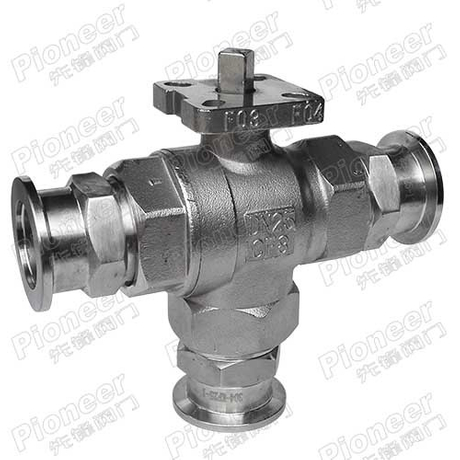

A Ball Valve is a quarter-turn valve that uses a spherical ball to control the flow of fluid. The ball has a hole or port through its center, which aligns with the flow path when the valve is open. When the valve is closed, the ball rotates 90 degrees to block the flow of the fluid. This simple yet effective design ensures a tight seal, preventing leaks.
Quarter-turn operation: Only a 90-degree rotation is needed to open or close the valve.
Leak-proof: The ball seals tightly against the valve body, preventing leaks.
Durability: Made from robust materials like stainless steel, Ball Valves can withstand high pressure and temperature conditions.
Versatility: Available in a range of sizes, Ball Valves can be used in many industries, including oil and gas, water treatment, and chemical processing.
Tight Seal: Ball Valves provide an almost perfect seal, even at high pressures.
Quick Operation: The quarter-turn design allows for fast opening and closing.
Reliable: These valves are durable and can handle heavy-duty applications.
Maintenance: With fewer parts, Ball Valves are easier to maintain and repair.
A Butterfly Valve is another quarter-turn valve, but it operates using a rotating disc instead of a ball. The disc is mounted on a shaft and positioned in the center of the valve body. When the valve is closed, the disc blocks the flow. When it’s open, the disc rotates and allows the fluid to pass through.
Compact design: Butterfly Valves are smaller and lighter than many other valve types, making them ideal for space-saving applications.
Versatility: Suitable for a wide range of applications, including water systems, HVAC, and chemical processing.
Low-pressure drop: Because the disc is located in the center, Butterfly Valves cause less flow restriction than other valve types.
Cost-effective: Generally, Butterfly Valves are more affordable compared to other types of valves.
Lightweight and space-efficient: Butterfly Valves have a slim profile, allowing them to fit in tight spaces.
Cost-effective: They are generally less expensive than Ball Valves, both in terms of purchase and installation.
Simple design: With fewer moving parts, Butterfly Valves are simple to operate and maintain.
Flow control: The disc design allows for more precise control over flow, especially at lower pressures.
The design of a Ball Valve is centered around a solid ball with a hole in the middle, which rotates to control fluid flow. On the other hand, a Butterfly Valve utilizes a rotating disc that controls the flow. The Ball Valve generally has a more robust construction and is better suited for high-pressure applications, whereas the Butterfly Valve offers a more compact and lightweight option, ideal for low to medium pressure systems.
Ball Valves are preferred for applications requiring a tight shut-off and high durability, such as in oil and gas pipelines or chemical processing systems.
Butterfly Valves are more commonly used in applications where space is limited and a lower-pressure drop is desired, such as in water treatment plants and HVAC systems.
Ball Valves are better suited for high-pressure applications due to their tight seal and robust design. Butterfly Valves, while durable, are typically used in lower-pressure systems, although some designs can handle medium to high pressures with the right material selection.
Butterfly Valves are typically more affordable than Ball Valves and are easier to install due to their compact design. Ball Valves, while more expensive, provide superior performance in critical applications where reliability and a tight seal are essential.
Ball Valves offer precise control over flow but are often used in on/off applications rather than throttling. Butterfly Valves, with their rotating disc, are better suited for throttling and flow regulation, especially at lower pressures.
Both valves are relatively low maintenance, but Butterfly Valves require less frequent maintenance due to fewer moving parts. Ball Valves, while easy to maintain, may require more attention in high-pressure environments.
Ball Valves are known for their longevity and ability to withstand high pressures and temperatures, making them ideal for demanding industrial applications. Butterfly Valves, while durable, are generally better suited for less harsh conditions.
| Feature | Ball Valve | Butterfly Valve |
|---|---|---|
| Design | Spherical ball with a hole in the middle | Rotating disc positioned in the center |
| Size and Weight | Larger and heavier | Compact and lightweight |
| Pressure Handling | High-pressure applications | Low to medium pressure applications |
| Cost | Higher cost | More cost-effective |
| Flow Control | On/off control, limited throttling | Suitable for throttling and flow regulation |
| Durability | Excellent in harsh conditions | Suitable for moderate conditions |
| Maintenance | Easy to maintain, but may require more care | Low maintenance, fewer moving parts |
Oil and Gas: Used for pipelines, offshore platforms, and gas distribution.
Chemical Processing: Ensures leak-tight control of chemicals in pipelines.
Water Treatment: Provides shut-off control in municipal water systems.
Pharmaceutical: Ensures safety and quality in drug manufacturing processes.
HVAC Systems: Regulates airflow in air conditioning and ventilation systems.
Water and Wastewater Treatment: Controls the flow of water or sewage.
Fire Protection: Used in sprinkler systems for flow control.
Food and Beverage: Regulates fluid flow in brewing and beverage production.
1. Which valve is better for high-pressure applications?
Ball Valves are generally better suited for high-pressure applications due to their ability to provide a tight seal and handle harsh conditions.
2. Can Butterfly Valves be used in throttling applications?
Yes, Butterfly Valves are ideal for throttling and flow regulation, especially in lower-pressure systems.
3. What are the cost differences between Ball and Butterfly Valves?
Ball Valves are typically more expensive due to their robust construction and higher pressure capabilities. Butterfly Valves are more affordable and offer a cost-effective solution for many applications.
In conclusion, both Ball Valves and Butterfly Valves have their own strengths and are suited to different applications. Ball Valves are perfect for high-pressure, high-temperature systems where a tight seal and durability are essential. Butterfly Valves, on the other hand, offer a more compact, cost-effective solution for applications where space is limited and precise throttling is required.
When selecting the right valve for your project, it’s important to consider factors such as pressure, temperature, flow control requirements, and budget. Whether you choose a Ball Valve or a Butterfly Valve, understanding the unique features and benefits of each valve type will ensure optimal performance for your system.
