In the world of fluid control systems, understanding the nuances between different valve types is crucial. Among the most commonly used valves are the ball valve and the disc valve. They play pivotal roles in various industries, from oil and gas to pharmaceuticals. While both serve the fundamental purpose of regulating fluid flow, their design, operation, and applications differ significantly. This article delves deep into the differences between ball valves and disc valves, providing a comprehensive analysis that will enhance your understanding of these essential components.

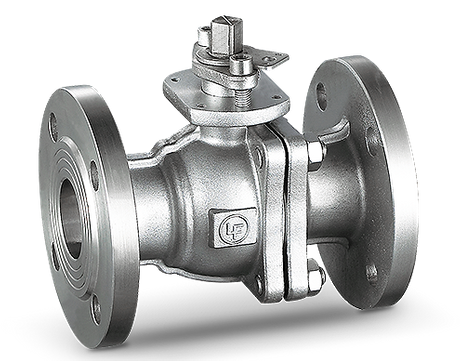

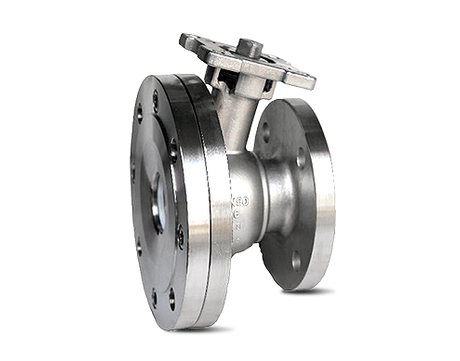

Ball valves are characterized by a spherical closure unit with a hole through its center. When the hole aligns with the pipeline, fluid flows freely; when rotated 90 degrees, the flow stops. This simple mechanism offers quick operation and reliable sealing. The ball is typically made of materials like stainless steel, brass, or chrome to withstand various pressures and temperatures. Seats are usually composed of soft materials such as Teflon to ensure a tight seal.
Disc valves, often referred to as butterfly valves, utilize a flat disc mounted on a rod to control fluid flow. When the valve is fully opened, the disc rotates a quarter turn, allowing almost unrestricted flow. The disc is typically made from durable metals or composite materials, and like ball valves, the seats can be lined with soft materials for improved sealing. The compact design of disc valves makes them suitable for applications where space is limited.
Ball valves operate by rotating the ball with a hole (bore) in the center. The actuator, which can be a lever or handle, turns the ball to open or close the valve. The quarter-turn operation allows for quick shutoff, which is advantageous in applications requiring immediate flow stoppage. Ball valves offer low torque operation and can handle high pressure and temperature conditions, making them versatile in many industrial settings.
Disc valves control fluid flow with a disc that rotates around an axis. When the disc aligns with the flow, the valve is open; when it's perpendicular, the valve is closed. The design allows for quick operation, similar to ball valves, but the disc remains in the fluid flow even when fully opened. This can cause a slight pressure drop, which might be a consideration in certain applications. However, the simplicity of the mechanism makes disc valves economical and easy to maintain.
Ball valves, particularly full bore types, offer minimal flow resistance when fully open. The design ensures that the bore of the ball matches the pipeline diameter, providing an uninterrupted flow path. This feature is crucial in applications where pressure drop must be minimized. However, when partially open, ball valves are not ideal for throttling purposes due to potential damage from high-velocity flow impacting the soft seats.
Disc valves exhibit different flow characteristics. The disc remains within the flow path even when the valve is fully open, which introduces some resistance and a pressure drop. Despite this, disc valves excel in throttling applications. They provide good flow control over a range of openings, allowing for precise regulation of fluid flow. The flow is generally linear, making it easier to predict and control the valve's performance in various scenarios.
Ball valves are prevalent in industries requiring reliable and tight shutoff. They are commonly found in oil and gas pipelines, chemical processing plants, water treatment facilities, and pharmaceuticals. The ability of a ball valve to handle high pressures and temperatures makes it suitable for critical applications. Additionally, their compatibility with automated systems allows for integration into sophisticated process control setups.
Disc valves are widely used in applications where space constraints and cost are significant considerations. HVAC systems, firefighting equipment, and water distribution networks commonly employ disc valves. Their suitability for large diameter pipes and ability to handle slurries and fluids with suspended solids make them versatile. Furthermore, the ease of operation and low maintenance requirements contribute to their popularity in various sectors.
Ball valves offer several advantages, including tight sealing with low torque, quick operation, and minimal pressure drop when fully open. They are durable and perform well after many cycles, ensuring longevity. However, they are generally not suitable for throttling applications and can be more expensive than other valve types. The seats may also be susceptible to damage when used partially open under high pressure.
Advantages: Tight shutoff, durability, quick operation, minimal flow resistance.
Disadvantages: Not ideal for throttling, potential seat damage, higher cost.
Disc valves are valued for their compact size, lightweight, and cost-effectiveness. They offer good flow control capabilities and are suitable for throttling applications. However, the disc remaining in the flow path causes a pressure drop, which might not be acceptable in some systems. Also, they may not seal as tightly as ball valves, which can be a drawback in applications requiring bubble-tight shutoff.
Advantages: Cost-effective, suitable for throttling, compact design.
Disadvantages: Pressure drop due to disc in flow, less tight sealing.
Ball valves are generally low-maintenance due to their simple design and robust construction. They can withstand high pressures and temperatures, and the seats are designed to reduce wear. For critical applications, it's important to regularly inspect the valve for signs of seat leakage or wear on the ball surface. In the event of seat damage, the valve often allows for easy replacement of internal components without removing it from the pipeline.
Disc valves require minimal maintenance as well. Their fewer moving parts and straightforward operation reduce the likelihood of mechanical failure. However, because the disc is always in contact with the flow, it may be subject to erosion or corrosion, depending on the fluid characteristics. Regular checks ensure that the valve operates correctly and remains leak-free. Replacement parts are typically inexpensive and readily available.
Selecting a ball valve is ideal when a tight shutoff is required without significant pressure drop. They are suitable for high-pressure and high-temperature applications and where quick operation is necessary. In systems where pigging (cleaning pipelines using devices called pigs) is conducted, full bore ball valves are preferred because they allow pigs to pass through without obstruction.
Disc valves are the go-to option for large pipe diameters and where cost savings are essential. They are effective for throttling and flow regulation applications. If space is a constraint or the system tolerates a slight pressure drop, disc valves offer an efficient solution. Their ability to handle fluids with suspended solids also makes them suitable for certain industrial processes.
Recent advancements have improved ball valve performance and applicability. Developments in sealing materials allow for better performance in extreme temperatures and corrosive environments. The introduction of trunnion-mounted ball valves enhances operation in larger sizes and higher pressures by reducing the torque required for operation. Automation and smart valve technology enable remote operation and monitoring, increasing efficiency and safety.
| Advancement | Benefit |
|---|---|
| Enhanced Sealing Materials | Better performance in extreme conditions |
| Trunnion-Mounted Designs | Reduced operational torque for large valves |
| Automation Integration | Remote operation and monitoring capabilities |
Disc valves have evolved with the introduction of eccentric and double-offset designs, which improve sealing performance and reduce wear. High-performance disc valves can now handle higher pressures and temperatures, expanding their applicability. Materials science advancements have led to better corrosion-resistant materials, increasing valve longevity even in harsh environments.
Understanding the differences between ball valves and disc valves is essential for selecting the right valve for your specific application. While a ball valve offers excellent shutoff capabilities and minimal pressure drop, disc valves provide cost-effective solutions for flow regulation and throttling. Both types have unique advantages and potential drawbacks, and the choice largely depends on factors like application requirements, fluid characteristics, pressure conditions, and budget considerations. By carefully evaluating these factors, you can ensure optimal performance and longevity of your fluid control system.
1. Can a ball valve be used for throttling applications?
While a ball valve can technically be used for throttling, it's generally not recommended. Throttling can cause damage to the seats due to high-velocity flow and may lead to leakage. Ball valves are best suited for fully open or fully closed positions.
2. What are the main advantages of using a disc valve?
Disc valves are cost-effective, have a compact design, and are excellent for flow regulation and throttling applications. They are easy to install and maintain, making them a popular choice in various industries.
3. How does a ball valve ensure minimal pressure drop?
A ball valve, especially a full bore type, has a hole in the ball that matches the pipeline diameter. This alignment when fully open provides an unobstructed flow path, resulting in minimal pressure drop across the valve.
4. Are ball valves suitable for high-temperature applications?
Yes, ball valves are suitable for high-temperature applications. Materials and seat designs can be selected to handle elevated temperatures, making them versatile for various industrial processes.
5. What maintenance is required for disc valves?
Disc valves require minimal maintenance. Regular inspections for erosion or corrosion on the disc and seats are recommended. Replacement parts are generally inexpensive and easy to install if needed.
6. How do advancements in valve technology impact selection?
Advancements like improved sealing materials, automated controls, and enhanced designs increase the performance and applicability of both ball and disc valves. Staying updated with these technologies can lead to better efficiency and cost savings.
7. When should I choose a ball valve over a disc valve?
Choose a ball valve when you need a tight shutoff with minimal pressure drop and when the valve will be fully open or closed. They are ideal for high-pressure systems and when quick operation is required.
