In the world of industrial valves, globe valves and ball valves stand out as two of the most commonly used types. They play crucial roles in regulating the flow of fluids across various applications, from household plumbing systems to complex industrial processes. Understanding the differences between these two valve types is essential for engineers, technicians, and industry professionals who aim to optimize system performance and ensure operational safety.
This article delves deep into the design, operational principles, advantages, and limitations of globe valves and ball valves. By comparing their functionalities, we aim to provide a comprehensive analysis that assists in selecting the appropriate valve type for specific applications. Through detailed exploration and comparison, we will uncover how each valve type impacts fluid control, system efficiency, and maintenance requirements.
Globe valves are linear motion valves characterized by their spherical body shape and internal baffle that divides the inside of the valve. The valve's disc, which moves perpendicular to the seat, regulates fluid flow. This motion allows for precise control, making globe valves ideal for throttling applications. The valve body comes in various configurations, including T-style, angle, and Y-pattern designs, each suited for specific flow requirements.
The operational mechanism of a globe valve involves the movement of the disc away from the seat, allowing fluid to flow proportionally to the valve's opening. This design provides excellent throttling ability, enabling precise flow regulation. The flow direction in globe valves is typically indicated to ensure optimal performance and prevent issues like premature wear or water hammer.
Superior throttling capabilities for precise flow control.
Good shut-off characteristics due to the perpendicular movement of the disc to the seat.
Versatility in design allows for various configurations suitable for different applications.
Easy maintenance since the seat and disc are accessible from the top of the valve.
Despite their advantages, globe valves have certain limitations. The tortuous flow path results in higher pressure drops compared to other valve types. This pressure loss can affect system efficiency, especially in high-flow applications. Additionally, globe valves require more force to operate due to the increased fluid resistance, necessitating robust actuators for larger sizes.

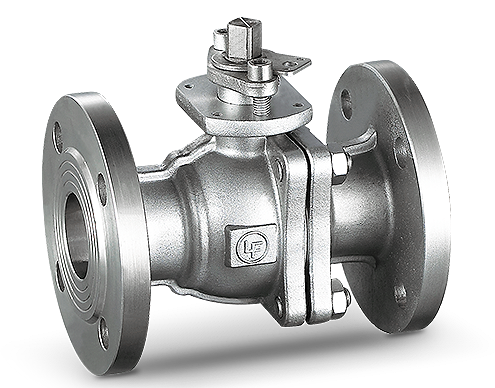

Ball valves feature a simple yet effective design comprising a spherical ball with a bore through its center. The ball is positioned between two seats and rotated 90 degrees via a stem connected to an actuator or handle. When the bore aligns with the pipeline, fluid flows freely; when rotated, the bore is perpendicular to the flow, effectively stopping it. This quarter-turn operation facilitates quick opening and closing of the valve.
The operation of a ball valve hinges on the rotation of the ball within the valve body. The spherical ball, usually made of metal or plastic, has a hole that, when aligned with the pipe, permits flow. Rotating the ball by 90 degrees causes the solid portion of the ball to block the flow path, effectively sealing the valve. This mechanism allows for rapid shut-off and is particularly useful in emergency situations requiring immediate isolation of fluid flow.
Quick quarter-turn operation enables rapid opening and closing.
Low pressure drop due to the straight flow path when fully open.
Excellent sealing capabilities provide reliable shut-off.
Durable design suitable for high-pressure and high-temperature applications.
Minimal maintenance requirements because of simple construction.
While ball valves are versatile, they are not ideal for throttling purposes. Partially open ball valves can cause the soft seats to erode due to high-velocity flow and pressure differentials. Moreover, in slurry applications or with fluids containing particulates, material can become trapped in the cavities around the ball, leading to wear or operational issues over time.
When it comes to flow regulation, globe valves outperform ball valves due to their superior throttling abilities. The linear motion of the globe valve's disc allows for fine adjustments in flow, making it suitable for applications requiring precise control. Conversely, ball valves are designed for on/off control with minimal pressure drop when fully open but are not recommended for flow modulation.
Globe valves inherently produce higher pressure drops because of their S-shaped flow path, which changes the direction of the fluid twice as it passes through the valve. This can lead to energy losses in the system. Ball valves, with their straight-through flow when open, exhibit minimal pressure drop, making them more efficient for applications where maintaining pressure is critical.
Ball valves excel in applications requiring rapid opening and closing due to their quarter-turn operation. This feature is essential in situations where immediate flow stoppage is necessary. Globe valves, requiring multiple turns to move the disc between open and closed positions, are better suited for applications where gradual flow changes are acceptable.
Both valve types offer effective sealing mechanisms, but ball valves generally provide a tighter seal due to the use of soft sealing materials and the 360-degree contact between the ball and seats. Globe valves, while offering good shut-off capabilities, may not achieve the same level of leak prevention, especially in high-pressure applications.
Globe valves are compatible with a wide range of media, including corrosive substances and high-viscosity fluids, due to their robust design and material options. Ball valves are also versatile but may face challenges when handling slurries or media containing solids, as particles can accumulate in the valve cavities, hindering performance.
Both globe valves and ball valves are manufactured using a variety of materials to suit different applications and media. Common materials include stainless steel, brass, bronze, cast iron, and various plastics like PVC and CPVC. The choice of material depends on factors such as temperature, pressure, and the chemical properties of the fluid being handled.
Material selection affects not only the valve's durability but also its compatibility with the fluid medium. For example, stainless steel valves offer superior resistance to corrosion and are suitable for aggressive media. Plastic valves are lightweight and resistant to a wide range of chemicals but may not withstand high temperatures or pressures. Understanding material properties is essential to ensure long-term valve performance and reliability.
Globe valves are widely used in industries where flow regulation is critical. Common applications include:
HVAC systems for temperature control.
Oil and gas industry for regulating fuel flows.
Chemical plants handling corrosive or high-temperature fluids.
Power plants for steam control in turbines.
Water treatment facilities for precise dosing of chemicals.
Ball valves find use in situations requiring reliable shut-off and quick operation. Typical applications include:
Residential and commercial plumbing systems.
Oil and gas pipelines, especially for emergency shut-off.
Pharmaceutical industries where contamination prevention is crucial.
Food and beverage processing for sanitary control.
Marine applications due to their robust design and corrosion resistance.
Selecting the appropriate valve type involves evaluating several factors:
Flow Control Requirements: Whether the application needs precise flow regulation or simply on/off control.
Pressure and Temperature Conditions: Maximum operating conditions that the valve must withstand.
Fluid Characteristics: Viscosity, corrosiveness, presence of solids, and hazard level of the fluid.
Operational Speed: How quickly the valve needs to open or close.
Maintenance Considerations: The ease of servicing the valve and availability of spare parts.
Installation Space: Physical constraints that may affect valve size and actuator type.
Cost is always a significant factor in valve selection. While ball valves may have a higher initial cost, their durability and low maintenance make them cost-effective over time. Globe valves, with their intricate design, may require more frequent maintenance, influencing long-term operational costs. It is essential to balance upfront expenses with lifecycle costs to make an economically sound decision.
Globe valves, due to their complex internal components, may require regular maintenance to ensure optimal performance. Wear and tear on the disc and seat can lead to leakage, necessitating periodic inspection and replacement of parts. However, their top-entry design allows for easy access to internal components without removing the valve from the pipeline.
Ball valves have fewer moving parts and a simpler design, resulting in lower maintenance requirements. The seats and seals are the primary components subject to wear. Regular operation of the valve can prevent material buildup and ensure longevity. In many cases, ball valves can provide reliable service over long periods with minimal attention.
Proper installation, operation within specified parameters, and routine maintenance are key to extending the life of both globe and ball valves. Using compatible materials for the valve components and the fluid medium reduces corrosion and degradation. Implementing preventive maintenance schedules helps in early detection of issues, preventing unexpected failures and costly downtime.
The valve industry has seen significant advancements in materials science, leading to the development of valves capable of handling more extreme conditions. Innovations include high-performance alloys and composites that offer enhanced corrosion resistance, higher strength-to-weight ratios, and improved temperature tolerance. These materials extend the applicability of globe and ball valves into more demanding environments.
Automation technology has revolutionized valve operations, with actuators and smart controls enabling precise management of fluid systems. Both globe and ball valves are now commonly equipped with electric, pneumatic, or hydraulic actuators, integrating them into automated process control systems. This technological integration enhances efficiency, safety, and flexibility in various industrial applications.
Environmental regulations have prompted the development of valve designs that minimize emissions and prevent leaks of hazardous substances. Improved sealing technologies and fugitive emission compliant designs are now standard in many valve products. These advances contribute to safer operations and reduced environmental impact, aligning with global sustainability goals.
Choosing between a globe valve and a ball valve depends on the specific requirements of the application. Globe valves excel in situations requiring precise flow control, making them ideal for throttling applications despite their higher pressure drops. Ball valves offer quick operation, excellent sealing capabilities, and minimal pressure loss, making them suitable for on/off control in a wide range of industries.
Understanding the fundamental differences, advantages, and limitations of each valve type is crucial for making informed decisions that enhance system performance, safety, and cost-effectiveness. As technology advances, both globe and ball valves continue to evolve, offering improved functionality and meeting the increasing demands of modern industrial processes.
1. Can ball valves be used for throttling applications?
While ball valves are primarily designed for on/off control, they are not recommended for throttling purposes. Partially open ball valves can cause damage to the seats due to high-velocity flow and may not provide precise flow regulation. Globe valves are more suitable for applications requiring throttling.
2. What factors affect the pressure drop in globe valves?
The pressure drop in globe valves is influenced by their design, which forces the fluid to change direction twice as it passes through the valve. Factors such as valve size, flow rate, fluid viscosity, and the degree of valve opening also impact the overall pressure drop in the system.
3. How do material choices impact valve performance?
Material selection is critical for valve performance as it determines the valve's ability to withstand pressure, temperature, and chemical exposure. Using materials compatible with the fluid medium prevents corrosion and degradation, ensuring longevity and reliable operation of the valve.
4. Are ball valves suitable for high-temperature applications?
Ball valves can be used in high-temperature applications if they are constructed with appropriate materials, such as metals capable of withstanding elevated temperatures. Metal seats may replace soft seats to handle higher temperatures, though this may affect the sealing performance.
5. What are the maintenance requirements for globe valves?
Globe valves require regular maintenance due to their more complex internal components. Routine inspections should focus on the disc and seat for signs of wear or damage. Top-entry designs facilitate easier maintenance by allowing access to internal parts without removing the valve from the pipeline.
6. How does automation enhance valve operation?
Automation adds precision and efficiency to valve operation through the use of actuators and control systems. It allows for remote operation, real-time monitoring, and integration into automated process control systems, improving safety and reducing the potential for human error.
7. Why is valve selection important in system design?
Selecting the correct valve type is crucial for system efficiency, safety, and longevity. The right valve ensures proper flow control, minimizes energy losses, reduces maintenance costs, and prevents operational issues. Careful consideration of application-specific requirements leads to optimized system performance.
