In the vast realm of fluid control devices, understanding the nuances between different types of valves is crucial for both industrial applications and everyday usage. Among the myriad of valves available, the ball valve and the float valve stand out due to their widespread use and distinctive functionalities. This article delves deep into the fundamental differences between these two valve types, providing a comprehensive analysis that encompasses their design, operation principles, applications, advantages, and limitations. By elucidating these aspects, we aim to equip engineers, technicians, and industry professionals with the knowledge necessary to make informed decisions in selecting the appropriate valve for specific applications.
Valves are integral components in fluid handling systems, serving as control points that regulate the flow and pressure of liquids and gases. The selection of a valve type hinges on various factors, including the nature of the fluid, operational requirements, environmental conditions, and maintenance considerations. Two prevalent types of valves are the ball valve and the float valve, each exhibiting unique characteristics that make them suitable for specific scenarios.
A ball valve is a quarter-turn rotational motion valve that uses a hollow, perforated, and pivoting ball to control fluid flow through it. When the valve handle is turned 90 degrees, the hole aligns with the flow direction, allowing fluid to pass through; turning it another 90 degrees positions the hole perpendicular to the flow, effectively stopping it. This simple yet efficient mechanism makes ball valves highly reliable for on/off control applications.
Float valves, on the other hand, are mechanical devices that use a floating element to open or close the valve in response to changes in liquid level. Commonly used in tanks and reservoirs, the valve operates automatically to maintain a preset liquid level, making it essential for applications requiring continuous level control without human intervention.
The core component of a ball valve is the spherical ball with a central bore. The valve body houses the ball, and seats are positioned on either side to provide sealing when the valve is closed. Materials commonly used for the valve body include metals like brass, stainless steel, and plastics like PVC, depending on the application requirements. The seats are often made from soft materials like PTFE to ensure a tight seal.
Ball valves come in various body configurations: single-piece, two-piece, three-piece, split-body, top-entry, and welded. Each design offers different advantages in terms of maintenance accessibility, strength, and suitability for high-pressure environments. For instance, three-piece ball valves allow for easy cleaning and maintenance without removing the entire valve from the pipeline.
Float valves consist of a valve body connected to a float mechanism, which is typically a hollow, buoyant object like a sphere or cylinder. As the liquid level rises, the float lifts, causing the valve to close. Conversely, as the liquid level drops, the float descends, opening the valve to allow more fluid to enter. The valve body is usually made of corrosion-resistant materials to withstand continuous exposure to fluids, with brass and stainless steel being popular choices.
The float mechanism can be connected to the valve via a lever arm or directly integrated into the valve assembly. Designs vary from simple pilot-operated mechanisms to more complex configurations that allow for precise control over the fluid level.
Ball valves operate based on rotary motion. The handle or actuator turns the ball within the valve body, aligning or misaligning the bore with the pipeline. This quarter-turn operation allows for quick opening and closing, making ball valves ideal for applications requiring rapid shutoff. The design ensures minimal pressure drop when fully open, as the bore can be sized to match the pipeline diameter, providing an unobstructed flow path.
Advanced ball valve designs include features like vented balls for cryogenic applications, multi-port configurations for flow direction control, and trunnion-mounted balls for handling high-pressure conditions. The floating ball design relies on line pressure to press the ball against the downstream seat, enhancing sealing performance.
Float valves function through a mechanical response to liquid level changes. The buoyant float rises and falls with the fluid surface, translating this movement via linkage to the valve mechanism. When the desired maximum level is reached, the float moves to a position that closes the valve, stopping the inflow. As the fluid is consumed or evaporates, the level decreases, causing the float to lower and open the valve, allowing more fluid to enter.
This automatic operation does not require external power or manual intervention, making float valves highly reliable for maintaining constant fluid levels. Some designs allow for adjustable settings to control the level at which the valve opens or closes, providing flexibility in various applications.
Ball valves are versatile and used across numerous industries. In the oil and gas sector, they are employed in fuel systems, pipelines, and distribution networks due to their ability to handle high pressures and temperatures. Chemical and petrochemical industries utilize ball valves for their tight sealing and compatibility with various fluids. Additionally, they are found in residential and commercial plumbing, HVAC systems, and firefighting equipment.
The food and beverage industry uses sanitary ball valves made from stainless steel to meet hygiene standards. Furthermore, ball valves are essential in applications where quick shutoff is required, such as emergency systems and safety mechanisms.
Float valves are predominantly used in systems where automatic level control is necessary. Common applications include water tanks, cooling towers, sump pumps, and toilet cisterns. In industrial settings, float valves maintain fluid levels in boilers, condensate tanks, and storage vessels.
Agricultural operations use float valves in irrigation systems and livestock water troughs to ensure a continuous supply of water without the risk of overflow. The simplicity and reliability of float valves make them ideal for remote or unattended installations where consistent liquid levels must be maintained.
Ball valves offer several benefits:
Durability and Reliability: Capable of performing well after many cycles and providing reliable sealing over long periods of disuse.
Quick Operation: Facilitates rapid opening and closing, essential for emergency shutoff applications.
Minimal Pressure Drop: When fully open, they allow unrestricted flow, minimizing energy losses in the system.
Versatility: Suitable for a wide range of pressures, temperatures, and media types, including gases, liquids, and slurries.
Ease of Maintenance: Designs like the three-piece ball valve enable easy cleaning and part replacement without disturbing the pipeline.
Despite their advantages, ball valves have some limitations:
Poor Throttling Characteristics: Not ideal for flow regulation over a range; partial opening can damage the seats and cause leakage.
Trapped Fluid: When closed, fluid can be trapped in the ball’s cavity, which can be problematic if the fluid expands due to temperature changes.
Not Suitable for Slurries: Suspended particles can cause wear or become trapped, leading to valve failure.
Float valves are advantageous in the following ways:
Automatic Operation: Regulate fluid levels without manual intervention or external power sources.
Simple Design: Fewer moving parts result in lower maintenance requirements and increased reliability.
Cost-Effective: Generally less expensive due to simplicity and use of fewer components.
Versatile Adjustment: Easily adjustable to maintain different fluid levels as needed.
Float valves also present certain challenges:
Susceptibility to Wear: Mechanical parts can wear out over time, especially in harsh environments.
Limited Pressure Handling: Not suitable for high-pressure applications; excessive pressure can damage the float mechanism.
Potential for Blockage: Debris in the fluid can obstruct the valve operation, leading to overflow or insufficient fluid levels.
Slower Response: Compared to ball valves, float valves react more slowly to changes in fluid level.
Choosing between a ball valve and a float valve depends on the specific requirements of the application.
Ball valves are preferable when:
Quick shutoff is necessary.
There is a need for tight sealing with minimal leakage.
High-pressure and high-temperature conditions are present.
The fluid is clean, and free from suspended particles.
Space is limited, and a compact valve design is beneficial.
For instance, in a high-pressure ball valve application within a chemical processing plant, the valve’s ability to handle aggressive media and provide reliable shutoff is crucial.
Float valves are ideal when:
Automatic level control is required without electronic sensors.
The system operates under low to moderate pressure.
Simplicity and low maintenance are priorities.
There is a need to prevent tanks from overflowing or running dry.
An example is in a water storage tank supplying irrigation systems, where a float valve ensures the tank remains full without constant monitoring.
Ball valves generally require minimal maintenance due to their robust design. Regular inspections should focus on:
Checking for leaks around the stem and seats.
Ensuring the handle or actuator operates smoothly.
Inspecting for corrosion or damage to the valve body and components.
For valves in critical applications or severe conditions, periodic disassembly and inspection of the ball and seats may be necessary. Lubrication of moving parts can prolong valve life and maintain ease of operation.
Float valves require regular maintenance to ensure reliable operation:
Inspecting the float for buoyancy loss due to leaks or damage.
Cleaning the valve and float mechanism to remove debris and buildup.
Adjusting the float arm to maintain the correct fluid level.
Replacing worn or corroded components promptly.
Regular maintenance is especially important in environments with high sediment levels or corrosive fluids, as these can accelerate wear and impair valve function.
Recent developments in ball valve technology focus on enhancing performance, durability, and automation:
Advanced Materials: Use of high-grade alloys and composites to handle more aggressive media and extreme temperatures.
Improved Sealing: Enhanced seat designs and materials reduce leakage and extend service life.

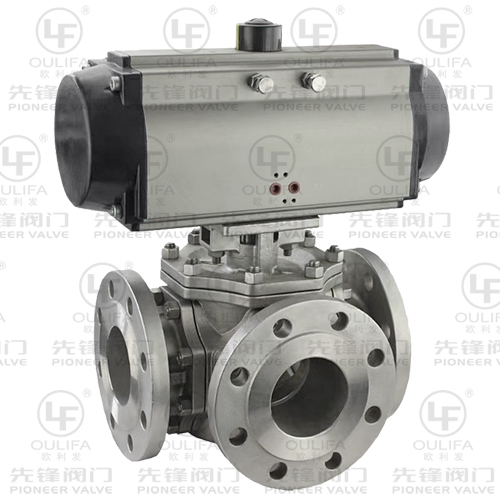

Automation Integration: Ball valves equipped with actuators and smart controls enable integration into automated systems for remote monitoring and operation.
Reduced Emissions: Low-emission designs minimize fugitive emissions, meeting stringent environmental regulations.
While the basic principle of float valves remains unchanged, enhancements include:
Composite Materials: Use of corrosion-resistant plastics and composites reduces weight and increases lifespan.
Integrated Sensors: Combining float mechanisms with electronic sensors and controls for more precise level management.
Modular Designs: Simplified assembly and disassembly for easier maintenance and part replacement.
Customization: Adjustable settings and interchangeable components allow for tailoring to specific application needs.
Both ball valves and float valves play roles in environmental protection and safety:
Preventing Leaks: High-quality sealing in ball valves prevents the release of hazardous fluids.
Overflow Protection: Float valves prevent tank overflows, reducing the risk of environmental contamination.
Compliance: Advanced valve designs help meet environmental regulations and industry standards.
Safety Systems: Automated valves can be integrated into safety shutdown systems to promptly address abnormal conditions.
Understanding the differences between ball valves and float valves is essential for selecting the appropriate valve for a given application. Ball valves offer reliable, quick shutoff capabilities suitable for high-pressure and high-temperature environments, while float valves provide automatic level control crucial for maintaining consistent fluid levels without manual intervention. Both types of valves have their unique advantages and limitations, and advancements in technology continue to enhance their performance and applicability. By carefully considering the operational requirements, environmental conditions, and maintenance capabilities, engineers and technicians can make informed decisions, ensuring system efficiency, safety, and longevity.
For further details on selecting the right ball valve for your specific needs, it is recommended to consult with manufacturers and refer to industry standards and guidelines.
A ball valve is a quarter-turn valve that uses a rotating ball with a bore to control flow, ideal for on/off control in pipelines. A float valve uses a buoyant float mechanism to automatically control the fluid level in a tank or system by opening or closing the valve based on the liquid level.
While ball valves can be partially opened to regulate flow, they are generally not recommended for throttling applications because partial opening can cause seat damage and leakage. They are best suited for full open or full closed positions.
Float valves are preferred in applications requiring automatic fluid level control without manual intervention or external power, such as in water tanks, reservoirs, and irrigation systems. They maintain preset liquid levels efficiently and reliably.
Material selection for ball valves affects their compatibility with different fluids, pressure and temperature ratings, and durability. Metals like stainless steel offer corrosion resistance and strength, while plastics like PVC provide cost-effective solutions for less demanding applications.
Regular inspections to check for debris, wear, and correct operation are essential. Cleaning the valve and float mechanism, adjusting settings as needed, and promptly replacing worn components help ensure reliable performance and extend the valve's lifespan.
Yes, modern advancements include the use of superior materials for better corrosion resistance, enhanced sealing designs to prevent leaks, integration of automation and smart controls for remote operation, and designs that reduce emissions to meet environmental standards.
Environmental considerations such as the potential for leaks, emissions, and fluid contamination influence valve choice. Ball valves provide tight sealing to prevent leaks of hazardous substances, while float valves help prevent overflows and spills by maintaining proper fluid levels, both contributing to environmental protection.
