Ever wondered how industries control massive water flows or regulate chemicals in pipelines? The answer often lies in a simple yet ingenious device called a butterfly valve. It's like having a smart door inside your pipes – one that can open, close, or partially block flow with just a quarter turn. Understanding how these valves work helps engineers, technicians, and even curious minds grasp one of the most common flow control solutions in modern industry.
We'll explore the mechanics behind these versatile valves, from their basic operation to advanced designs. You'll discover why they're everywhere – from your local water treatment plant to massive oil refineries.
Picture a disc sitting inside a pipe. That's essentially what you're looking at with a butterfly valve. The magic happens when you rotate this disc just 90 degrees – it goes from completely blocking the flow to letting everything through.
Here's how it works:
| Position | Disc Orientation | Flow Status |
|---|---|---|
| 0° | Perpendicular to flow | Fully closed |
| 45° | Angled | 50% flow |
| 90° | Parallel to flow | Fully open |
When the disc sits perpendicular to the pipe, it acts like a wall. Nothing gets through. Rotate it parallel, and fluid flows around both sides of the disc. It's that simple! The disc never leaves the flow path though – it's always there, even when fully open.
Butterfly valves belong to the quarter-turn family, just like ball valves and plug valves. They all share the same basic idea – rotate something 90 degrees to control flow.
Key differences:

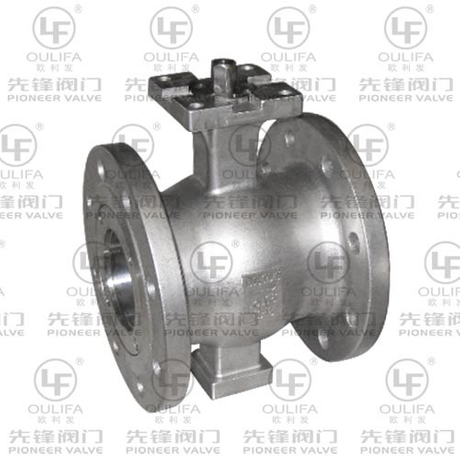

Ball valves: Use a sphere with a hole through it
Plug valves: Use a tapered or cylindrical plug
Butterfly valves: Use a flat disc
Why choose butterfly valves? They're lighter, cheaper, and take up less space. A 24-inch butterfly valve weighs a fraction of what a similar ball valve would. They also close faster – perfect when you need quick shut-off in emergencies.
Think of the valve body as the protective shell. It does three main jobs:
Houses everything – Keeps the disc, stem, and seat safe from external damage
Connects to pipes – Uses flanges to link up with your pipeline
Handles pressure – Built tough enough to withstand system forces
The body material matters too. Cast iron works great for water systems. Need something for aggressive chemicals? Stainless steel or special alloys step up to the plate.
The disc is the star of the show. It's the gatekeeper that decides how much fluid passes through. Unlike a gate valve that lifts completely out of the way, the butterfly disc stays put and just rotates.
Flow control characteristics:
0-30°: Minimal flow, high turbulence
30-60°: Moderate flow, good control
60-90°: Maximum flow, lowest resistance
The disc shape affects performance too. Some have special profiles to reduce turbulence. Others use streamlined designs for better flow characteristics. Remember – the disc always causes some pressure drop because it never leaves the flow path.
The stem is like the messenger between the outside world and the disc. Turn the handle outside, and the stem carries that rotation to the disc inside.
Two main designs exist:
| Design Type | How It Works | Best For |
|---|---|---|
| One-piece | Stem goes straight through disc | Smaller valves, lower pressure |
| Two-piece | Split stem with separate connections | Larger valves, higher torque |
O-rings wrap around the stem where it passes through the body. They're the unsung heroes preventing leaks. Multiple O-rings create backup seals – if one fails, others keep working.
The seat creates the seal when the valve closes. It's where the disc edge meets the valve body. Two main types dominate the market:
Soft seats (Elastomers like EPDM, PTFE):
Temperature range: -100°F to 450°F
Provide bubble-tight seal
Lower pressure ratings
Self-lubricating
Metal seats (Stainless steel, Stellite):
Handle extreme temperatures (up to 1000°F)
Resist wear and erosion
Higher pressure capability
May have minor leakage
Let's walk through what happens when you open a butterfly valve:
Apply torque – You turn the handle or actuator starts
Stem rotates – It begins turning clockwise (usually)
Disc starts moving – The leading edge lifts away from the seat
Flow begins – A small gap opens, fluid starts trickling through
Progressive opening – More rotation = more flow area
Full open – At 90°, the disc aligns with flow
The first 10-20 degrees require the most force. Why? You're breaking the seal and fighting against full system pressure.
Closing reverses everything:
Counter-rotation begins – Handle turns opposite direction
Flow reduces – The disc starts blocking more area
Turbulence increases – Flow becomes choppy as space narrows
Near closure – Last 10 degrees are critical
Seal engagement – Disc edge compresses against seat
Complete shutoff – No flow passes
Smart operators close slowly near the end. Slamming it shut causes water hammer – dangerous pressure spikes that can damage pipes.
Throttling means holding the valve partially open to control flow rate. It works, but there's a catch – butterfly valves aren't ideal throttlers.
Why throttling can be problematic:
Creates turbulence and vibration
Accelerates disc and seat wear
Causes noise at certain positions
May lead to cavitation
Best practice? Use them mostly full open or full closed. If you need precise flow control, consider other valve types or use them at 30-70% open positions where they're most stable.
Zero offset means everything lines up perfectly. The stem runs right through the disc center. It's the simplest design.
How it operates:
Disc rotates while constantly touching the seat
Rubber seat flexes to create seal
360° rotation possible (though not used)
Friction throughout entire movement
These work great for:
Water service up to 250 psi
Temperatures below 400°F
Non-critical applications
Budget-conscious projects
The downside? Constant rubbing wears out seats faster. They'll need replacement every few years in busy systems.
Double offset valves move the stem in two directions – behind the disc face and off-center from the pipe axis. This creates a cam effect.
The cam action advantage:
Disc lifts away from seat after first 10°
No rubbing during most of rotation
Seat lasts much longer
Handles higher pressures (up to 1440 psi)
Picture opening a car door. It swings away from the frame instead of sliding along it. Same idea here. The disc "swings" clear of the seat, reducing wear dramatically.
Industries love these for:
Chemical processing
Steam service
High-cycle applications
Systems needing tight shutoff
Triple offset takes it further with a third, angular offset. The seating surface becomes conical – like a funnel shape.
What makes them special:
| Feature | Benefit | Application |
|---|---|---|
| Zero friction | No rubbing except final contact | High-cycle service |
| Metal seats | Handles extreme conditions | Fire-safe systems |
| Precise machining | Bubble-tight shutoff | Critical isolation |
| Bi-directional | Works both flow directions | Flexible installation |
They're the premium choice for:
Superheated steam
Cryogenic service
Aggressive chemicals
Offshore platforms
Yes, they cost more. But they last longer and seal better in harsh conditions.

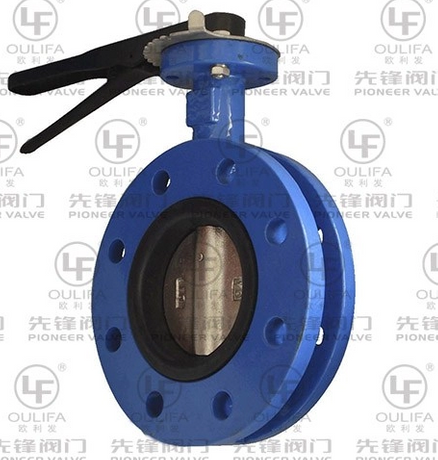

Small butterfly valves often use simple lever handles. Pull it 90 degrees, and you're done. Easy for valves up to about 6 inches.
Larger valves need help:

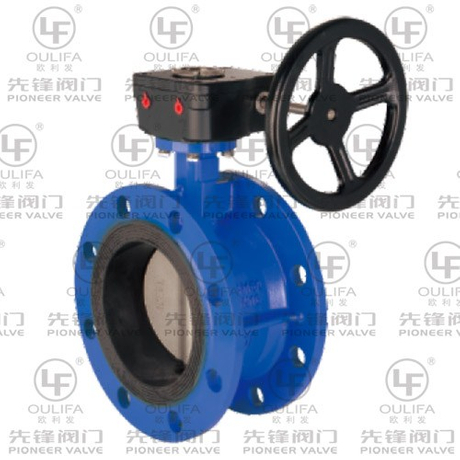

Handwheel with gearbox:
Worm gear provides mechanical advantage
Multiple handwheel turns = 90° disc rotation
Self-locking prevents unwanted movement
Reduces operator effort significantly
Extension spindles for buried valves:
Long rod extends to ground level
Square nut at top for T-handle operation
Allows operation without excavation
Common in water distribution systems
The gearbox ratio determines effort needed. A 40:1 ratio means 40 handwheel turns for full operation. Higher ratios = easier turning but slower operation.
Modern plants automate everything. Butterfly valves are no exception.

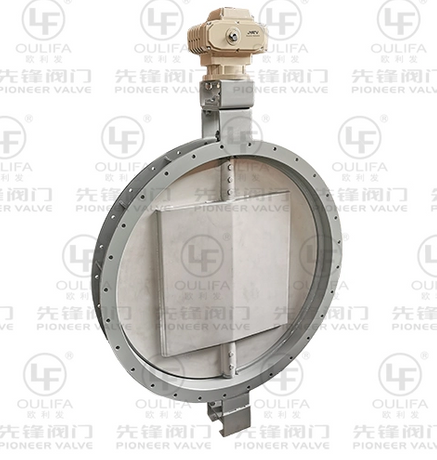

Electric actuators:
Use motors to turn the stem
Accept 4-20mA control signals
Provide precise positioning
Include position feedback
Pneumatic actuators:
Compressed air moves pistons
Fast operation (under 1 second possible)
Fail-safe options (spring-return)
Simple and reliable
Hydraulic actuators:
For massive torque requirements
Used on huge valves (over 48 inches)
Smooth, powerful operation
Common in hydroelectric plants
Each type fits different needs:
| Actuator Type | Speed | Precision | Cost | Best Application |
|---|---|---|---|---|
| Electric | Moderate | Excellent | High | Process control |
| Pneumatic | Fast | Good | Medium | On/off service |
| Hydraulic | Moderate | Good | Highest | Large valves |
Wafer valves sandwich between two flanges. Long bolts pass around the valve body, clamping everything together.
Installation process:
Position valve between flanges
Insert gaskets on both sides
Thread bolts through both flanges
Tighten evenly in star pattern
Compress gaskets for seal
Operational characteristics:
Lightest weight option
Lowest cost
Compact installation
Can't handle dead-end service
Why can't they work at pipe ends? Remove one flange, and there's nothing holding the valve. Pressure would blow it right out!
Lug valves have threaded holes around the body. Each flange bolts directly to the valve.
How they differ in operation:
Each pipeline side connects independently
Can hold pressure from either direction
Allows downstream maintenance without full shutdown
Works for dead-end service
Pressure rating changes:
Between two flanges: Full rating (say 150 psi)
Dead-end service: Reduced rating (maybe 75 psi)
The independent connections make them versatile. Fix downstream pipes while upstream stays pressurized. That flexibility costs more but saves shutdown time.
These valves come with their own flanges attached. They're the heavy-duty option.
Operational advantages:
Rock-solid mounting
No alignment issues
Handles vibration better
Supports valve weight independently
Large water mains love these. A 60-inch valve weighs tons. Double flanges distribute that weight properly. They also resist pipeline forces better – important when water hammer strikes.
Installation steps:
Align valve flanges with pipe flanges
Insert gaskets
Bolt each flange separately
No through-bolts needed
Strongest connection possible
Every butterfly valve causes pressure drop. It's physics – the disc blocks part of the flow path even when open.
What causes pressure drop:
Disc thickness occupies space
Flow must split around disc
Turbulence at disc edges
Flow path isn't straight through
Typical pressure drops:
| Valve Size | Flow Rate | Pressure Drop |
|---|---|---|
| 4 inch | 500 GPM | 2-3 psi |
| 12 inch | 5000 GPM | 3-5 psi |
| 24 inch | 20000 GPM | 4-7 psi |
Compare that to ball valves (almost zero drop) or globe valves (10+ psi). Butterfly valves sit in the middle – acceptable drop for most systems.
The disc angle directly controls how much flows through. But it's not linear.
Flow vs. disc position:
0-10°: Almost no flow
10-30°: Rapid flow increase
30-60°: Good control range
60-90°: Diminishing gains
This non-linear response makes precise throttling tricky. Small movements near closed cause big flow changes.
Bi-directional capability:Most butterfly valves handle flow from either direction. The disc seals the same way regardless. Some special designs prefer one direction – check manufacturer specs.
Why they can't be pigged:Pipeline pigs are cleaning devices pushed through pipes. They need full bore access. The butterfly disc blocks the way – pigs can't pass. If your system needs pigging, use ball valves instead.
Cavitation happens when liquid pressure drops below vapor pressure. Bubbles form, then violently collapse.
How it affects operation:
Creates noise (sounds like gravel)
Erodes disc and seat surfaces
Causes vibration
Reduces flow capacity
When it occurs:
High pressure drops
Throttling service
Oversized valves
High fluid temperatures
Prevention strategies:
Size valves correctly
Avoid extended throttling
Use anti-cavitation trim
Install in proper location
Butterfly valves need significant force to operate. The bigger the valve, the more torque required.
Factors increasing torque needs:
Larger valve sizes
Higher pressures
Tight sealing requirements
Fluid viscosity
Seat material type
Typical torque values:
| Valve Size | Pressure | Required Torque |
|---|---|---|
| 3 inch | 150 psi | 50 ft-lbs |
| 12 inch | 150 psi | 600 ft-lbs |
| 24 inch | 150 psi | 3000 ft-lbs |
Gearboxes multiply human effort. A 40:1 gearbox turns 10 ft-lbs input into 400 ft-lbs output. Actuators provide even more force when needed.
Butterfly valves seal well at low pressures. High pressures challenge them more than other valve types.
Why sealing degrades:
Seat wear from cycling
Temperature effects on materials
Chemical attack on elastomers
Disc deflection under pressure
Temperature impacts:
Rubber seats soften when hot
Cold makes them brittle
Metal seats handle extremes better
Thermal cycling causes problems
Regular maintenance checks catch seal problems early. Look for:
Visible leakage
Increased operating torque
Difficulty achieving full closure
Damaged seat surfaces
Water plants rely heavily on butterfly valves. They're everywhere – from intake structures to distribution mains.
Primary functions in water systems:
Isolate treatment tanks
Control flow between processes
Regulate pump discharge
Emergency shutdown capability
Why they work well here:
Handle large volumes efficiently
Resist corrosion with proper coating
Quick operation for emergencies
Cost-effective for large sizes
A typical treatment plant uses hundreds. They control everything from raw water intake to finished water distribution. Sizes range from 2 inches in chemical feed lines to 96 inches in main transmission pipes.
Chemical plants need reliable flow control. Butterfly valves deliver, but material selection becomes critical.
Common applications:
Reactor vessel isolation
Tank farm operations
Cooling water systems
Waste treatment processes
Material considerations:
| Chemical Type | Recommended Material | Avoid |
|---|---|---|
| Acids | Hastelloy, PTFE-lined | Carbon steel |
| Caustics | Stainless steel | Aluminum |
| Solvents | Stainless steel | EPDM seats |
| Chlorine | PVC, CPVC | Metal seats |
Temperature and concentration matter too. What works for dilute acid at room temperature fails with concentrated acid at 200°F.
Building systems use butterfly valves for air and water control. They balance comfort with energy efficiency.
HVAC applications:
Chilled water distribution
Condenser water control
Air handling dampers
Steam condensate systems
Why they fit HVAC needs:
Compact for tight mechanical rooms
Automated for building management
Reliable for continuous operation
Available in various materials
Fire protection systems also use them. They provide quick isolation during emergencies. Some include supervisory switches to signal valve position to alarm systems.
Manual butterfly valves open in seconds. Just pull the lever 90 degrees – done! Automated versions vary widely.
Typical operation times:
Manual lever: 1-3 seconds
Handwheel/gearbox: 30-120 seconds
Pneumatic actuator: 0.5-5 seconds
Electric actuator: 15-60 seconds
Hydraulic actuator: 5-30 seconds
Speed depends on size too. A 3-inch pneumatic valve snaps open instantly. A 48-inch electric valve might take two minutes. Emergency systems use pneumatics for speed. Process control favors electric for precision.
They can throttle, but it's not their strength. Think of them as better switches than dimmers.
Throttling limitations:
Best between 30-70% open
Avoid long-term partial opening
Watch for cavitation signs
Expect increased maintenance
Better alternatives for throttling:
Globe valves: Designed for it
Ball valves (V-port): Good compromise
Control valves: Ultimate precision
If you must throttle with butterfly valves, monitor them closely. Replace seats more often. Listen for unusual noise. Check for excessive vibration.
Temperature and pressure dramatically impact how butterfly valves work. Every component has limits.
Temperature effects:
| Component | Cold Effects | Heat Effects |
|---|---|---|
| Rubber seats | Become brittle | Soften, deform |
| Metal parts | Contract | Expand |
| Lubricants | Thicken | Thin out |
| Actuators | Slower operation | Seal degradation |
Pressure considerations:
Higher pressure = more torque needed
Pressure ratings drop at high temperatures
Dead-end service cuts rating in half
Vacuum service needs special seats
Always check the pressure-temperature chart. A valve rated for 285 psi at 100°F might only handle 200 psi at 300°F.
Butterfly valves operate on a beautifully simple principle – rotate a disc 90 degrees to control flow. This quarter-turn operation makes them quick, reliable, and cost-effective for countless applications. From the basic concentric design to sophisticated triple-offset versions, each type serves specific needs.
They excel at on-off service, handle large flows economically, and integrate easily with automation. Yes, they have limitations – pressure drop, throttling challenges, and sealing constraints. But when properly selected and maintained, butterfly valves provide years of dependable service.
Understanding how they work helps you choose the right valve for your application. Consider the pressure, temperature, media, and cycling requirements. Match the valve type to your needs. With this knowledge, you'll make informed decisions that keep systems flowing smoothly.
